TerraMaster F5-422 5-Bay 10GbE NAS – Excellent Value for 10GbE SMB NAS Users

5

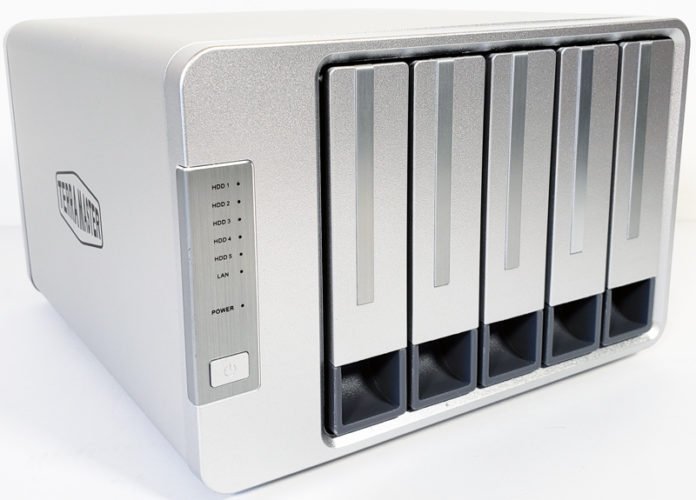

TerraMaster F5 422
TerraMaster F5 422

The new TerraMaster F5-422 is the first 10GbE solution we have looked at from the company. Like the F4-421 4-Bay NAS we reviewed previously, the F5-422 features a quad-core Intel Celeron J3455 processor and 4GB RAM. With the F5-422 we get an additional drive bay bringing the total to five, and a 10GbE network port. Designed for SMB and advanced users and offers automatic scheduled backups, snapshots, multi-RAID array security. The F5-422 also includes a built-in HDMI port for direct monitor attachment for media uses. Users can also use SSD caching to optimize read/write operations. That feature, however, uses a drive bay lowering available capacity.

TerraMaster F5-422 5-Bay 10GbE NAS Overview

Keeping it in the family, the TerraMaster F5-422 5-Bay NAS looks similar to the F4-421 4-bay NAS we reviewed. Some key exceptions are the additional drive bay and 10GbE network. We see the same TOS operating system and accessory loadout as our previous reviews showed.

After removing the F5-422 from its packing material, we can now take a look at the NAS.

TerraMaster F5 422 Front
TerraMaster F5 422 Front

The enclosure of the F5-422 looks identical to other TerraMaster NAS’s, including the F4-421 that we have reviewed before, except for the 5-Bays. Looking at the front, we find a silver power button on the left side with status LED’s above.

The back of the NAS has 2x USB 3.0 ports, both 2x RJ-45 1GbE and 1x RJ-45 10GbE LAN ports, a HDMI port, and the power connector.

TerraMaster F5 422 Back
TerraMaster F5 422 Back

Two large 80mm cooling fan takes up the bulk of the space which provides the primary cooling for the NAS.

Accessories included with the F5-422 include:

  • Quick Installation Guide
  • AC Power Adapter
  • AC Power Cord
  • 2x RJ-45 LAN CAT6 Cables
  • 2x package of assorted hard drive mounting screws
  • One small screwdriver

Let us move on to see how to install hard drives into our unit.

Each drive bay can accommodate either a 3.5 in or 2.5 in hard drive or solid-state drive with capacities up to 16TB in size for a total of up to 80TB raw capacity.

TerraMaster F5 422 Drive Tray
TerraMaster F5 422 Drive Tray

The drive trays are not tool-less and will require mounting screws to secure the HDD to the drive tray. After mounting, they slide into the NAS and lock in place.

Let us take a look at the TOS NAS management software before moving on to testing the F5-422.
