Supermicro X10 Xeon E5-2600 V3 Haswell-EP Motherboards Online

by Patrick KennedySeptember 7, 2014

Ahead of the anticipated announcement from Intel scheduled for September 8, 2014, Supermicro has released details of its new motherboards on its website. The Intel Xeon E5-2600 V1 and V2 motherboards were part of Supermicro’s X9 series. Supermicro’s website lists the new X10 series motherboards as supporting the LGA2011-R3 processor for Haswell-EP based Intel Xeon E5-2600 V3 processors.

Expect much more coverage of the launch tomorrow. We have been working for the last month with the new Intel Xeon E5-2600 V3 platforms and they are going to be absolute game changers. For now, here are the Supermicro dual socket X10 offerings:

Product Model Quick View Form Factor Memory HDD Other Key Features
• X10DAi
NEW
X10DAi E-ATX 1TB DDR4
16 DIMM slots
10 SATA3 Audio
Intel i210 GbE
Workstation
• X10DAC
NEW
X10DAC E-ATX 1TB DDR4
16 DIMM slots
8 SAS3, 10 SATA3 Audio
LSI 3008 SAS3
Workstation
• X10DRi
NEW
X10DRi E-ATX 1TB DDR4
16 DIMM slots
10 SATA3 2 GbE
• X10DRi-T
NEW
X10DRi-T E-ATX 1TB DDR4
16 DIMM slots
10 SATA3 2 10GBase-T
• X10DRi-LN4+
NEW
X10DRi-LN4+ EE-ATX 1.5TB DDR4
24 DIMM slots
10 SATA3 4 GbE
• X10DRi-T4+
NEW
X10DRi-T4+ EE-ATX 1.5TB DDR4
24 DIMM slots
10 SATA3 4 10GBase-T
• X10DRC-LN4+
NEW
X10DRC-LN4+ EE-ATX 1.5TB DDR4
24 DIMM slots
8 SAS3, 10 SATA3 4 GbE
LSI 3108 SAS3

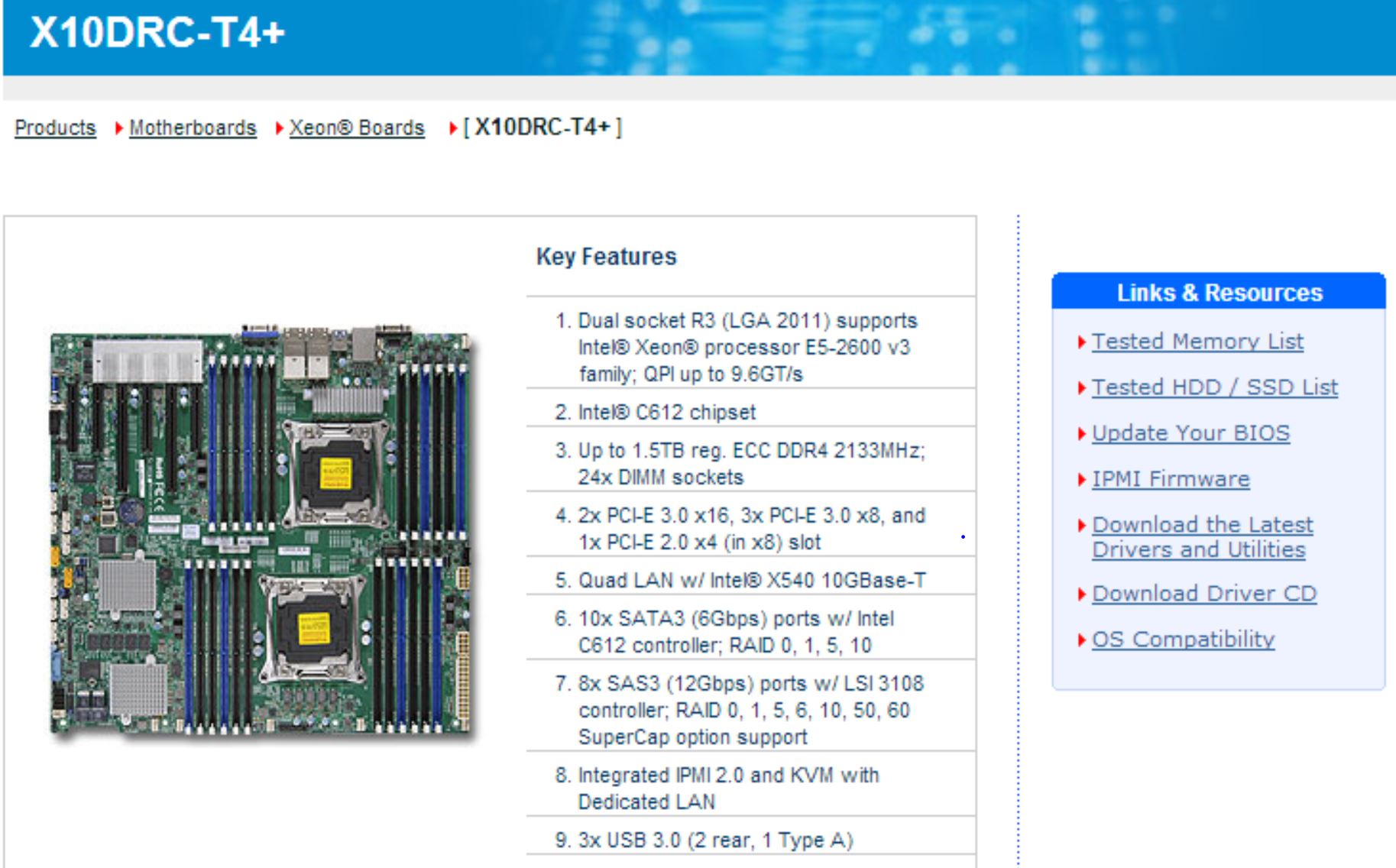

• X10DRC-T4+
NEW
X10DRC-T4+ EE-ATX 1.5TB DDR4
24 DIMM slots
8 SAS3, 10 SATA3 4 10GBase-T
LSI 3108 SAS3
• X10DRL-i
NEW
X10DRL-i ATX 512GB DDR4
8 DIMM slots
10 SATA3 Intel i210
• X10DRT-P
NEW
X10DRT-P Proprietary Twin 1TB DDR4
16 DIMM slots
10 SATA3 2 GbE
• X10DRT-PT
NEW
X10DRT-PT Proprietary Twin 1TB DDR4
16 DIMM slots
10 SATA3 2 10GBase-T
• X10DRT-PIBQ
NEW
X10DRT-PIBQ Proprietary Twin 1TB DDR4
16 DIMM slots
10 SATA3 Infiniband QDR
• X10DRT-PIBF
NEW
X10DRT-PIBF Proprietary Twin 1TB DDR4
16 DIMM slots
10 SATA3 Infiniband FDR
• X10DRFR
NEW
X10DRFR Proprietary Twin 1TB DDR4
16 DIMM slots
10 SATA3 2 GbE
• X10DRFR-T
NEW
X10DRFR-T Proprietary Twin 1TB DDR4
16 DIMM slots
10 SATA3 2 10GBase-T
• X10DRFF
NEW
X10DRFF Proprietary Twin 512GB DDR4
8 DIMM slots
10 SATA3 2 GbE
• X10DRFF-C
NEW
X10DRFF-C Proprietary Twin 512GB DDR4
8 DIMM slots
8 SAS3, 10 SATA3 LSI 3008 SAS3
• X10DRW-i
NEW
X10DRW-i Proprietary WIO 1TB DDR4
16 DIMM slots
10 SATA3 2 GbE
• X10DRW-iT
NEW
X10DRW-iT Proprietary WIO 1TB DDR4
16 DIMM slots
10 SATA3 2 10GBase-T
• X10DDW-i
NEW
X10DDW-i Proprietary WIO 1TB DDR4
16 DIMM slots
10 SATA3 Datacenter Optimized
• X10DDW-iN
NEW
X10DDW-iN Proprietary WIO 1TB DDR4
16 DIMM slots
10 SATA3 4 Internal NVMe ports
• X10DRG-H
NEW
X10DRG-H Proprietary 1TB DDR4
16 DIMM slots
10 SATA3 Up to 6 GPU
2 GbE
• X10DRG-HT
NEW
X10DRG-HT Proprietary 1TB DDR4
16 DIMM slots
10 SATA3 Up to 6 GPU
2 10GBase-T
• X10DRU-i+
NEW
X10DRU-i+ Proprietary WIO 1.5TB DDR4
24 DIMM slots
10 SATA3 Ultra Architecture

Also, here are the newest X10 single processor offerings for the Intel Xeon E5-1600 V3 and E5-2600 V3 processors:

Product Model Quick View Form Factor Memory HDD Other Key Features
• X10SRL-F
NEW
X10SRL-F ATX 512GB DDR4
8 DIMM slots
10 SATA3 7 PCI-E
Intel i210
• X10SRi-F
NEW
X10SRi-F ATX 512GB DDR4
8 DIMM slots
10 SATA3 6 PCI-E
Intel i350
• X10SRH-CF
NEW
X10SRH-CF ATX 512GB DDR4
8 DIMM slots
8 SAS3, 10 SATA3 SAS3 via
LSI 3008
• X10SRH-CLN4F
NEW
X10SRH-CLN4F ATX 512GB DDR4
8 DIMM slots
8 SAS3, 10 SATA3 SAS3 via LSI 3008, 4 GbE
• X10SRG-F
NEW
X10SRG-F Proprietary 512GB DDR4
8 DIMM slots
10 SATA3 Up to 5 AOC (in 1U chassis)
• X10SRW-F
NEW
X10SRW-F Proprietary 512GB DDR4
8 DIMM slots
10 SATA3 Up to 3 AOC (in 1U chassis)

You can get more information directly here. Stay tuned for more coverage all this week.
