New 10GbE and 40GbE MikroTik Switches Coming

5

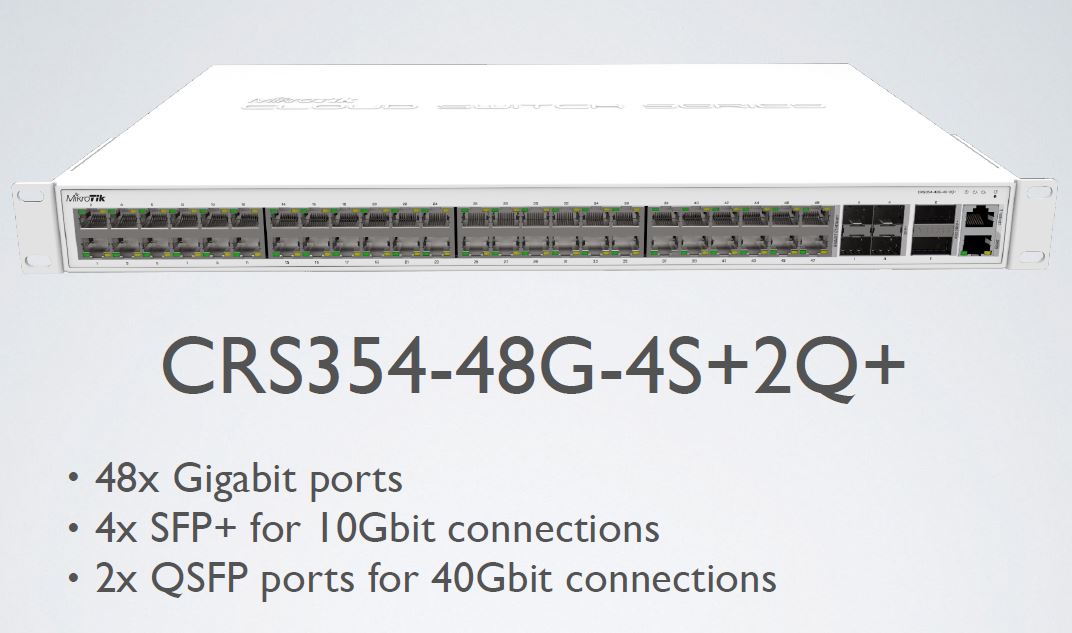

MikroTik CRS354 48G 4S+2Q+ Switch
MikroTik CRS354 48G 4S+2Q+ Switch

MikroTik is moving up in the world. At MUM Europe the company announced a new fleet of switches as it takes on the higher-end market segments. Traditional network switch vendors are focused on the 25GbE/ 50GbE/ 100GbE transition. As a result, the 10GbE/ 40GbE segment is becoming commoditized. MikroTik is seizing this opportunity to drastically expand its high-end 10GbE and 40GbE switch lineup. We have an overview on the new models which count seven total. This is a major expansion of the MikroTik switch range.

MikroTik CRS354-48G-4S+2Q+ and CRS354-48P-4S+2Q+ Switches

The first switches we wanted to touch on are the CRS354 series. These switches have 48x 1GbE ports but also 4x SFP+ and 2x QSFP+ ports. The SFP+ ports are for 10GbE and the QSFP+ ports are for 40GbE. On the MikroTik CRS354-48G-4S+2Q+, the 48x 1GbE ports are standard ports.

MikroTik CRS354 48G 4S+2Q+ Switch
MikroTik CRS354 48G 4S+2Q+ Switch

There is another variant, the MikroTik CRS354-48P-4S+2Q+ which has PoE on the 48x 1GbE ports. If you are looking to power access points or 1080p / 4K video cameras, this is an intriguing rackmount solution that has significant upstream ports for storage or LAN/ WAN access.

MikroTik CRS354 48P 4S+2Q+ Switch
MikroTik CRS354 48P 4S+2Q+ Switch

This is certainly moving up the stack for MikroTik which is welcome. We loved the MikroTik CRS226-24G-2S+RM but this is a major step up on all counts.

MikroTik CRS305-1G-4S+IN

At the other end of the spectrum is something truly unique. The company has a 4x SFP+ plus 1x 1GbE port model. The MikroTik CRS305-1G-4S+IN also features a metallic case for edge deployments.

MikroTik CRS305 1G 4S+IN Switch
MikroTik CRS305 1G 4S+IN Switch

This is really intriguing to see as it is a product designed for 10GbE at the edge. Most of the 4x SFP+ switches we have seen to date have 24-48x 1GbE ports as well. This is a 10GbE focused switch.

MikroTik CRS309-1G-8S+PC

For those who have noise constraints, there is a new passive cooling 10GbE switch on the market. The MikroTik MikroTik CRS309-1G-8S+PC has 8x SFP+ ports and a single 1GbE port.

MikroTik CR309 1G 8S+PC Switch
MikroTik CR309 1G 8S+PC Switch

Typically, MikroTik is extremely aggressive with pricing in this segment which could make this a great option.

Beyond these options, MikroTik also has three new rackmount switches that are going to be unique as they hit the market. We are going to cover those three next.

5 COMMENTS

  1. Nice article, but the last sentence is just so so. For example, yep, in 2018 I’m purchasing 1GigE switch. Why? You can’t find any 10 GigE which would be fan-less. One of exceptions is one from MikroTik. (CRS326 something…). But if you look into performance sheet, they supply only up to 1GigE throughput numbers. Why? Isn’t it possible to switch 10GigE wirespeed? Also hardware is really limited. Just 16MB FLASH. That means they seriously limit their ability to add new features. I’m comparing all this with Cisco SG250/350. The amount of features on Cisco is simply stunning — especially on SG350. The problem is it’s more than twice the price of MikroTik and w/o any 10GigE options. So well, although I do have Cat6A cables and keystones everywhere I’ll still probably buy Cisco since MikroTik looks kind of strange on the switch side…Pity, but such is life…

  2. > But if you look into performance sheet, they supply only up to 1GigE throughput numbers. Why? Isn’t it possible to switch 10GigE wirespeed?
    Not true: it is switching at 10G, but routing at 1G speeds.
    By the way, if you like the SG350 series, look at the SG350X. Can be had at good prices when you search for it. It is a better featured switch than the mikrotik (very nice when stacked, I use it that way), but still not in the league of the bigger boys (small buffer, language crippled, and the DHCP server is simply unusable). A LOT noisier than the CRS317 I have though (which is completely silent after boot), even with retrofit low noise fans.
    My take at it: 10G L2/L2+ switching is affordable now, especially with this new mikrotik range. L3 on 10G is still costly.

  3. Hans,

    thanks a lot for your comment which lead me to another investigation and I’ve found you are partially right. Let’s have a look on CRS326 numbers: https://mikrotik.com/product/CRS326-24G-2SplusRM#fndtn-testresults

    You are right that L2 switching numbers are way higher than L3 bridging/routing numbers. On the other hand if you count with required switching capacity for provided ports, then you have 24 x 2Gbits + 2x 20Gbits. I’m counting with full-duplex hence twice the port speed. This leads to 24 * 2 + 2 * 20 = 88 Gbps switching capacity. If you look into perf. numbers, you see that only “Switching …. capacity” provides this, but “Switching …. throughput” is kind of limited to ~45 Gbps. Why is that?

    That’s with regarding to Mikrotik. Anyway, you convinced me that the hardware is pretty capable, now the question is how good (i.e. bug-free) VLAN implementation is…

    W.r.t. Cisco SG350 and upgrade to SG350X, in fact I went in opposite direction from SG350X which I would loved to have to just SG350 and the reason was declared noise level produced by builtin fan on SG350X. Otherwise this switch would be my hottest candidate. Thanks a lot for your note about actual noise comparison between SG350x and CRS317. That’s something man usually hard to find, especially since Mikrotik provides no measurements in their data-sheets…

    Hmm, anyway, I’m very grateful for your comment, I’ll still need to consider CRS326 so it’s back in game.

    Thanks!
    Karel

  4. CRS326 like most switches has full non-blocking switching performance. Capacity double counts ingress and egress traffic; throughput single counts traffic passing through the switch. L1 throughput is always half of L1 capacity. L2 performance is derated based on framing overhead, exactly as expected.

    If you are OK with a web GUI and don’t need routing features, you may also want to consider CSS326, which is lower cost and lower power than CRS326 and still a very capable switch. Both are passively cooled (no fans).
