Let me start by saying that we are going to have our full review soon. At the same time, we had a number of readers ping me yesterday across various platforms about the Minisforum MS-01, a system that has been floating around in our forums for several months. Just after Minisforum officially launched the product, our review unit arrived via DHL. So instead of just saying that something launched, we figured, why not show a real unit? Let us get to it.

Minisforum MS-01 Launched 10GbE Mini PC First Look

Given the timelines, we do not have a full video yet, but here is a short from our new STH Labs channel on the new system.

As for the unit itself, it is notably larger than a 1L Project TinyMiniMicro PC, and much larger than many of the smaller mini PCs we have reviewed. It is still relatively compact in size despite that.

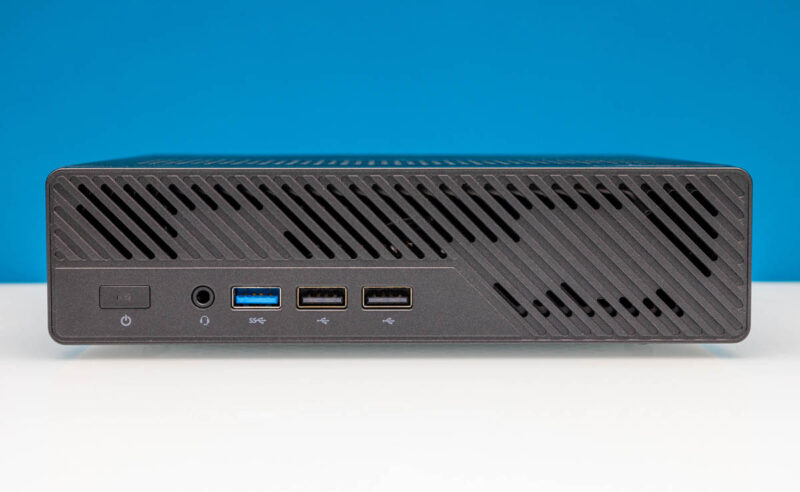

Minisforum MS 01 Front
Minisforum MS 01 Front

On the rear of the unit, we get a few notable ports. Those include dual SFP+ 10GbE ports, dual 2.5GbE ports, and two USB 4 (supports Thunderbolt 3 devices) ports.

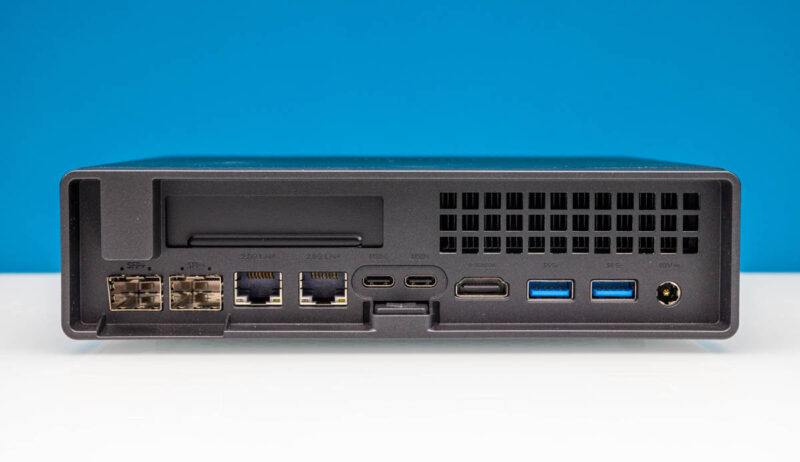

Minisforum MS 01 Back
Minisforum MS 01 Back

Inside we get an Intel Core i9-13900H (there is a less expensive i9-12900H model as well) and a cooling solution similar to a HP Elite Mini, except with screws to get to the memory instead of a tool-less design.

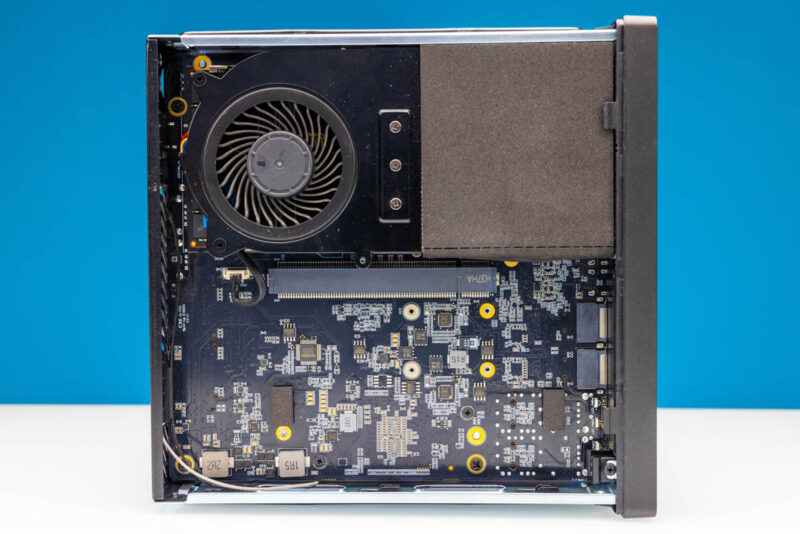

Minisforum MS 01 Internal Overview CPU Memory And PCIe Slot Side CPU Top
Minisforum MS 01 Internal Overview CPU Memory And PCIe Slot Side CPU Top

The PCIe slot can be hard to see in pictures, but this is a PCIe x16 slot with an x8 electrical connection. Using a GPU here lowers the TDP of the CPU and also may require a bigger PSU.

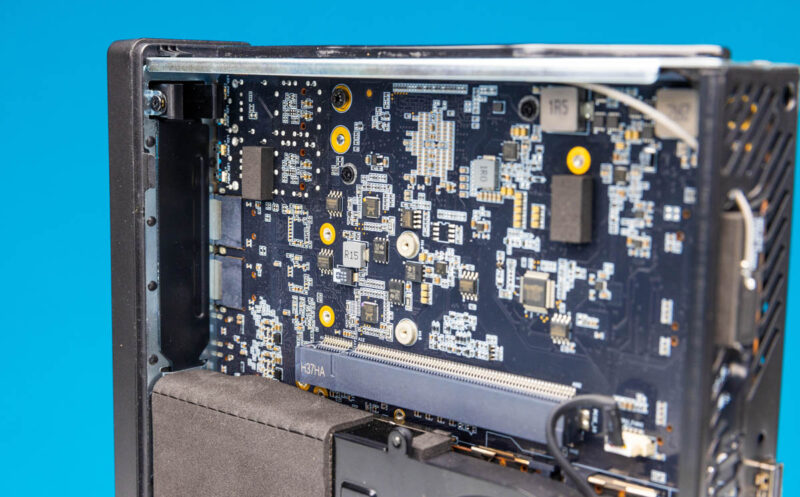

Minisforum MS 01 LP PCIe Slot
Minisforum MS 01 LP PCIe Slot

On the bottom, removing the cooling fan, we can see the three M.2 slots, with one special slot.

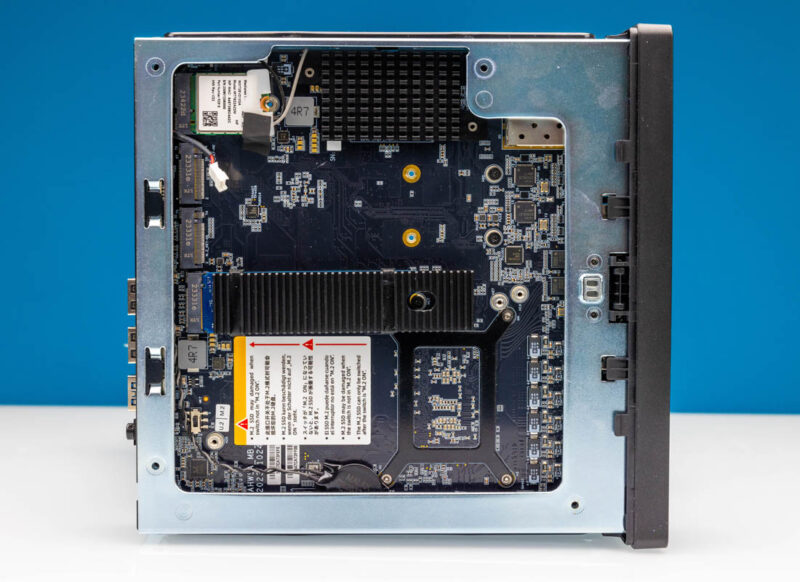

Minisforum MS 01 Internal Overview SSD And WiFi Side
Minisforum MS 01 Internal Overview SSD And WiFi Side

The special slot has an internal switch to supply 12V power so it can power a U.2 NVMe SSD. If you have this set to U.2, and you insert a M.2 drive, there is a good chance you would fry the drive. There is a big warning sticker, but if you have ever seen a M.2 to SFF-8639 adapter and wondered why there was a power input instead of just pulling M.2 power, this is a similar reason.

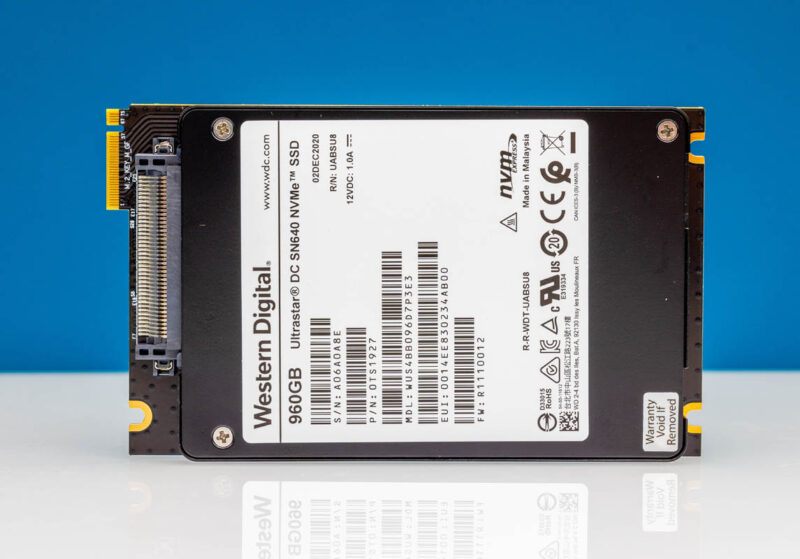

Minisforum MS 01 Sandisk In M.2 To U.2 Converter
Minisforum MS 01 Sandisk In M.2 To U.2 Converter

There is really a lot to like with this little box and there are folks we have seen in reviews asking for almost this exact system. We are not completely sure whether to classify it as a server or as a workstation at this point.

Final Words

There is still a ton of work to be done on this system, but our team is on it. We also are kitting the system out with a bunch of different features. The NVIDIA RTX A2000 mobile (not desktop) is more of a DIY solution. We could not find a compatible module on AliExpress last night. Still, we have ideas.

More coming in the full review. In the meantime, you can check out local pricing on the Minisforum website (Affiliate link.)
