HPE ProLiant Microserver Gen11 Internal Overview
Starting with the top, we get a fairly flat surface, but one with the access instructions printed.
On one side we see cables and the latches that lock the hinged design.
On the other side we can see the memory and the other locking latch.
Once those latches are unlocked, and a few screws are removed, the drive bays are on a hinge that opens allowing access to the rest of the system.

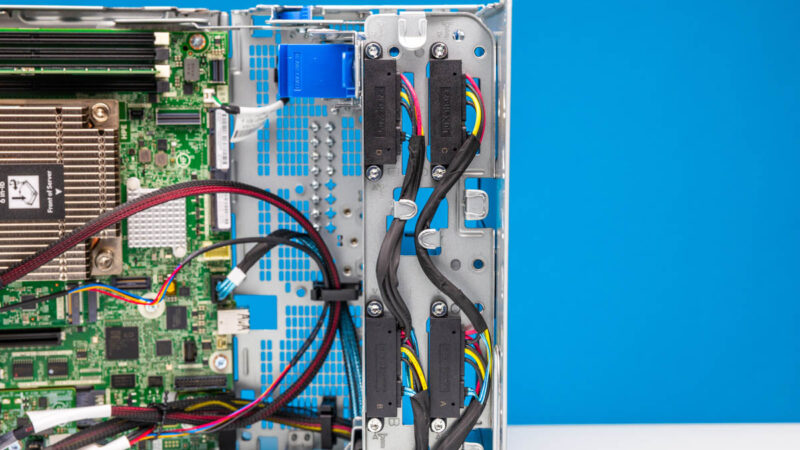

Here is a quick look at the cabled connections for drives.

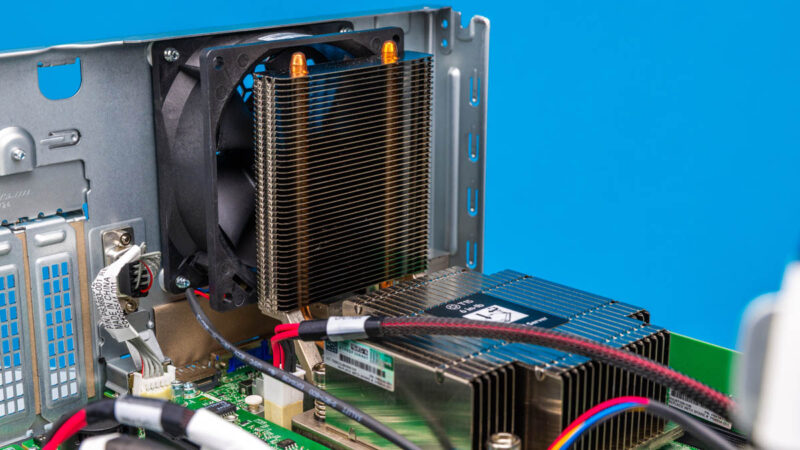

Perhaps the big component is the Intel Xeon E-2400/ Xeon 6300 CPU. That sits in its socket underneath a heatpipe cooler.

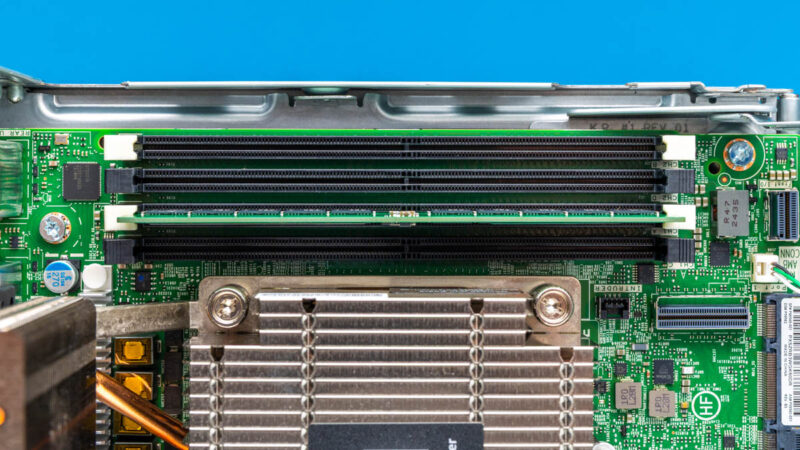

Next to that are four DDR5 DIMM slots. This system can take up to four DDR5-4400 ECC UDIMMs. This is something great that HPE does versus companies like Lenovo that limit some entry platforms to two DIMM slots (like the Lenovo ThinkSystem ST45 V3.)

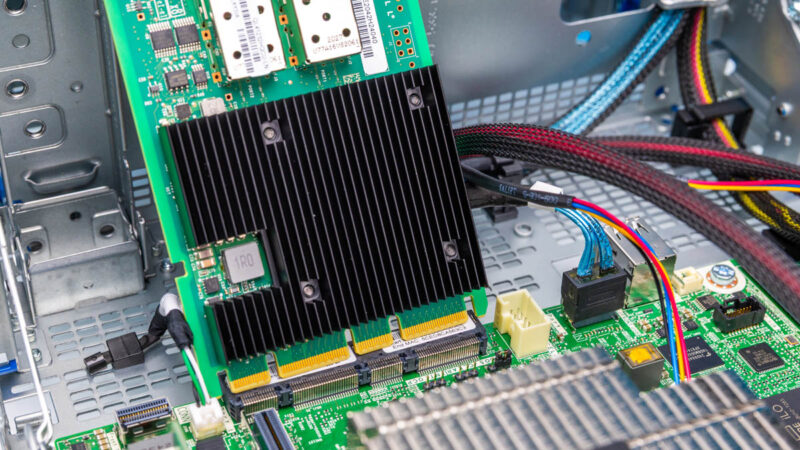

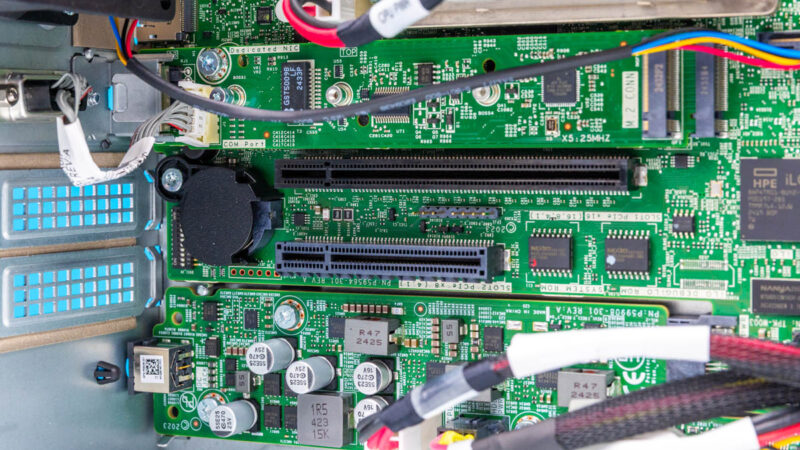

There are two PCIe slots with the x16 being a PCIe Gen5 slot. There is also a PCIe Gen4 slot below it. That means one can add two expansion cards like a fast NIC and then either a HBA/ RAID controller or even a dual M.2 card. One item to keep in mind is that there is only a single fan in this system and it is not for the PCIe card slots. Practically, that means you will want to use lower power cards in this system, or ones that have active blower-style coolers.
The HPE iLO 6 chip is onboard as well.

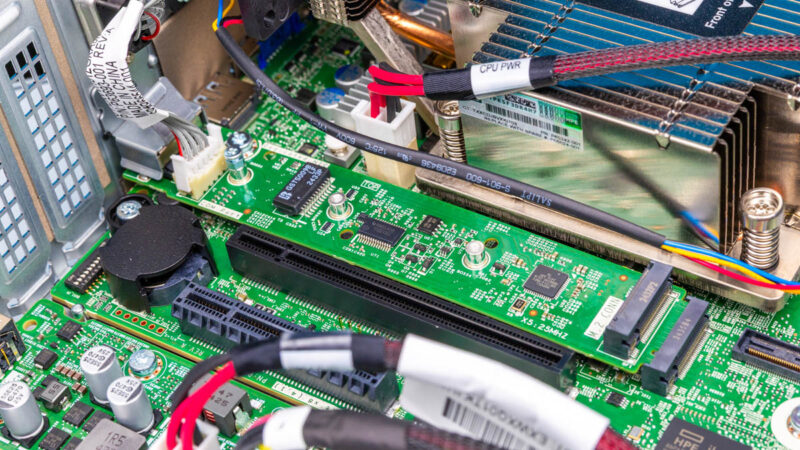

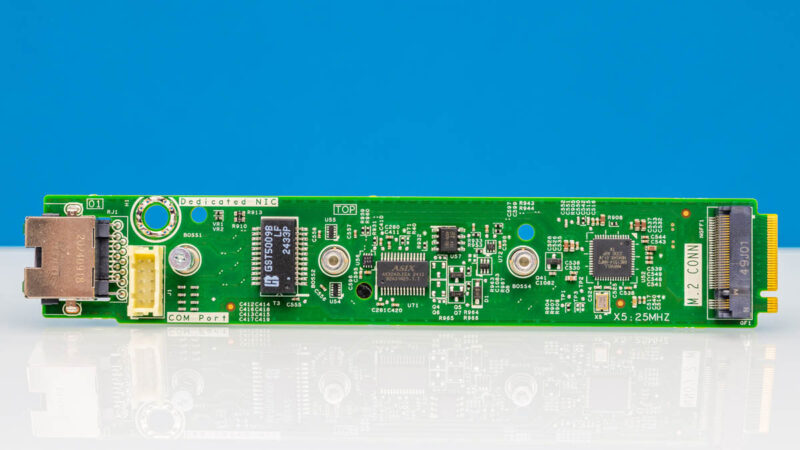

At the same time, the dedicated iLO NIC port and the serial port are found on a little board that also has the spot for the M.2 SSD. This is apparently an option that we had in the system we bought.
Here is a look at the board.

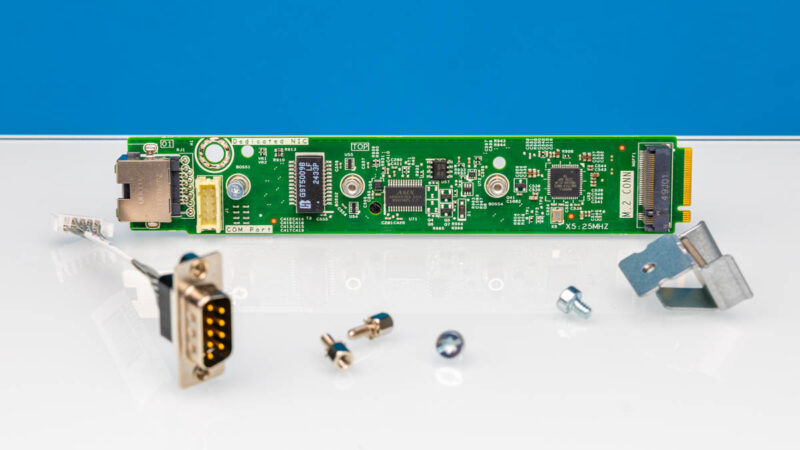

Here is a look at the board with the accessories.

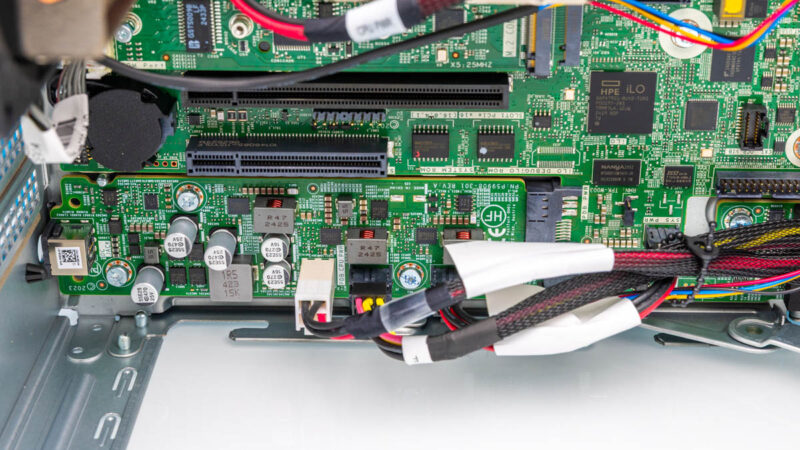

Inside, we also have a power distribution board to take the DC power input and then distribute that power into the system’s components.

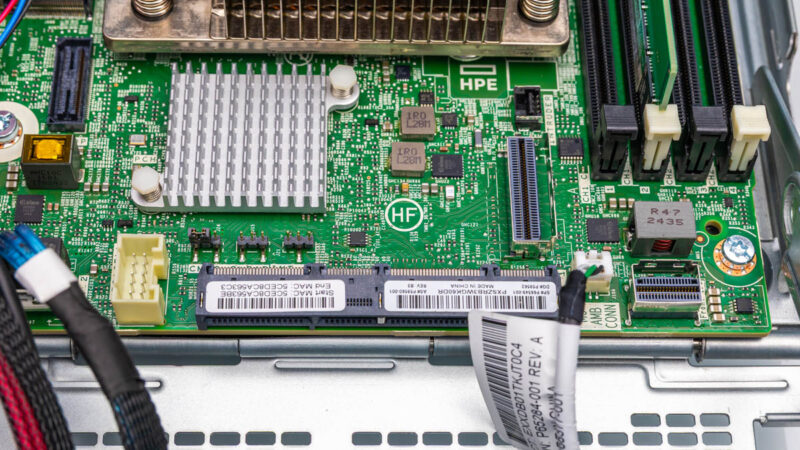

Then we have the Intel PCH since the Xeon E/ Xeon 6300 series still uses a PCH.
All of those features are great, but there were some interesting bits not being used. For one, there was something that looks a lot like an OCP NIC 3.0 slot that is present but unusable in our system due to where it was placed.

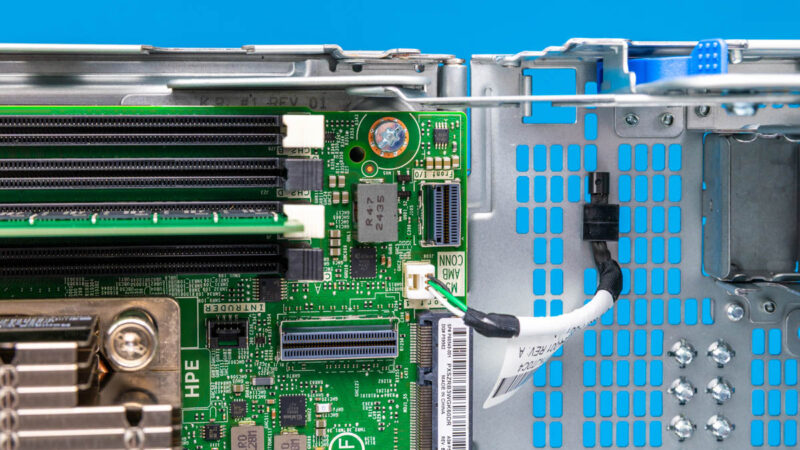

We also saw other connectors that were unused in the server. It was just neat to see but I was left wondering why there is a MCIO connector that is unlabeled, as an example.
One small note is that HPE does a nice job with cable management, especially with the hinged design.
Next, let us get to the topology.
