ASRock Industrial 4X4 BOX-AI350 Internal Hardware Overview

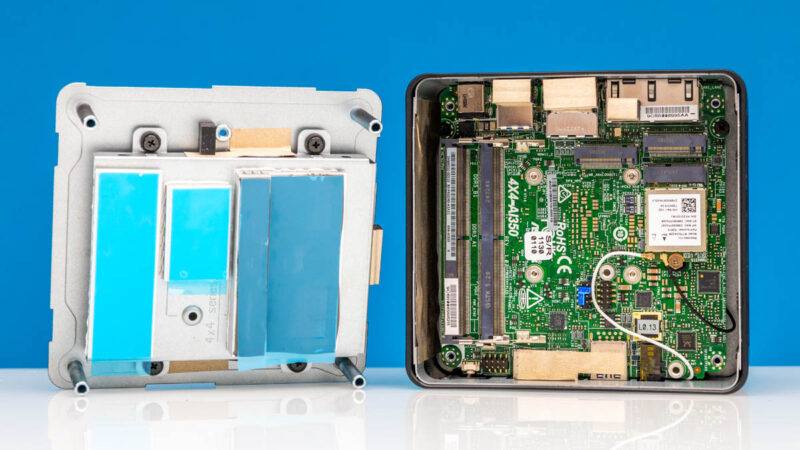

The bottom lid has two nice features. One is a mounting spot for a 2.5″ drive.

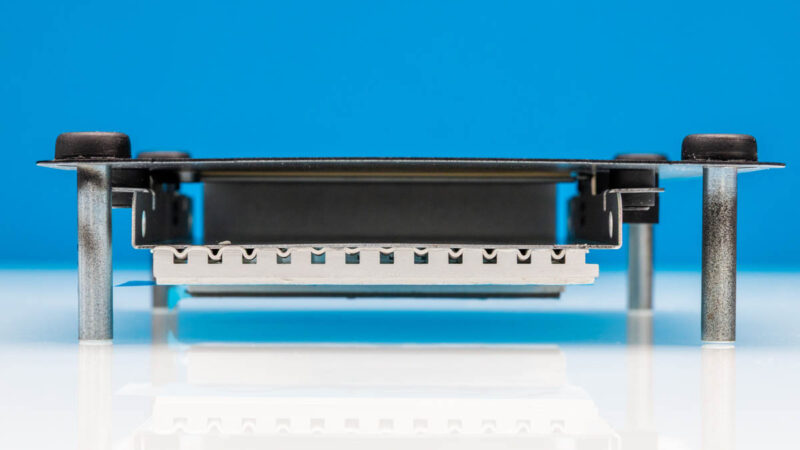

The other is an array of thermal pads and heatsinks for the memory and SSDs.

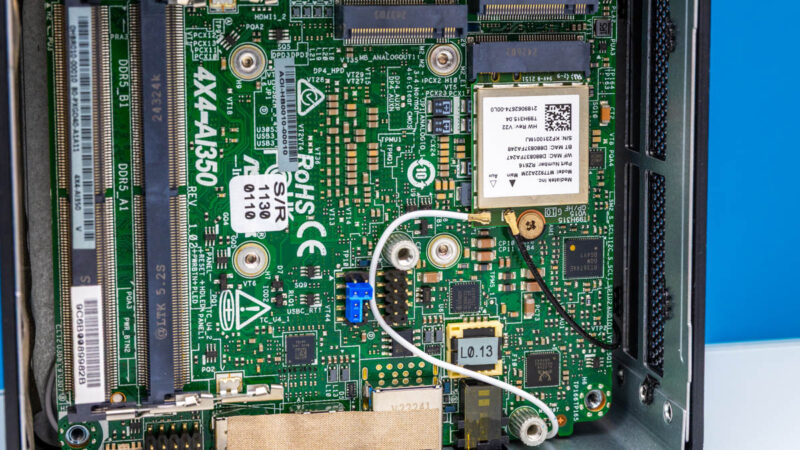

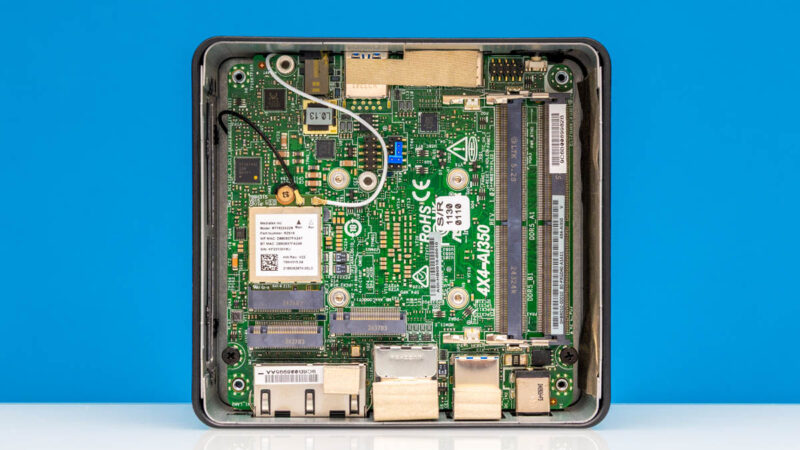

Inside the system, we get a very standard layout we have seen from the company previously.

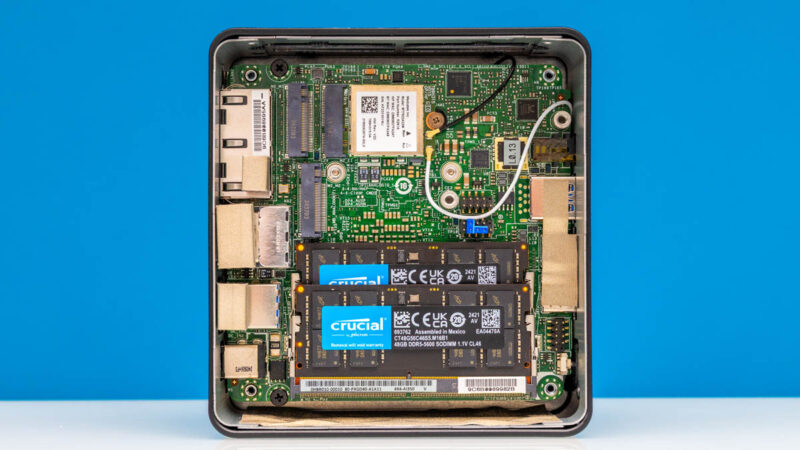

Memory is DDR5-5600 SODIMM and we tried up to two 48GB SODIMMs for 96GB.

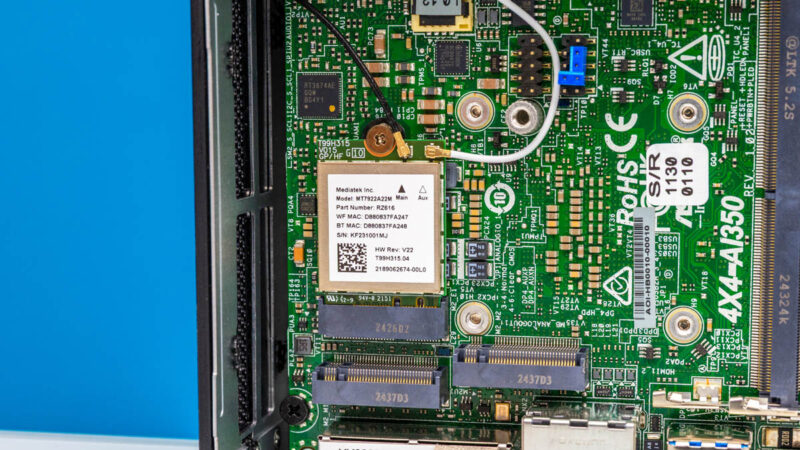

For WiFi 6E we have the Mediatek RZ616 which is the standard solution for AMD Ryzen mini PCs.

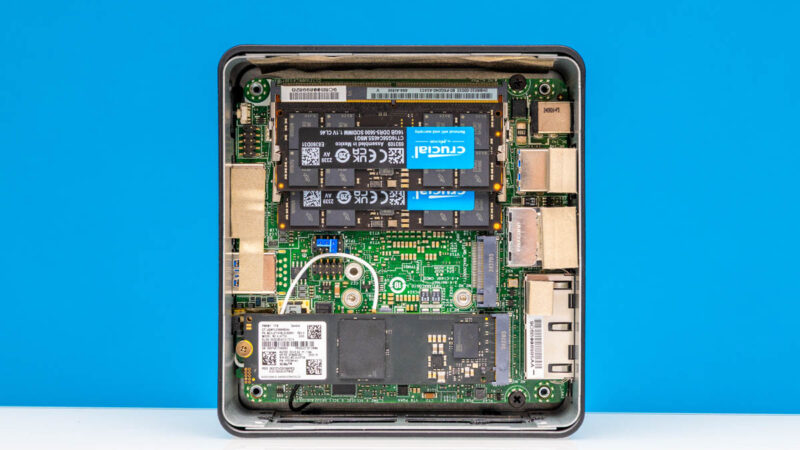

The M.2 2280 slot is above the WiFi card, and then there is a second M.2 2242 slot in the middle.
To us, we always wish that we had two M.2 2280 slots so that we can use a wider variety of SSDs in these systems, but this is standard for ASRock Industrial.
Overall, this is a fairly easy system to service, we just wish that ASRock Industrial updated this to a tool-less design.
Next, let us get to topology and performance.
