AMD Ryzen V1000 and EPYC 3000 at Embedded World 2019

0

AMD EPYC 3000 Products

We have benchmarked a number of AMD EPYC 3000 systems. That includes the AMD EPYC 3251AMD EPYC 3201AMD EPYC 3101, and the AMD EPYC 3151 numbers will be published soon. We have been awaiting this embedded series ever since we covered the launch in AMD EPYC Embedded 3000 Series Launch Watch Out Xeon D.

Supermicro AMD EPYC 3000 Platforms at Embedded World 2019

Here are the two Supermicro AMD EPYC 3000 platforms at Embedded World 2019:

Supermicro AS 5019D FTN4 At Embedded World 2019
Supermicro AS 5019D FTN4 At Embedded World 2019

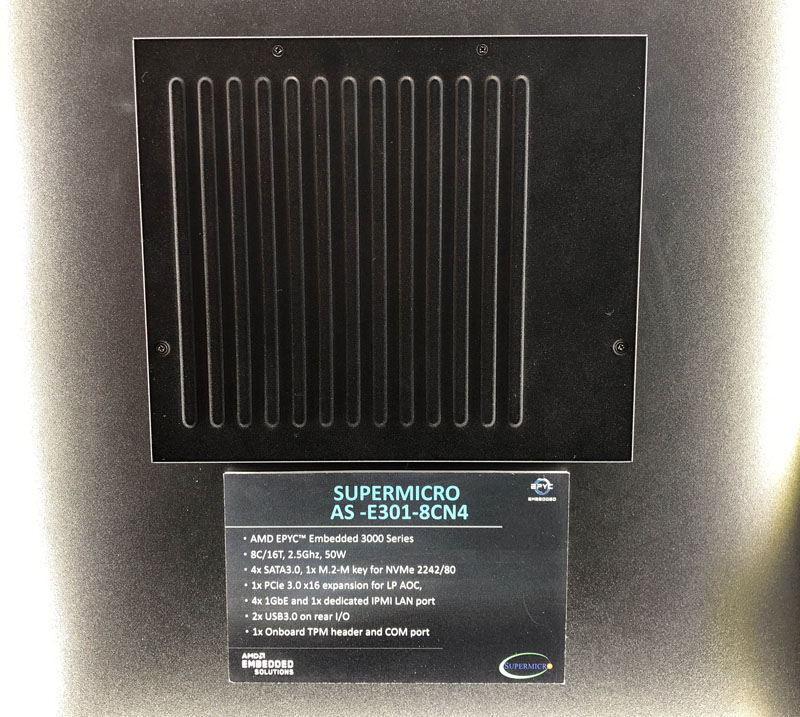

Supermicro AS E301 8CN4 At Embedded World 2019
Supermicro AS E301 8CN4 At Embedded World 2019

If you want to see more about the platforms’ motherboards, STH already published its Supermicro M11SDV-8C-LN4F Review and testing of both appliances is already complete.

iEi AMD EPYC 3000 Platforms at Embedded World 2019

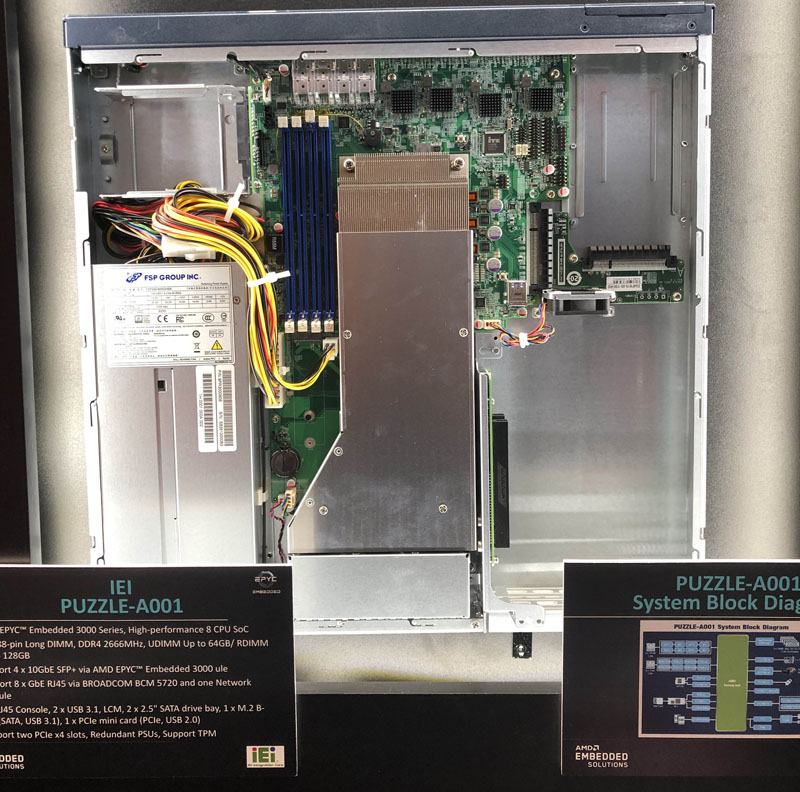

The iEi Puzzle has the distinction of being the first AMD EPYC 3000 platform shown to STH. See Piecing Together the iEi Puzzle AMD EPYC 3000 Spotted in the Wild.

IEi Puzzle A001
IEi Puzzle A001

This network platform was again present in the AMD Embedded booth.

iBASE AMD EPYC 3000 Platforms at Embedded World 2019

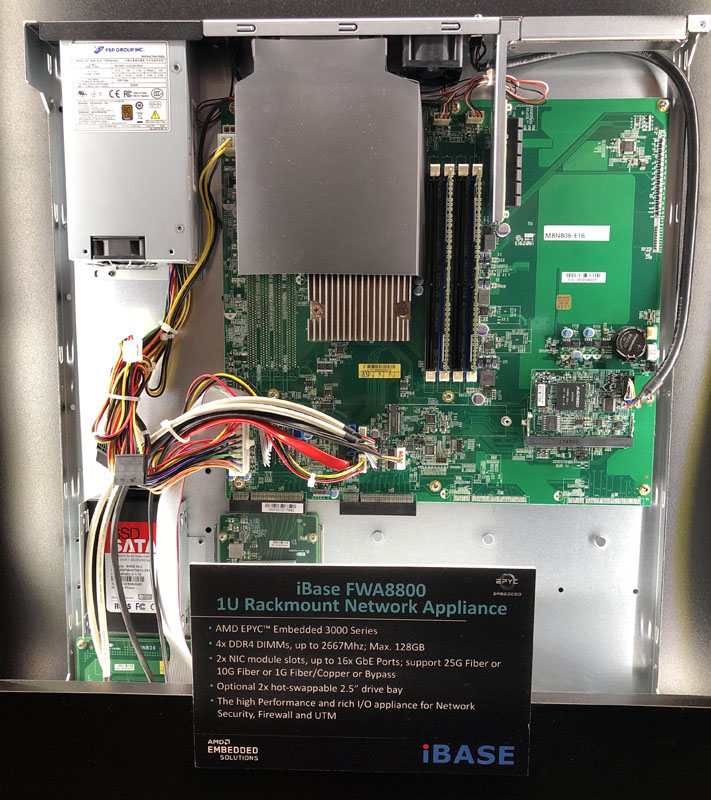

iBase had an AMD EPYC 3000 based appliance, the iBase FWA8800. This 1U networking appliance has a form factor to allow front panel NIC cards.

IBASE FWA8800
IBASE FWA8800

One can see this unit has RAM and PCIe lanes that are half placed. Presumably, the model shown only has a single die AMD EPYC 3000 part. Should a dual die solution be required, we can see pads for additional RAM and PCIe placements.

Congatech AMD EPYC 3000 Platforms at Embedded World 2019

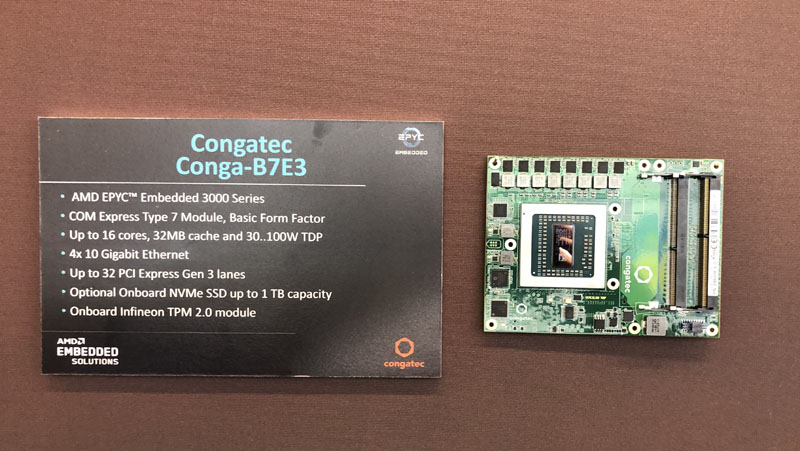

In a COM Express Type 7 module, Congatech had an AMD EPYC 3000 platform.

Congatech Conga B7E3
Congatech Conga B7E3

One can see that Congatech is deploying the 4x 10GbE on a single-die AMD EPYC 3000 platform. One can also see designs for up to 100W which aligns with dual-die EPYC 3000 parts.

TUL AMD Embedded GPUs at Embedded World 2019

Chalk this one up to I did not know that AMD had embedded GPUs, but the segment makes sense. TUL is the manufacturer of the three GPUs based on AMD for the embedded market:

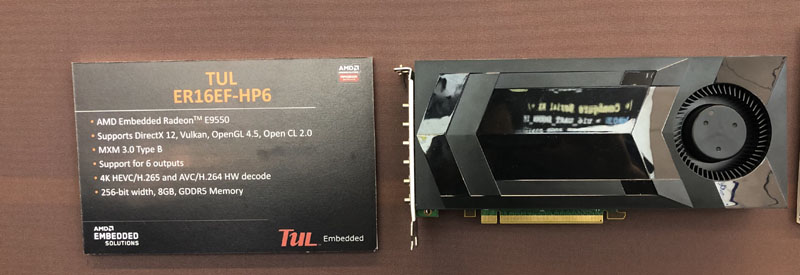

TUL ER16EF HP6
TUL ER16EF HP6

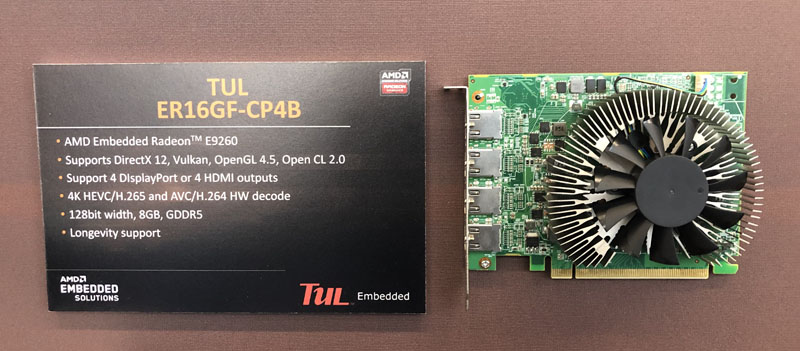

TUL ER16GF CP4B
TUL ER16GF CP4B

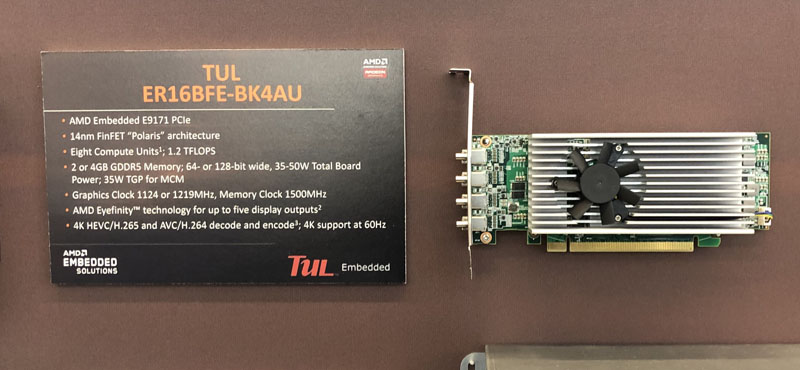

TUL ER16BFE BK4AU
TUL ER16BFE BK4AU

These seem to be mostly targeted at multi-output embedded products for features like support for between four and six monitors.
