AMD Opteron A1100 Update from Hot Chips

3
AMD Seattle SoC Overview
AMD Seattle SoC Overview

AMD recently revealed a few new bits of information at Hot Chips in Cupertino, California on their new AMD Opteron A1100 processor. This is one of the 64-bit ARM releases that we have been eagerly awaiting. Two weeks ago we wrote about the development board being (finally) available for sale.

Head over to Tom’s IT Pro for my overview piece on the ARM platform.

First off, the overview slide AMD is presenting:

AMD Seattle SoC Overview
AMD Seattle SoC Overview

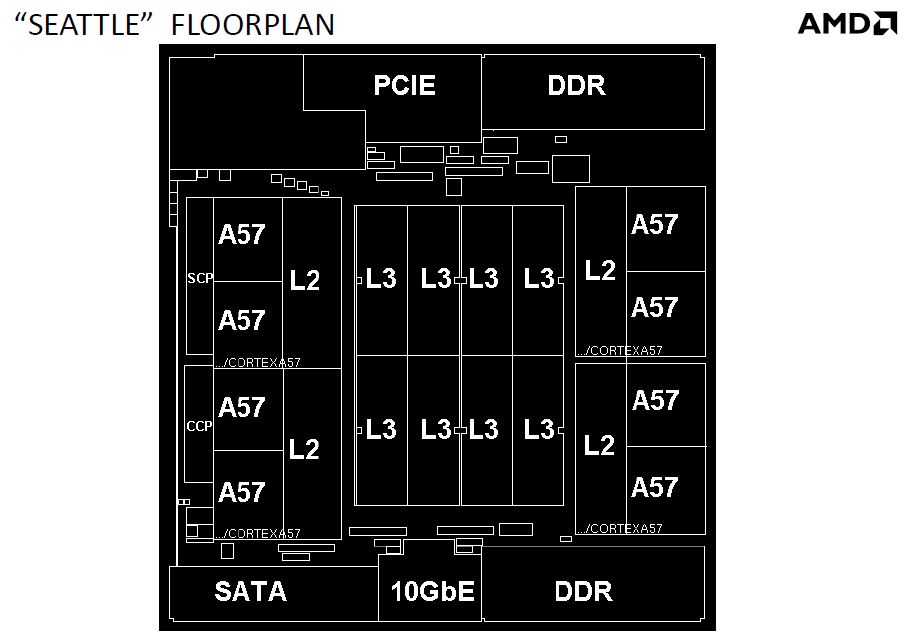

One will notice a few key features such as integrated dual 10 gigabit Ethernet, PCIe 3.0 and 8x SATA III lanes. Memory is dual channel with 128GB possible. Looking at the AMD Opteron A1100 floorplan, one can see that the 8MB of L3 cache is at the center of the design. Furthermore the L3 and L2 caches take up a high proportion of total die area in this design.

AMD Seattle SoC Floorplan
AMD Seattle SoC Floorplan

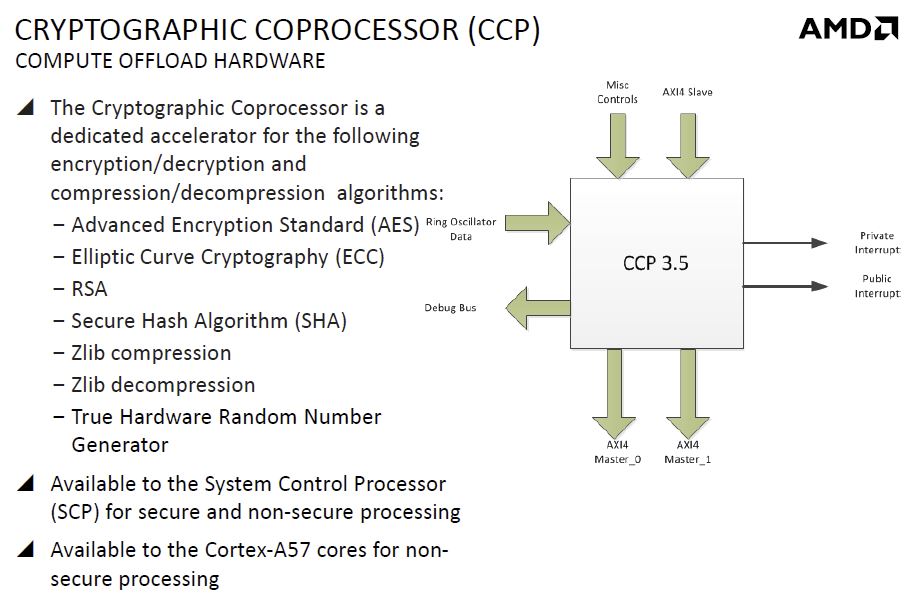

The Cryptographic Coprocessor is a big deal these days. Companies such as Google are some of the primary drivers of 64-bit ARM alternatives. The company is now securing data end-to-end through encryption. Having low power cores with dedicated crypto offload is a big power/ performance saver.

AMD Seattle SoC CCP
AMD Seattle SoC CCP

We certainly will need to test to see how well this work. Specifically, can the CCP handle encryption fast enough for the dual 10 gigabit Ethernet links.

AMD Opteron System Control Processor

The SCP is basically the AMD Opteron platform’s remote power management and Serial-over-LAN feature. It is onboard so there is no need for a separate chip like we see in Intel servers.

AMD Seattle SoC SCP
AMD Seattle SoC SCP

RGMII gets its own 1GbE link much like we see with traditional BMC components. We asked if it is IPMI 2.0 compatible and AMD said it would be. We also asked if there was a remote iKVM like feature and were told it would be serial-over-LAN only.

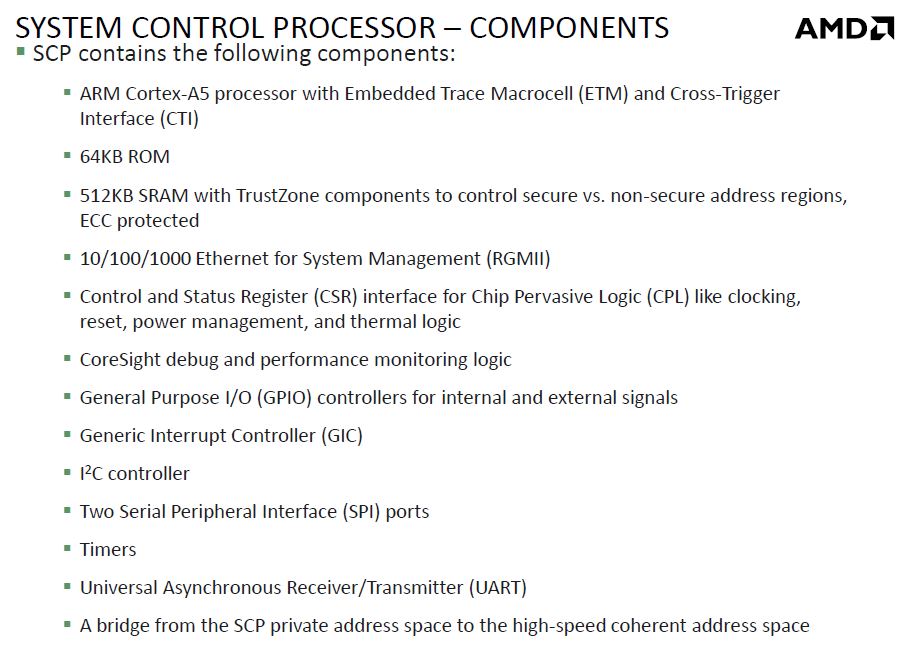

AMD Seattle SoC SCP 2
AMD Seattle SoC SCP 2

Overall this is great to see. I also asked an Intel source last week when I would see the BMC integrated onto its products. The source smiled in response which we are taking as a no comment.

We will have a bit more on the AMD Opteron A1100 in the coming days. For now, you can see the longer Tom’s IT Pro article for an overview of the platform.

Here are some of the key slides from AMD’s presentation on its new ARM chip.
