Recently we have been working with smaller form factor machines to provide low power physical nodes to network infrastructures. Today we are taking a look at the Zotac ZBOX-BI320-U-W2. As a member of the ZBOX family, we knew this would be a compact and low power platform. For $219 at Amazon we got the entire Zotac ZBOX-BI320-U-W2. This version is particularly interesting as it has 2GB of RAM, a 64GB SSD and Windows 8.1 with Bing pre-installed. Overall, this box is not just an awesome lightweight PC, but it can also double as a nice network appliance. It should be mentioned that this is the “Premium” ZBOX-BI320-U as it comes with RAM, a 64GB SSD and Windows. There is a barebones version that costs under $115 without those three features. That would make an excellent Linux machine.

Zotac ZBOX-BI320-U-W2 Overview

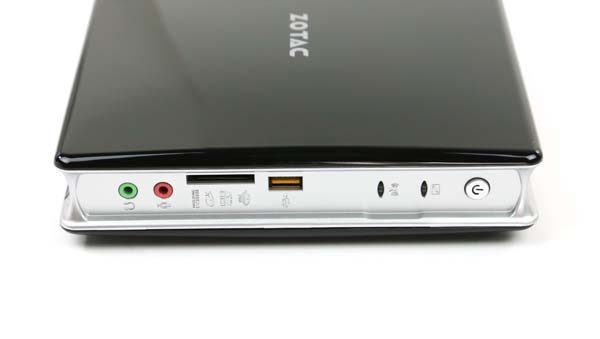

Looking at the front of the chassis we have a decent set of I/O. There is a power button along with standard LEDs. There is a front stereo headphone jack with a microphone jack, perfect for a Google Hangouts or Skype headset. The memory card reader is a 6-in-1 (SD/SDHC/MS/MSPro/xD/MMC) unit. I particularly found this handy when I was in the lab and wanted to quickly pull images from my camera while the WiFi network was being updated. There is also a USB 2.0 port which can be used for keyboard/ mouse connectivity.

Zotac ZBOX-BI320-U-W2 Front IO
Zotac ZBOX-BI320-U-W2 Front IO

There is another USB 2.0 port atop the unit, but we are going to save bandwidth and just let you know it is there.

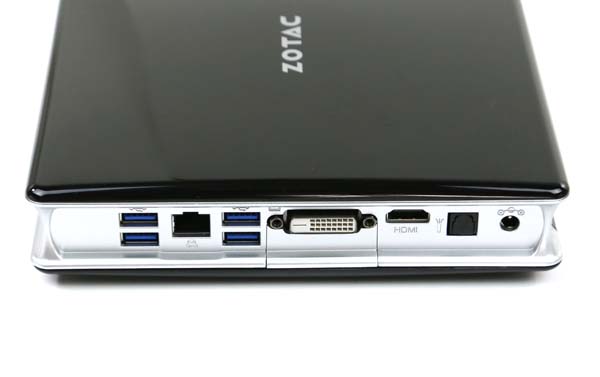

Moving to the rear of the unit we have video out via a standard DVI port and HDMI port. The DVI port is single-link only which works well. The single-link limitation does mean it cannot drive the inexpensive/ large 27″+ high-resolution monitors. We did try that and it did not work. The HDMI port is perfect for connecting to a TV however. Zotac even includes a S/PDIF audio out connector.

Zotac ZBOX-BI320-U-W2 Rear IO
Zotac ZBOX-BI320-U-W2 Rear IO

Rounding out the rear I/O panel we have four USB 3.0 ports and a gigabit Ethernet port. This is sufficient connectivity for this unit. One also can see the power port at the rear of the unit. Unlike some of the Intel NUC offerings, Zotac does provide the full power linkage which is nice.

Zotac ZBOX-BI320-U-W2 Internals

Inside the Zotac ZBOX-BI320-U-W2 we see something that looks relatively compact. At first glance, the setup may look mundane but as we found out, it is far from that. One can easily see the Crucial 2GB SODIMM. Zotac uses low power DDR3L 1600MHz. Frankly, the company could have included slightly less expensive DDR3 1333 but the low power 1600MHz RAM was a nice touch. The great part is that the 2GB SODIMM can be added to via a second SODIMM slot.

Adding RAM one can hit:

Unlike other barebones and embedded competitors, RAM is both included and easily upgradable.

Zotac ZBOX-BI320-U-W2 Interior
Zotac ZBOX-BI320-U-W2 Interior

The other awesome feature is int he bottom center of that picture. There is a 2.5″ tool-less drive bay inside the enclosure. One can simply unscrew the retention bracket, screw in a 2.5″ drive. We used both a 160GB Intel S3500 and a Western Digital RED 1TB drive in the bay without an issue. More on this later. The key is that there is a 64GB OS SSD already installed. This is twice the capacity of the popular ECS LIVA 32GB.

One word on fan noise, it is very minimal with our test unit. This is not really meant to be a platform for 100% 24×7 CPU usage. There was more than one occasion during testing that the unit was unplugged because it was so quiet we mistook it for being turned off.

Windows 8.1 with Bing

Microsoft has seen Chromebooks start to grow in popularity and has started to offer Windows for low end platforms essentially as a free product so long as Bing is the primary search provider when the system ships. Want to install Google Chrome after? No problem. The plus side is that you get essentially a $90 retail OS for free.

Zotac ZBOX-BI320-U-W2 Windows Information
Zotac ZBOX-BI320-U-W2 Windows Information

The 64-bit Windows 8.1 installation does hog memory. For a simple web browsing platform, maybe a video streaming platform or a similar device this works great. For those managing server farms, it also has no issues running HP iLO via a web browser, Supermicro IPMIview, LSI MegaRAID storage manager, Putty and other tools.

Overall, one can easily choose to run Linux or even dual boot this system. It is nice to know there is a licensed copy of Windows available though.

Why the ZBOX-BI320 hardware is interesting

Moving onto the hardware side, we already showed the physical layout and the expandable SODIMM and internal 2.5″ SATA bay. Rounding out the hardware part, we can see it does use a standard Realtek Gigabit Ethernet solution. While we prefer Intel NICs, in reality it makes no sense to add $1.50+ to the BOM for such a low cost platform. The FORESEE 64GB SSD is in no way a speedy solution. It does allow the ZBOX to boot relatively quickly and at least has more space than many of the low cost 32GB competitors. A 64GB SSD even on the low end is around $50 so this does add most of the premium over the barebones version.

Zotac ZBOX-BI320-U-W2 Windows Device Manager
Zotac ZBOX-BI320-U-W2 Windows Device Manager

Processor wise there is a dual core Intel Celeron 2957U that runs at 1.4GHz. TDP is a paltry 15w and we could not get total power consumption for the stock configuration over 13.1w with idle in the 5.4 to 5.8w range. Here is the great bit: it is not Bay Trail and instead is a Haswell part. That means even with only two cores, no Hyper Threading and low clock speeds, it does have a robust execution engine. It also means that Intel VT-x is available. For those wondering, you can run a hypervisor on this box.

Performance

For performance figures, the official Linux-Bench run can be accessed by going to http://linux-bench.com/parser.html and using 42141410655242 as the ID number. While much slower than the high-end servers we test, for this class of device, and importantly a low cost node, the performance is acceptable. Cinebench 11.5 CPU tests came in at 1.21 which means one is not going to want to do a lot of high-end UI work. Compared to older-generation platforms like the AMD E-350 this is significantly faster at lower power consumption.  We are not going to spend too much time/ space on performance since it is basically in-line with a 5.5w idle device in 2014. The Linux-Bench results do provide a good level of detail though.

The unintended, but extremely cool use case

About the same time we started testing this unit, we also were testing a few technologies in the server lab, such as Eucalyptus. With such a low idle power consumption figure, it happily joined, and in some cases bested our Intel NUCs we were using in terms of efficiency. We tried a simple test: going Linux. We dual booted Ubuntu and were able to join the node and 2.5″ disk to a GlusterFS share. We were also able to use the storage when we used CentOS for Eucalyptus as distributed cloud storage.

We also put the aforementioned 2.5″ SSD and HD each in the unit to see what would happen. Windows 8.1 has built-in distributed sharing so we were able to create shares on the disks and turn the ZBOX with Windows 8.1 into a low cost NAS unit. The cost is not much more than a standalone single drive NAS and one has the onboard SSD for the OS and ability to run Windows 8.1 programs.

The takeaway here is that even though Zotac likely did not intend for this to become a NAS platform, it actually works extremely well for that task.

Conclusion

Overall the Zotac ZBOX-BI320-U-W2 is excellent. If one wants Windows it is a clear choice since it essentially makes the 64GB SSD and 2GB of RAM “free”. While the base specs are not jaw dropping, and the performance is not what one would call “fast” it does have plenty of power to be a simple browsing/ streaming workstation, admin terminal or even a network appliance. For those looking to do a Linux-only build, the $115 ZBOX-BI310-U is likely a better value. On the other hand, there is a very small premium for Windows on this machine after the SSD and RAM are taken into account. It has taken significant self-restraint not to purchase a second unit.
