Samsung SM843T 480GB SSD Quick Benchmarks

3
Samsung SM843T 480GB Cover
Samsung SM843T 480GB Cover

Today we have quick benchmarks of the Samsung SM843T 480GB SSD. The SM843T is in many ways similar to Samsung’s consumer drives, except that it has tantalum capacitors for power loss protection, server focused firmware and a higher 2 DWPD/ 5 years write endurance (there are a few spec sheets out there citing 1.8 DWPD). Samsung drives seem to perform a bit better on Intel SATA controllers versus the LSI/ Avago SAS controllers we use. Still, we would expect excellent read speeds from the SM843T even on LSI controllers. The major benefit of these drives are that they are priced relatively competitively in the market and work well enough that we have deployed several to the STH colocation.

Test Configuration

Since we are going to assume the use of already released hardware, we are using a legacy system for testing across the test suite:

  • Motherboard: Gigabyte GA-7PESH3
  • Processors: Dual Intel Xeon E5-2690 (V2)
  • SAS Controller: LSI/ Avago SAS 3008
  • RAM: 64GB DDR3L-1600MHz ECC RDIMMs
  • OS SSD: Kingston V300 240GB

We are using a SAS controller so one cannot compare results directly to consumer-driven setups where a SATA SSD is connected to an Intel PCH port. There is a latency penalty for going over the PCIe bus to a controller to SAS. It also is a reason NVMe is going to be a game changer in the enterprise storage space. We do perform our full day of heavy write workloads as pre-conditioning to these drives.

Samsung SM843T 480GB SSD Quick Benchmarks

For our quick tests during this part of the series we will just provide the quick benchmarks with only a bit of commentary. The results should be fairly straightforward and we have added a few results for comparison purposes.

AS SSD Benchmark

AS SSD is a solid benchmark that does not write compressible data to drives. The result is perhaps one of the best workstation SSD benchmarks available today.

Samsung SM843T 480GB AS SSD Benchmark Comparison
Samsung SM843T 480GB AS SSD Benchmark Comparison

Our Samsung SM843T 480GB drive performed a bit lower than we would have expected on our write tests on the LSI/ Avago controllers. In terms of read speeds, we see top notch 4K and sequential read speeds.

CrystalDiskMark

CrystalDiskMark is another benchmark which gives non-compressible read/write numbers. This is in contrast to the ATTO Benchmark used by LSI/ Sandforce and its partners when they market a given solid state drive.

Samsung SM843T 480GB CrystalDiskMark Benchmark Comparison
Samsung SM843T 480GB CrystalDiskMark Benchmark Comparison

CrystalDiskMark shows a few trends. There are very strong 4Kread/ write speeds where the SM843T 480GB is top of the charts. Likewise, in the larger read transfer sizes the Samsung offering is very strong. On the write side, the figures are generally good with the high queue depth 4K write test being the most problematic. This does not seem to happen on the Intel SATA controller and not when the drive is fresh. There are plenty of data points out there on these drives so this is just one more different angle.

ATTO Benchmark

The value of the ATTO benchmark is really to show the best-case scenario. ATTO is known to write highly compressible data to drives, which inflates speeds of controllers that compress data like LSI/ SandForce does prior to writing on a given solid state drive.

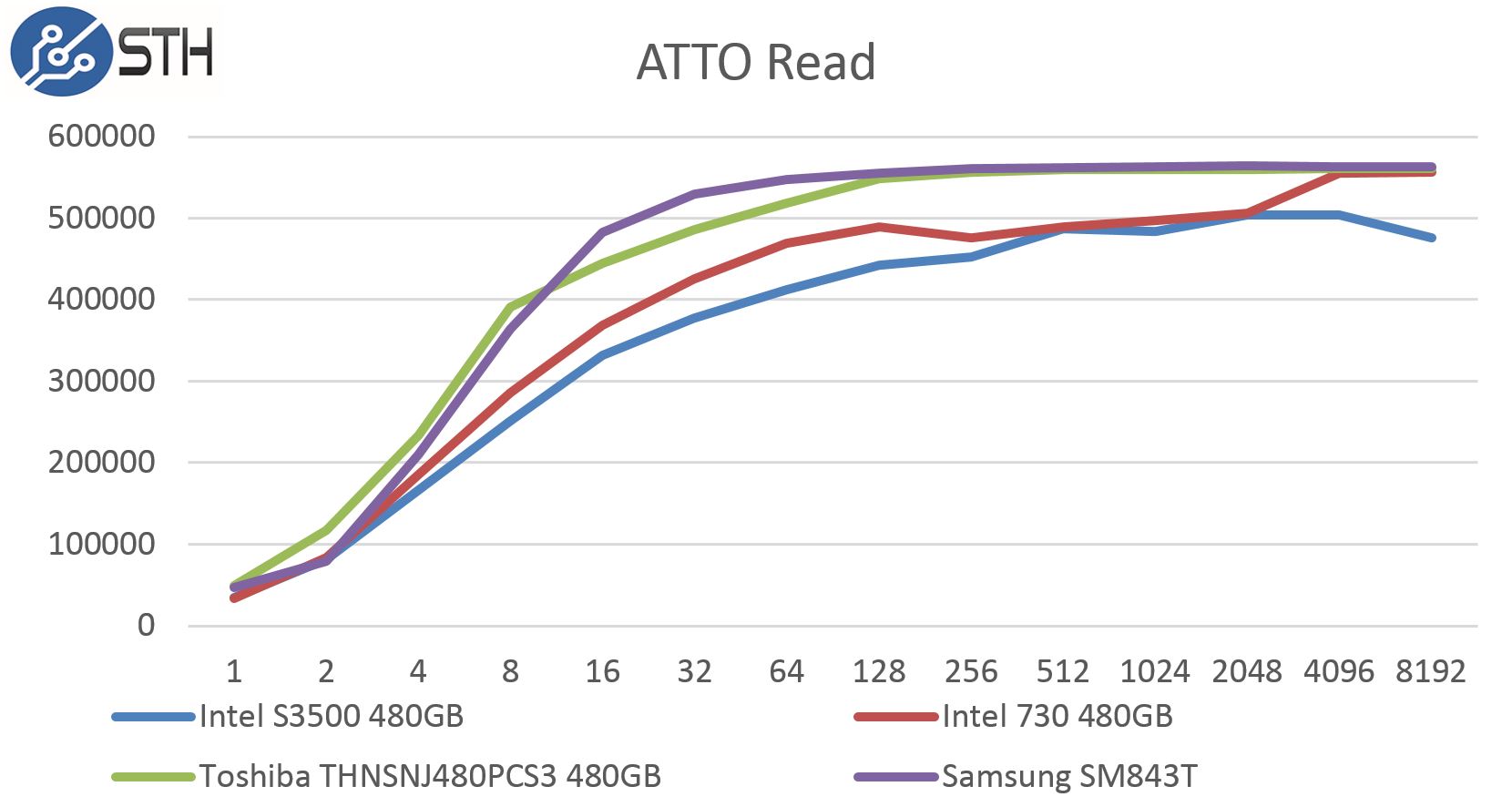

Samsung SM843T 480GB ATTO Read Benchmark Comparison
Samsung SM843T 480GB ATTO Read Benchmark Comparison

On the ATTO read side, we see the Samsung SM843T perform extremely well. Starting around the 16k sizes the SM843T is topping charts.

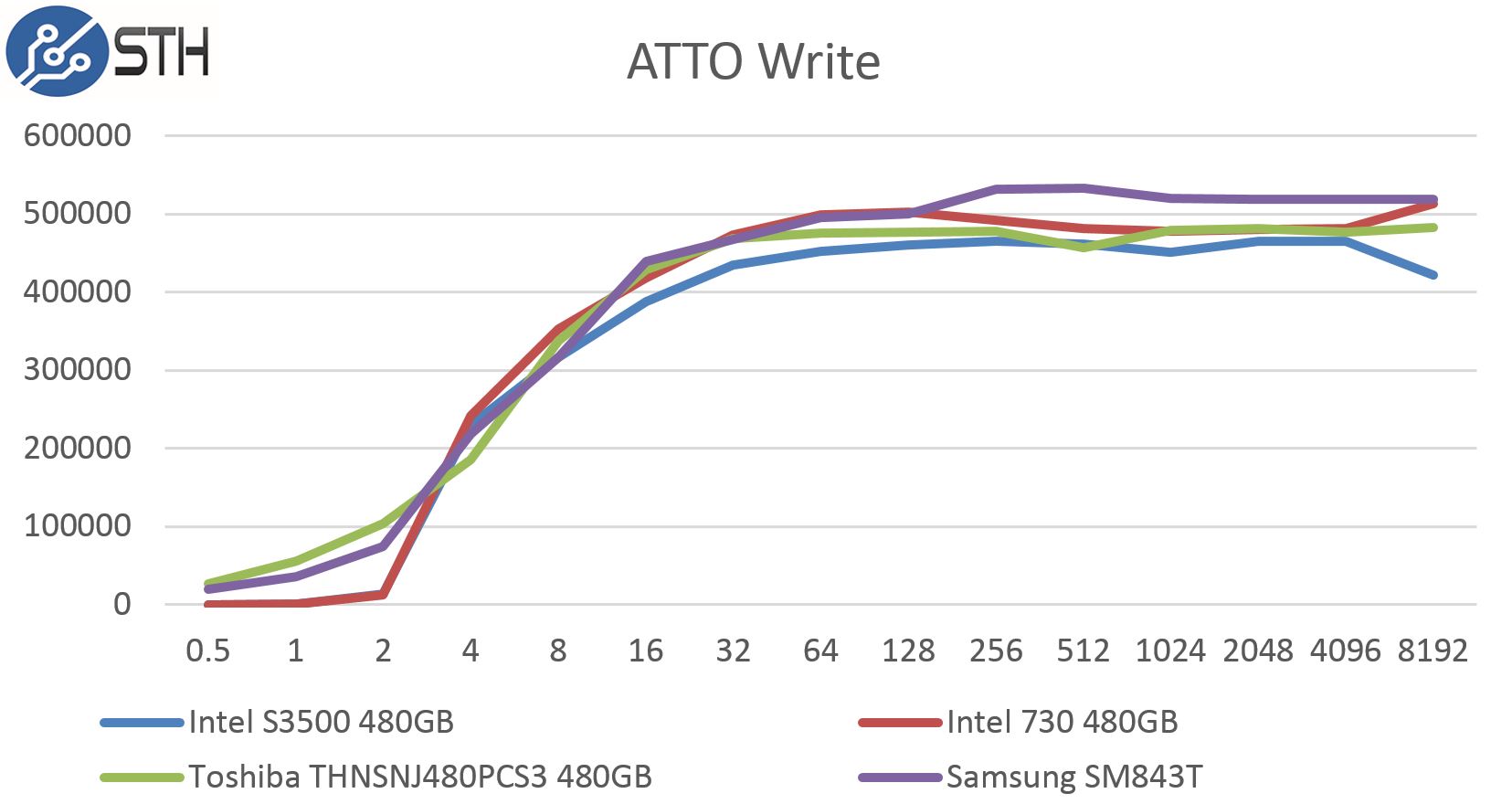

Samsung SM843T 480GB ATTO Write Benchmark Comparison
Samsung SM843T 480GB ATTO Write Benchmark Comparison

On the write side, from around the 32k transfer size the Samsung drive easily outpaces the competition.

Conclusion

Overall the Samsung SM843T performs fairly well. Like all SSDs, we do see some access patterns that the drive is optimized for. With ~2 DWPD of write endurance, these are not heavy write optimized drives. These days, “write optimized” drives often start in the 10 DWPD/ 5 years and scale up significantly from there so it stands to reason the SM843T is tuned more for read performance. Samsung has released the SM853T which we are hoping to get soon for reviews. We did just want to provide the SM843T as another point in our data set.

3 COMMENTS

  1. We had many of these at work. Intel controller direct was much faster than some of the lower numbers you had. On LSI HBA and RAID we saw very less performance than you did. Even setting manual alignment. We now use mainly as web server drives. Great Joomla hosting drives.

    We have over 100 installed 1 doa no other failures so maintenance has been very much good for us

  2. Yeah, those are nice, misunderstood drives. Basically a 840Pro with supercap. Unfortunately, the firmware does not ignore the write sync command, thus write performance isn’t as good. The best way to use those is to shortstroke 480GB down to 400GB and have PCI-e NVRAM or NVMe P3700 as ZILs.

  3. Hi….does anyone know where I can get the latest firmware for the Samsung SSD SM843T 480gb. We have the original firmware and we are trying to solve a problem.

    We have two different firmware versions and I want to update the older ones to the most recent firmware.

    DXM85W3Q & DXM87W3Q are the versions we have. I would like all of them to be the 87’s.

    Thanks for your help.

    Brian
