Minisforum N5 Pro Topology

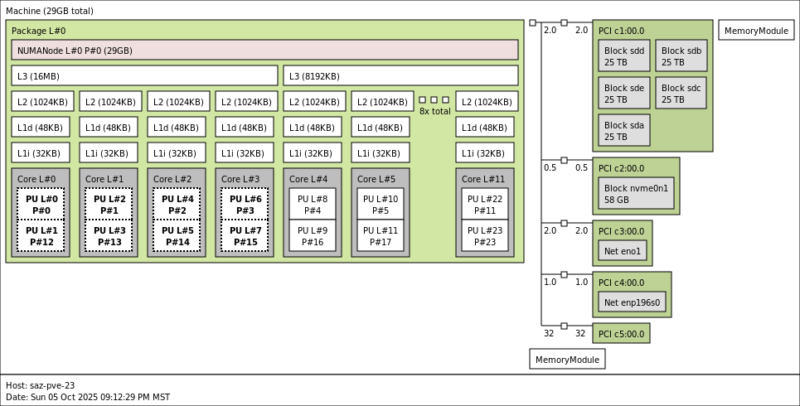

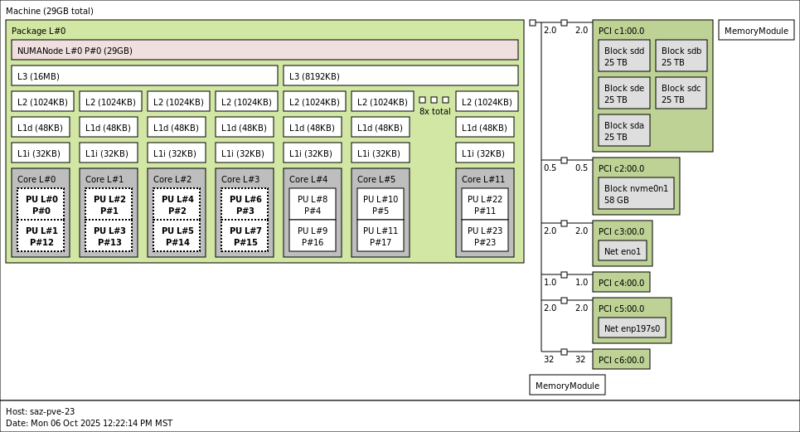

In terms of the topology, here is the system with five hard drives and a boot SSD.
Here we can see the 4-core Zen5 cluster with 16MB of L3 cache and the 8-core Zen5c cluster with 8MB of L3 cache. For many NAS applciations, having 4MB per core does not make a big difference. What does make a big difference, especially if you run containers or VMs on here, is having 12-cores and 24 threads of Zen5 compute.
As a quick aside, the 25TB drives are actually 28TB Seagate HAMR drives we shucked from our Seagate Expansion 28TB External Hard Drive enclosures and worked great in here.
You may also notice another PCIe device in that one. We installed a Realtek RTL8127 10Gbase-T NIC as well.

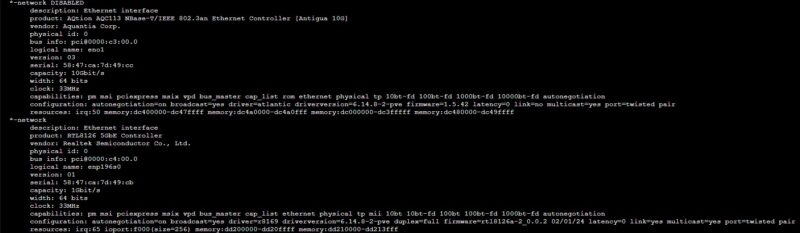

On the networking side, here is the shot of both the Marvell AQC113 10GbE and the Realtek RTL8126 5GbE NICs.
There is actually quite a bit going on here.
Minisforum Has NAS Software?

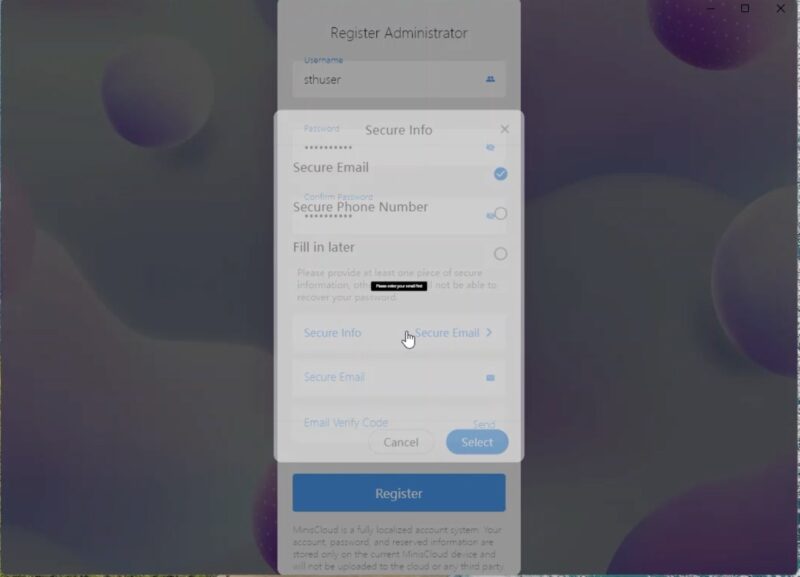

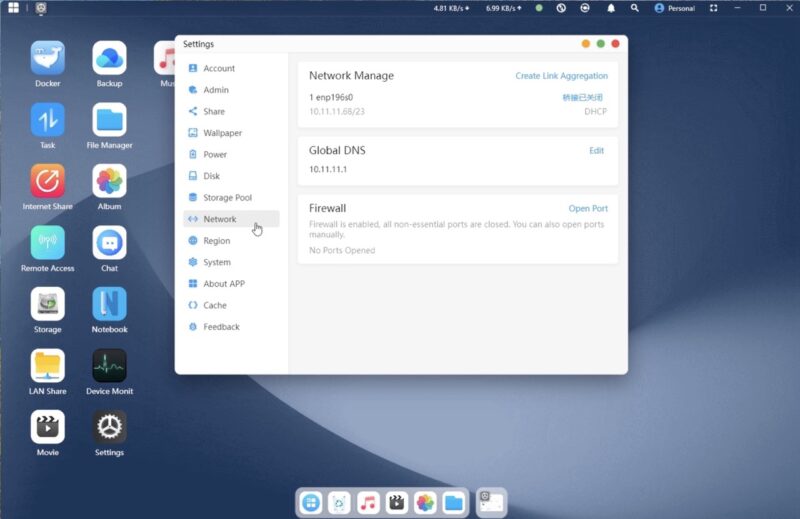

On the software side, Minsform has MinisCloud. There were certainly some ups and downs with this. I will say, it was much better than I expected it to be in terms of functionality. On the other hand, it required downloading an app that got flagged by Microsoft Defender. It also asks for quite a bit of information during setup which we do not love. You also have to use those desktop applications for setup as you cannot just go to web browser and put in an IP address and get going like you can with other systems.

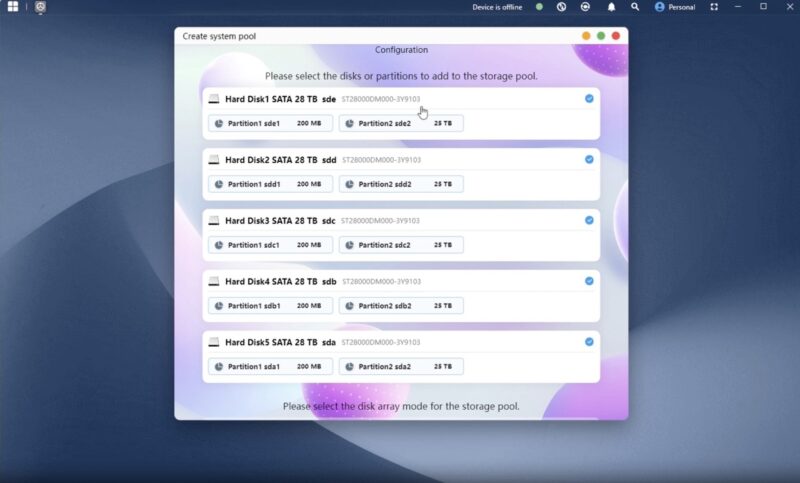

Still, once in it was easy to figure out what was going on and the GUI worked for setup.
Still, some aspects were not fully translated to English.

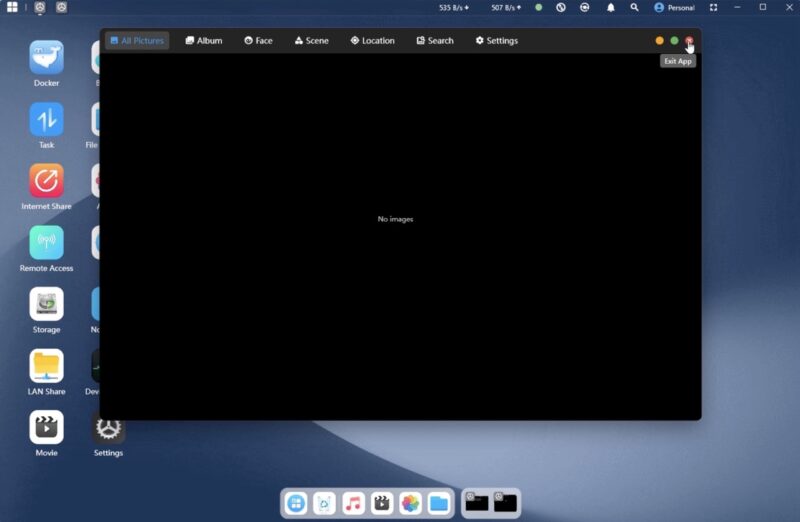

To Minisforum’s credit, there are applications like AI face recognitiion in the photo app which can be useful. These are the types of applications that are pushing for the use case of having AI compute in a NAS like this.

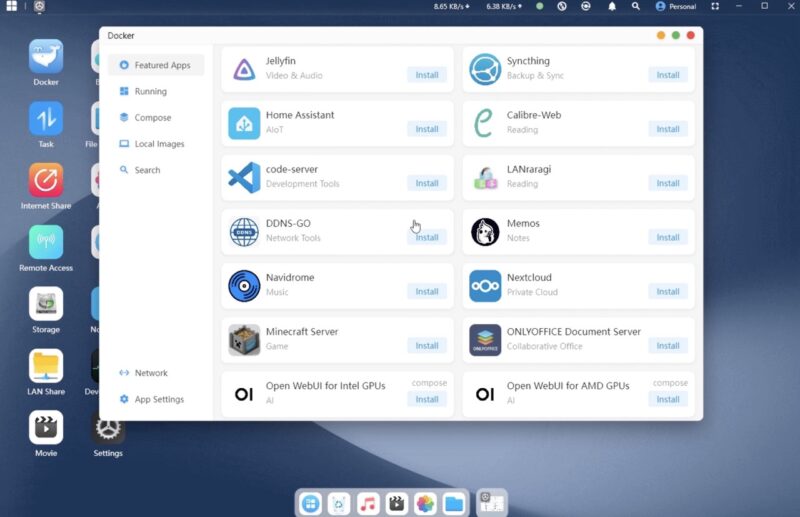

Also, somewhat neat, is that we quickly got Open WebUI up and running for a little local chatbot experience which is always fun.

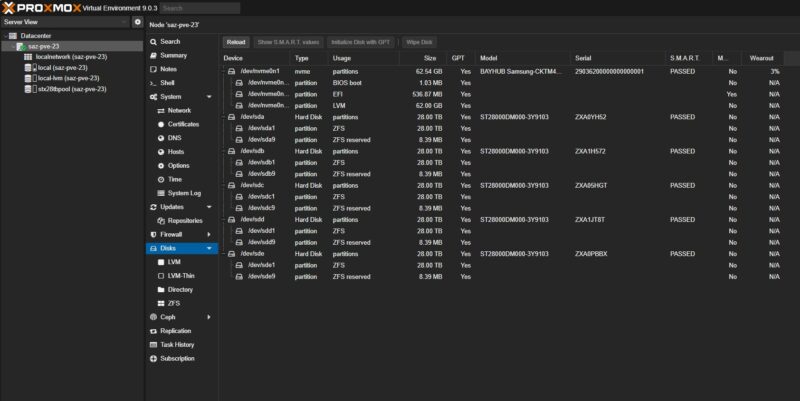

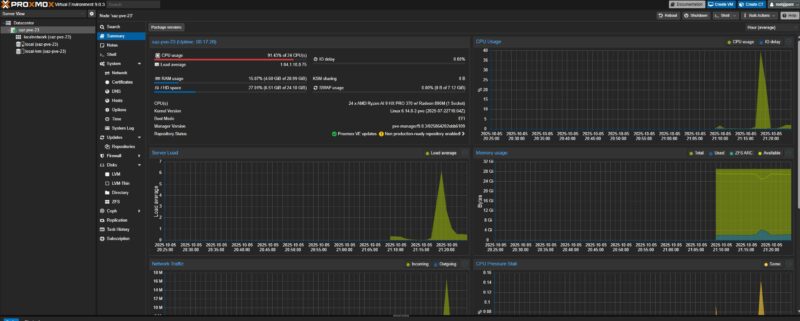

Of course, if you have an OS you prefer, you can just load that. We used the latest Proxmox VE 9.0 here.
Proxmox saw the drives and the NICs, except for the RTL8127. That RTL8127 we had to add drivers for, but it was via an add-in card.
Next, let us talk a bit about performance.
Minisforum N5 Pro Performance

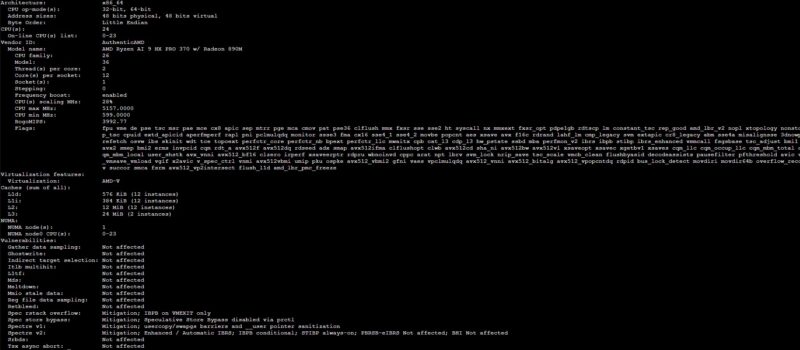

On the performance side, we have the AMD Ryzen AI 9 HX Pro 370.

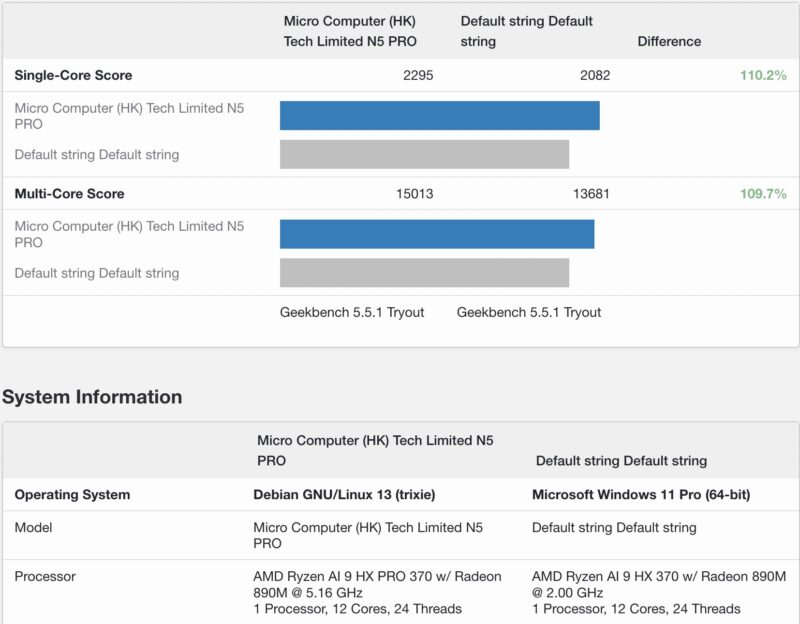

This is an awesome CPU. Something else that we saw, which was just interesting, is that when we saw the Geekbench performance it was quite good. Just giving you some sense, here it is on Geekbench 5.5.1 albeit with the new Proxmox VE 9 on the N5 Pro and Windows 11 on the Acemagic F3A with the AMD Ryzen AI 9 HX 370.
A newer Linux kernel provides an an advantage here, but the bigger takeaway is that the CPU performance is really competitive in the HX 370 space. Perhaps better said, sometimes we see CPUs perform worse for power limitations in NAS units. That was not the case here, at all. We also get modern video codecs, and an AMD Radeon 890M iGPU that we have shown is capable of running esports games quite well.
Now that AMD has the AMD Ryzen AI Max+ 395 out (we have more reviews of those systems coming) which has a bigger CPU and GPU, the 370 class is not the top-end. The Max+ is a different beast. Still, this is an extremely capable part and the Pro version having ECC memory support puts this in another class. As the third HX 370 class system we have reviewed, the most exciting aspect might simply be that it is the Pro version, and available in this NAS.
Next, let us get to the power consumption.
