Minisforum N5 Pro Internal Hardware Overview
The compute tray pulls out of the front of the system after the bottom two screws and front magnetic cover are removed. Once it is out, you are likely to see a familiar layout if you have seen pieces like those from our MS-01 and MS-A2 reviews.

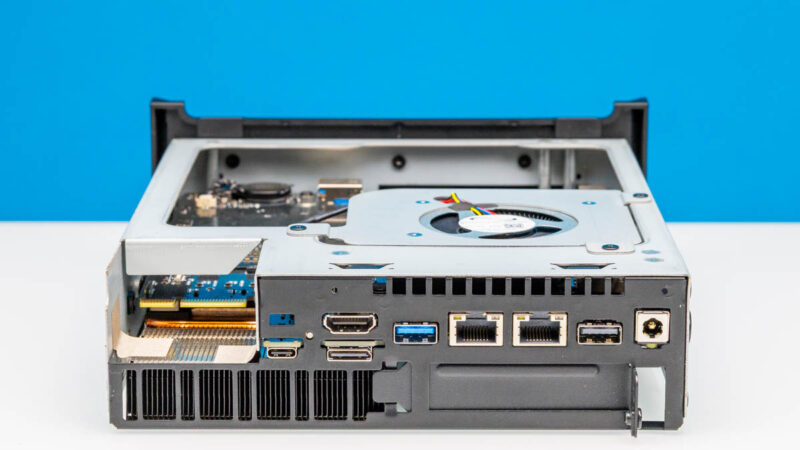

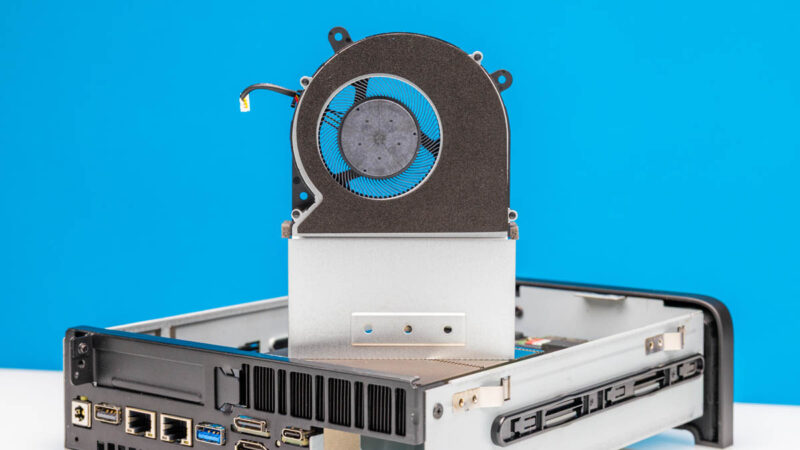

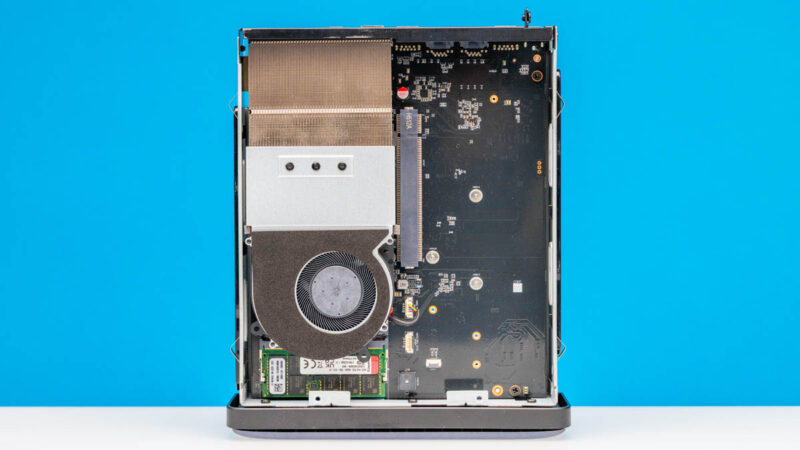

Removing the blower fan via three screws, we can see the memory and CPU heatsink.
The CPU in this case is the aptly named AMD Ryzen AI 9 HX Pro 370. We will get into more of what that means from a CPU side in the peformance section, but it is a fast CPU with a solid iGPU and NPU.

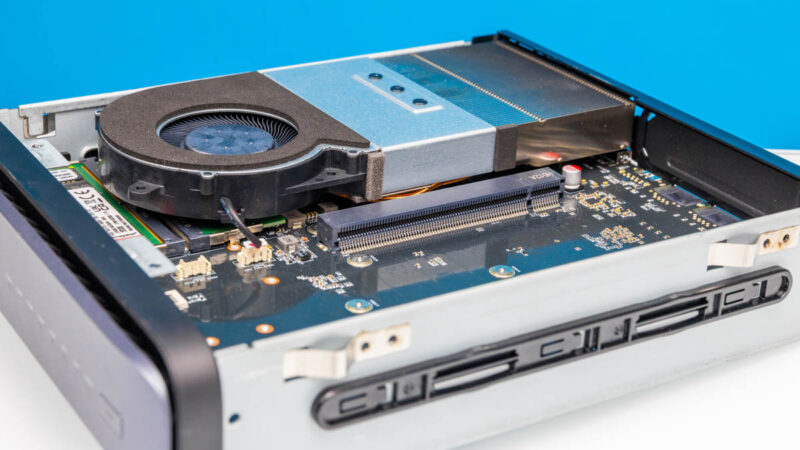

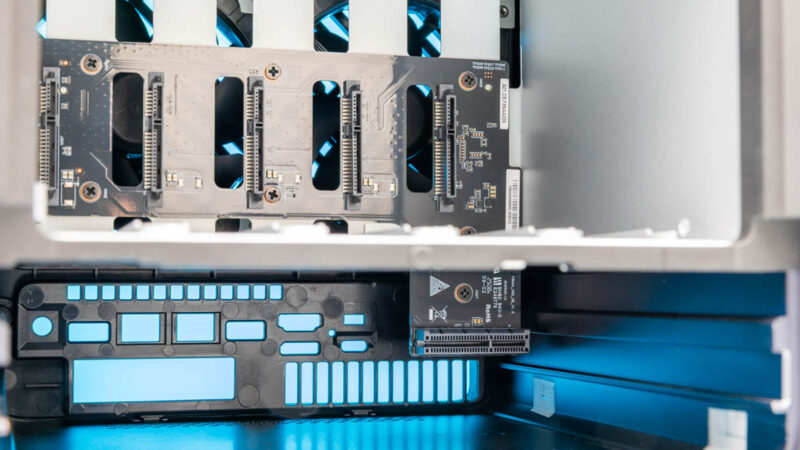

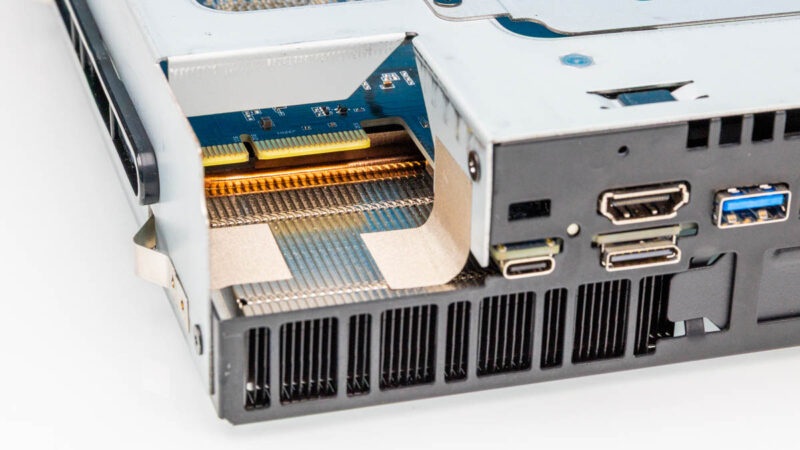

Here is a quick profile of the cooler and of the PCIe slot. The low profile PCIe slot is a PCIe Gen4 x16 physical slot but is only x4 electrical. This gives one the ability to add more storage either internal SSD or external via external connectors, more networking, or even a small and low power GPU. 25GbE SFP28 is a good option as an example of what we used in here. The one caution we would have is that many high-end data center focused cards are passively cooled, and this does not have the best airflow. If you find an actively cooled card with a blower style fan in a low profile single slot design, that is probably going to be the winner here if you go to higher power. Otherwise, we would strongly suggest using lower power cards.

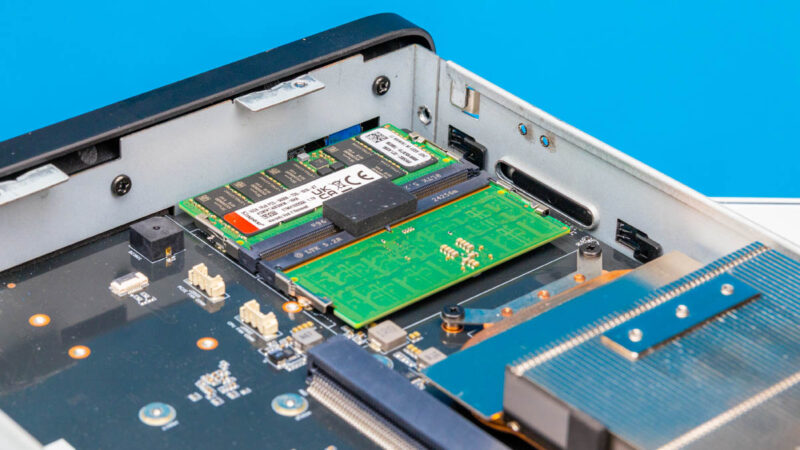

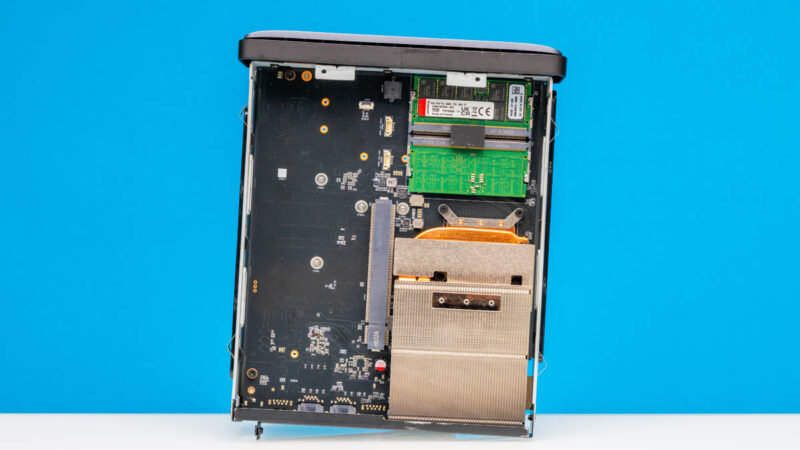

The memory is neat. Here we have two 16GB DDR5 SODIMMs for 32GB, but there is a twist. Since we have the Ryzen PRO series processor, we have ECC memory support and Minisforum sells these with up to 96GB (2x 48GB) of DDR5 ECC SODIMMs. That is a standout of this platform as it is a modern Zen 5 CPU, with ECC support.
Flipping the compute tray over, we can see the data and power connectivity to the SATA side.
The connector slides into a slot in the chassis and provides power and data connectivity to the top section. This is an elegant design, especially for what is effectively a first-generation Minisforum NAS.
Here is a close up of the connector.

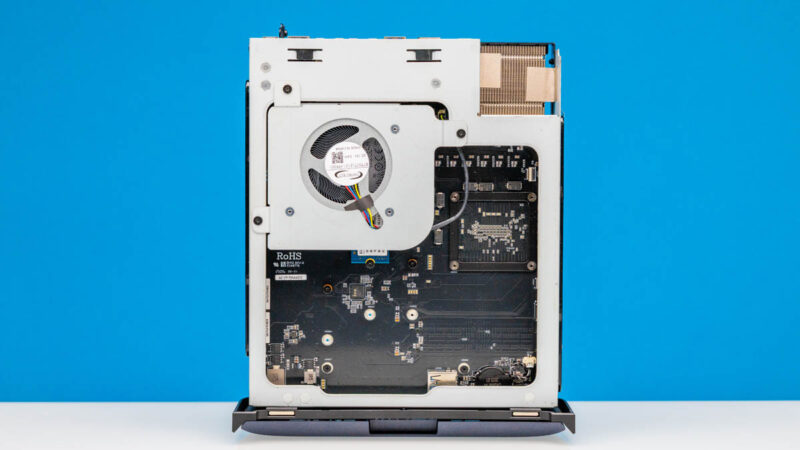

The other side of the compute tray is for storage.

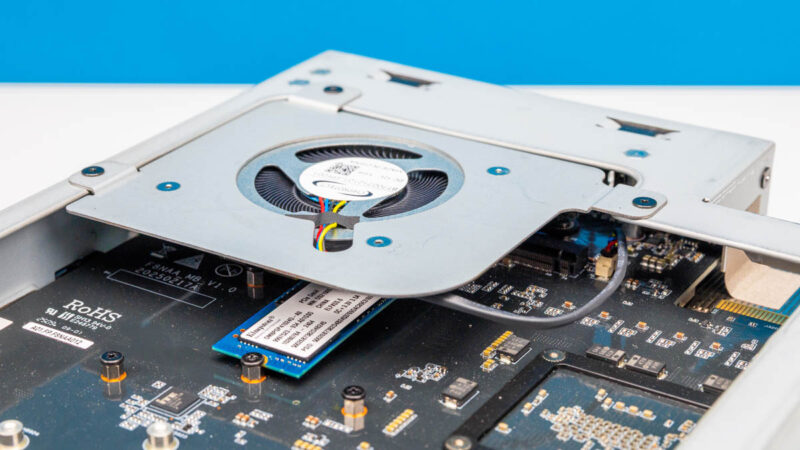

There is another fan on this side to help circulate air here so it does not become a stagnant oven.

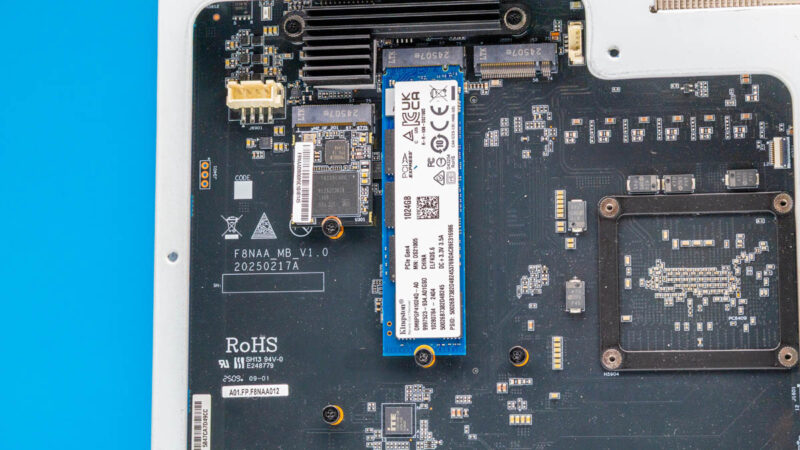

Under the fan, we have three M.2 drives. There is one that came with base OS storage then two data drives. The two data M.2 drives fit either 2280 (80mm) or 22110 (110mm) NVMe SSDs.
Here is a look from another angle including the white power connector on the side.
That is for the U.2 adapter board.

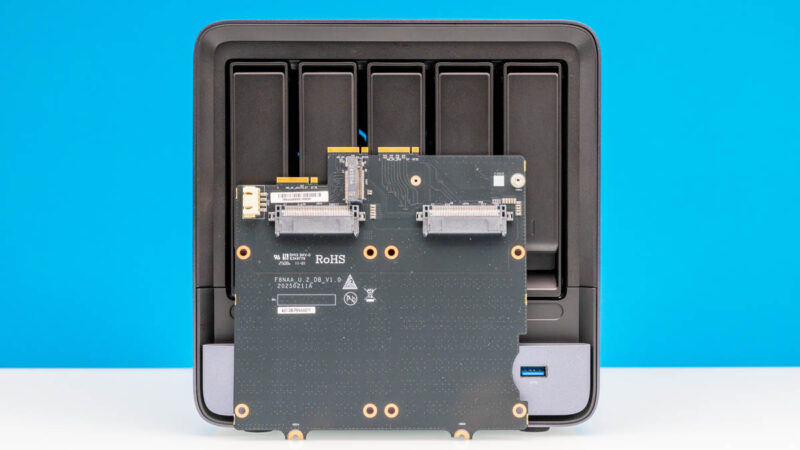

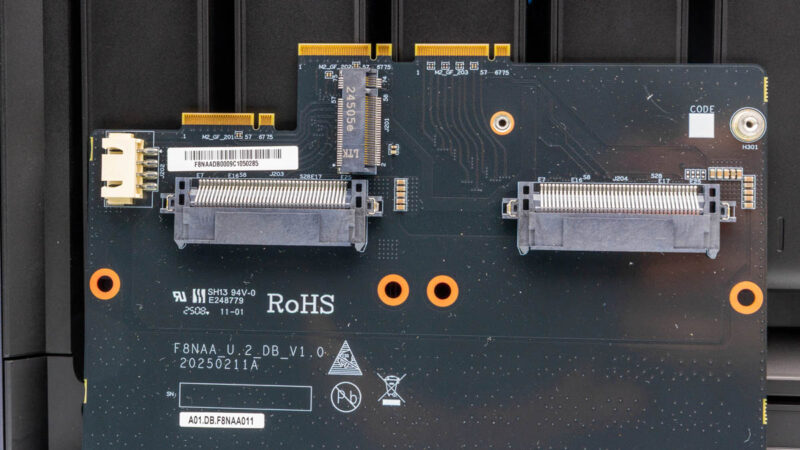

The U.2 adapter board is a custom board that plugs into the three M.2 slots and provides one M.2 slot for an OS boot SSD, then two 7mm U.2 slots for data SSDs.

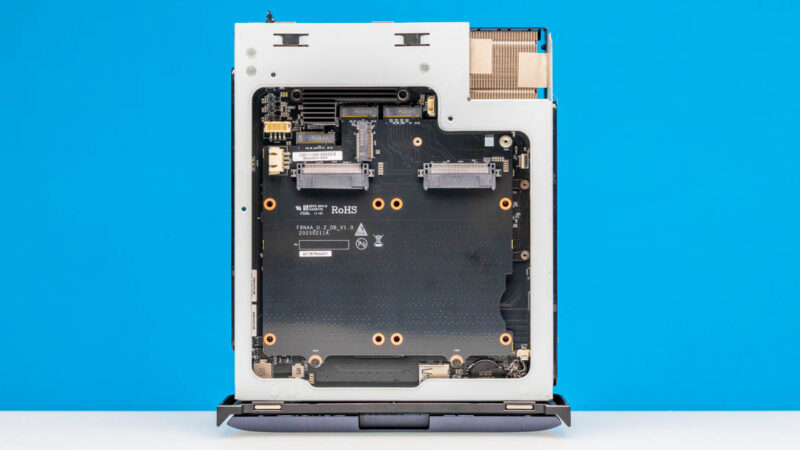

Here is the bare board installed.

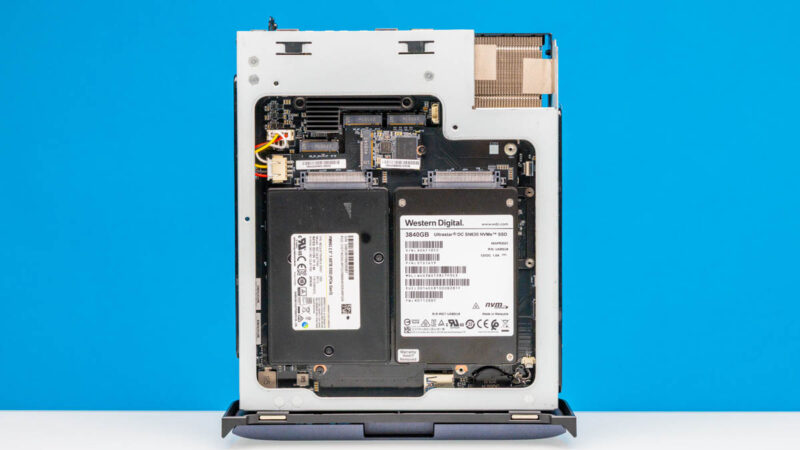

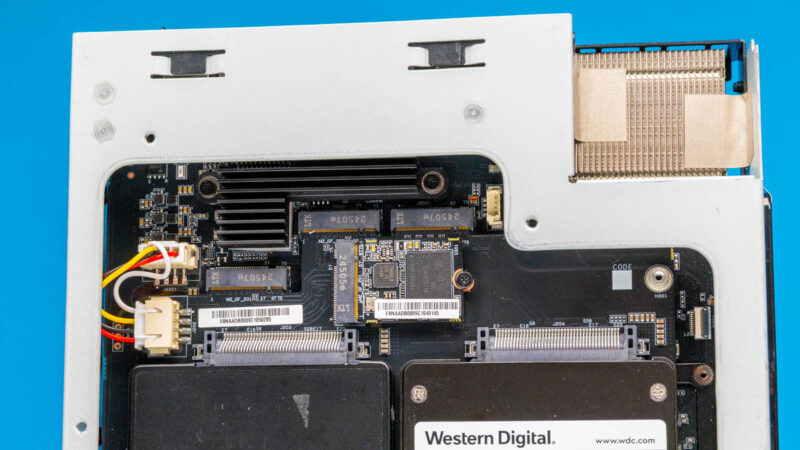

Here it is with power hooked up and drives installed.

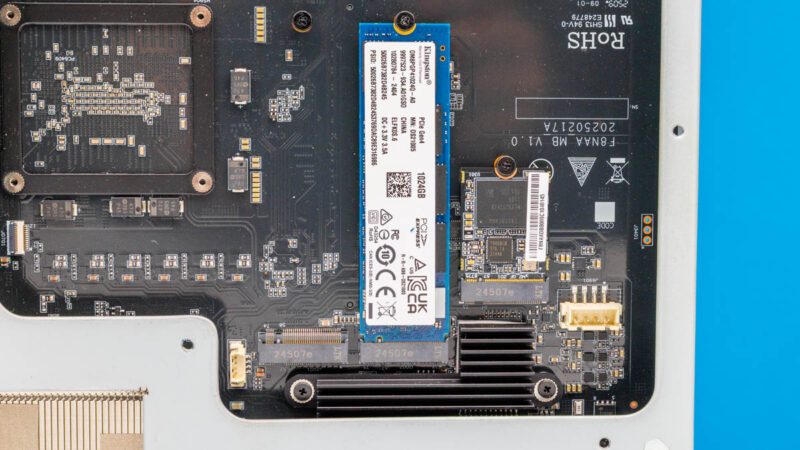

On top we have the M.2 for our OS boot SSD.

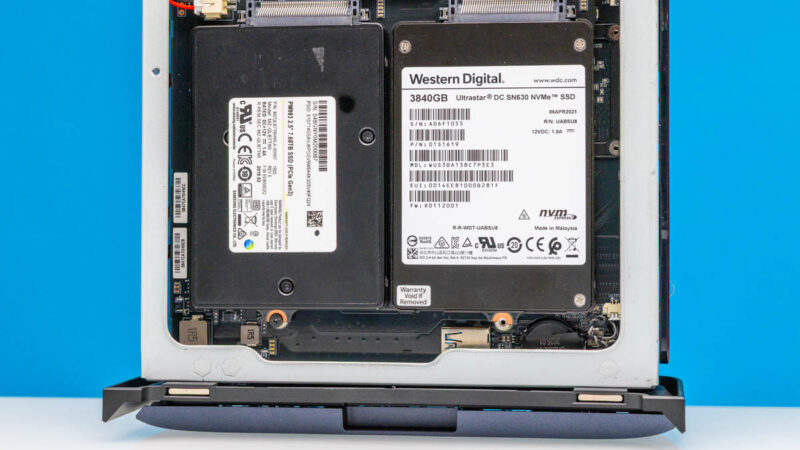

We then have two U.2 SSDs. These are U.2 7mm drive slots which limits what can be done here. 15mm drives are more common and are used for high-capacity drives. 7mm drives tend to run cooler, but also offer a lot less capacity.
Worth noting on the SSD side is that bandwidth is not ideal. There are four PCIe lanes that go between the drives so they are x1 x1 x2 not all three x4. To us, the reason then to use the U.2 drives is potentially capacity while also getting power loss protection. If you wanted an ultra-fast 100GbE NAS, this is going to be the reason that this is not the ideal platform for that.

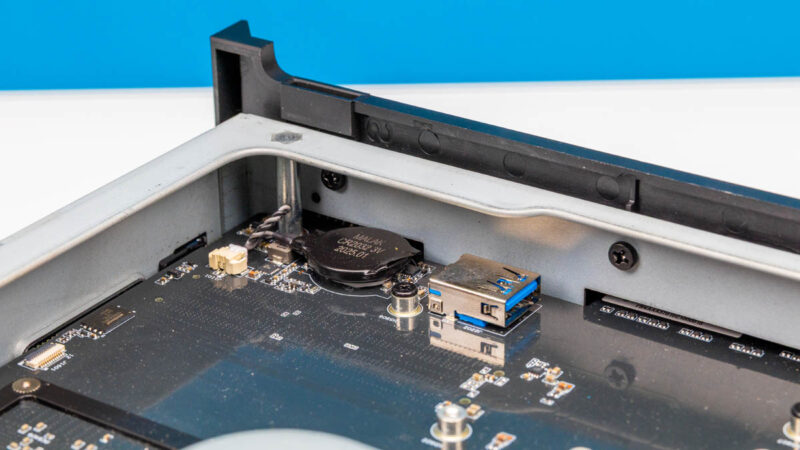

One other small internal feature here is a USB header for those who still use these for internal OS boot or software license key applications.
