Lenovo ThinkCentre M75q Tiny Gen5 Internal Overview
Inside the system, you might be forgiven to think that you are looking at a Dell Micro or HP Mini PC as there are big changes that align with those platforms. Namely, all of the serviceable components are on the top side of the motherboard and are accessed through opening just the top panel.
In the top corner, we get our AMD Ryzen 7 Pro 8700GE. This is an 8-core, 16-thread processor with all P-cores. It also has the AMD Radeon 780M graphics, which is pretty decent and a huge step up if you are coming from older generations of Intel graphics.

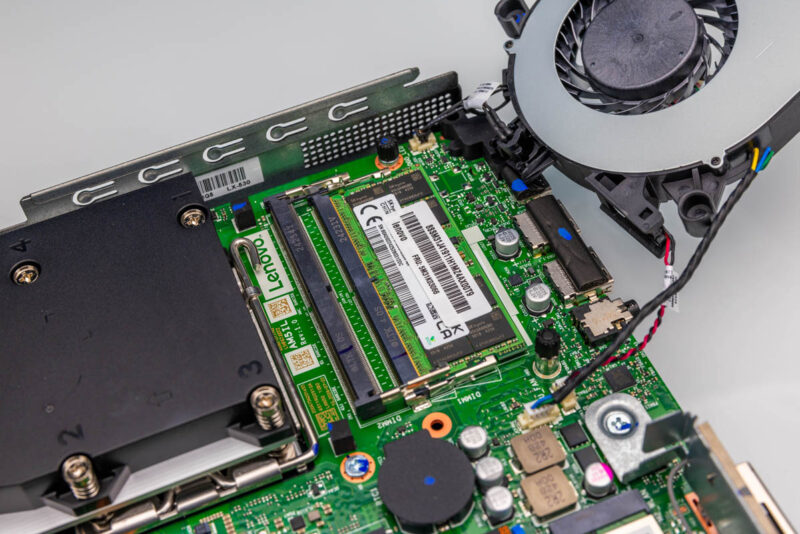

Standard in our system, we got a single 16GB DDR5 SODIMM. This is on the top side in the same place as on a Dell or HP, and unlike other Lenovo Tiny platforms where the memory and M.2 storage are on the back side. Our advice would be to get a second SODIMM as soon as possible. While the system officially supports 64GB, we managed to get 2x 16GB (32GB), 2x 32GB (64GB), 2x 48GB (96GB), and even 2x 64GB (128GB) working, making this the first time in Project TinyMiniMicro history we have had 128GB of RAM in a 1L PC. More on that in Key Lessons Learned.
The fan module for Lenovo is notable insofar as it has tool-less removal, but it is also a bit of a pain. There are three sets of wires going to the fan module. That is for the fan, the speaker, and the little LED light that lights up the ThinkCentre red “i” dot on the front.
We mentioned the coin cell or button battery in the context of the large warning label. When this system arrived, it did not boot, and there was no POST screen. Often on Lenovo Tiny systems you can just hold the power button for 15-30 seconds and that helps do a reset. That did not work. It turns out the CR2032 battery was dead, and replacing it with a new one worked.
On the bottom, we get two M.2 slots for up to M.2 2280 SSDs. Lenovo brings its tool-less retention mechanism which is great. We wish every mini PC used this. If you wanted to add 5GbE or 10GbE networking, we tried using this slot for a M.2 adapter. That worked and you can then use one of the rear optional slots for the port, but you might have to 3D print a bracket. Still, it is an option for folks looking for faster networking since Lenovo has only low speed networking here.
The SSD that came with our system is a Samsung PM9C1a 512GB drive. This is a fairly low-cost drive. If you wanted to add another SSD, or replace this drive, then there is an advantage to the top placement: You can fit SSDs with low-profile heatsinks. We have seen some huge M.2 heatsinks, but you can get at least something cooling better than just using a bare drive in this system.
For our WiFi 6E and Bluetooth, we get the RZ616. Lenovo includes the retention bracket to ensure the antenna connectors do not pop off.
We showed the external antenna. Here is the internal one on the front of the chassis.
We can also see the little speaker attached to the fan assembly.
Here is a quick look at the optional DisplayPort interface added.
One item you might have noticed is that the SATA connector is de-populated from the system above.
Next, let us get to the performance.
