Icy Dock ToughArmor MB699VP-B 4-Bay 2.5” NVMe U.2 SSD Mobile Rack Review

3
Icy Dock ToughArmor MB699VP B 4 Bay U2 NVMe Hot Swap Enclosure Front
Icy Dock ToughArmor MB699VP B 4 Bay U2 NVMe Hot Swap Enclosure Front

We have recently looked at a new product from Icy Dock, the ToughArmor MB516SP-B 16-Bay Hot Swap Mobile Rack; now we have another new product called the ToughArmor MB699VP-B. The MB699VP-B offers 4x hot-swap drive bays for 2.5” NVMe U.2 SSD’s in a single 5.25″ hot swap bay form factor.

The ToughArmor MB699VP-B will only take one 5.25” device bay and handles the bulky cables and extra power cables that U.2 NVMe SSD’s require with ease. Many of our workstation cases and a handful of server cases have 5.25” device bays that often go unused; this makes the MB699VP-B very handy if you are planning on using U.2 NVMe SSD’s in your build.

Icy Dock ToughArmor MB699VP-B Specifications

To get things started, it is worth looking at the key specs for the chassis.

Icy Dock ToughArmor MB699VP B 4 Bay U2 NVMe Hot Swap Enclosure Specifications
Icy Dock ToughArmor MB699VP B 4 Bay U2 NVMe Hot Swap Enclosure Specifications

The keys here are that this chassis handles up to 4x U.2 NVMe drives and3-yearear warranty.

Icy Dock ToughArmor MB699VP-B Contents

The standard brown cardboard box that we see in many Icy Dock products completes the outfit and supplies us with basic product information printed on the outside.

Icy Dock ToughArmor MB699VP B 4 Bay U2 NVMe Hot Swap Enclosure Retail Box Front
Icy Dock ToughArmor MB699VP B 4 Bay U2 NVMe Hot Swap Enclosure Retail Box Front

At the back of the retail box, we find the product specifications for the MB699VP-B.

Icy Dock ToughArmor MB699VP B 4 Bay U2 NVMe Hot Swap Enclosure Retail Box Back
Icy Dock ToughArmor MB699VP B 4 Bay U2 NVMe Hot Swap Enclosure Retail Box Back

Reference graphics printed on the retail box side, show product features and cable connection locations.

Icy Dock ToughArmor MB699VP B 4 Bay U2 NVMe Hot Swap Enclosure Retail Box Side
Icy Dock ToughArmor MB699VP B 4 Bay U2 NVMe Hot Swap Enclosure Retail Box Side

The ToughArmor MB699VP-B is wrapped in a clear plastic bag and inserted between two large foam packaging inserts.

Icy Dock ToughArmor MB699VP B 4 Bay U2 NVMe Hot Swap Enclosure Package
Icy Dock ToughArmor MB699VP B 4 Bay U2 NVMe Hot Swap Enclosure Package

Accessories included with the kit include two bags of screws used for mounting the ToughArmor MB699VP-B into a case and installing U.2 NVMe SSD’s onto the drive trays.

Icy Dock ToughArmor MB699VP B 4 Bay U2 NVMe Hot Swap Enclosure Accessories
Icy Dock ToughArmor MB699VP B 4 Bay U2 NVMe Hot Swap Enclosure Accessories

For those that like to label each drive a package of drive ID labels provides a simple and effective way to do this.

Let’s move on to the ToughArmor MB699VP-B itself, starting with the exterior.

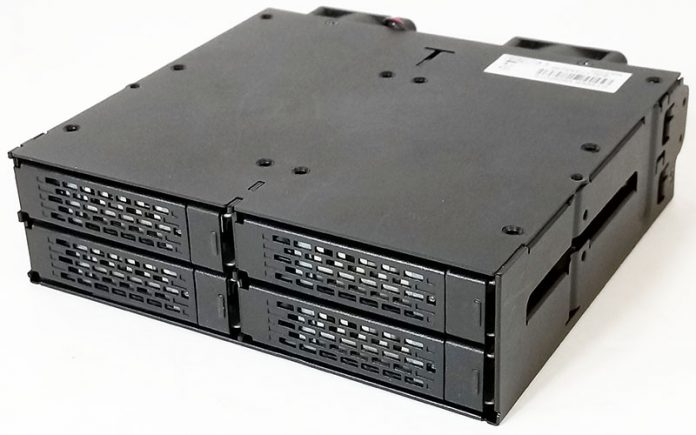

Icy Dock ToughArmor MB699VP B 4 Bay U2 NVMe Hot Swap Enclosure Front
Icy Dock ToughArmor MB699VP B 4 Bay U2 NVMe Hot Swap Enclosure Front

The ToughArmor MB699VP-B has a metal construction and weighs in at 911.2g.

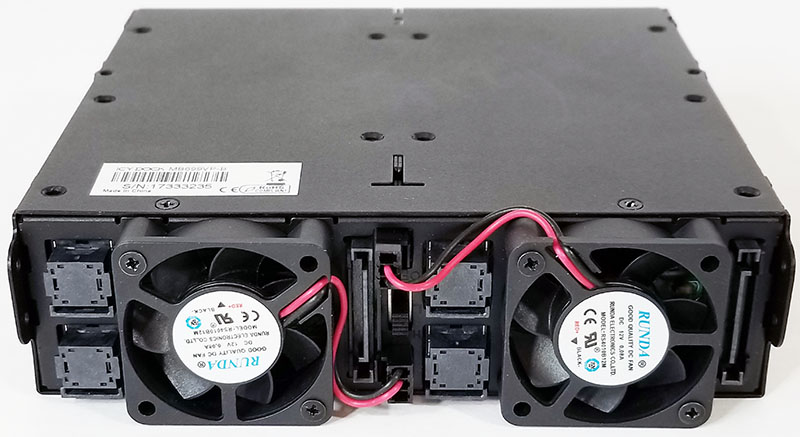

Icy Dock ToughArmor MB699VP B 4 Bay U2 NVMe Hot Swap Enclosure Back
Icy Dock ToughArmor MB699VP B 4 Bay U2 NVMe Hot Swap Enclosure Back

At the back, we find dual 40mm fans with three-speed fan controls provide cooling to the cage. Connections include four mini SAS HD (SFF-8643) ports offer up to 32Gb/s throughput per channel, two SATA power connectors supply power to the drives, one connector on each side powers two drives each.

A major note here: these SFF-8643 connectors are also used in SAS3 infrastructure. That has to do with the signaling performance. Unless you are using a specific controller designed for NVMe / SAS3, such as the Broadcom 9400 series, you do not want to hook these ports up to a SAS controller.

The MB699VP-B cooling system and LEDs will power on with drives installed in the bays utilizing Icy Docks Active Power Technology (APT). Removing drives will turn off the un-needed fans and LEDs.

Icy Dock ToughArmor MB699VP B 4 Bay U2 NVMe Hot Swap Enclosure Insert Drive Tray
Icy Dock ToughArmor MB699VP B 4 Bay U2 NVMe Hot Swap Enclosure Insert Drive Tray

Removed drive trays unlock at the push of a button and easily slide in and out.

Icy Dock ToughArmor MB699VP B 4 Bay U2 NVMe Hot Swap Enclosure Drive Tray
Icy Dock ToughArmor MB699VP B 4 Bay U2 NVMe Hot Swap Enclosure Drive Tray

Hot-swappable EZ slide trays offer solid construction that protects drives installed inside. The full metal drive trays utilize Icy Docks Anti-Vibration Technology (AVT) which adds additional drive protection.

Icy Dock ToughArmor MB699VP-B Performance

Hot-swap cages are usually fairly simple devices so we wanted to perform a quick sanity test with and without the Icy Dock ToughArmor MB699VP-B to validate that the introduction of the cage does not impact performance.

4x NVMe Intel DC P3700 Direct Attach V Icy Dock Performance
4x NVMe Intel DC P3700 Direct Attach V Icy Dock Performance

Back in the data center, we loaded our MB699VP-B with 4x Intel DC P3700’s, and stress tested the full cage. The above graph shows aggregated results of all four drives. There is very little difference in the four.

Conclusion

One word of caution here is that NVMe hot-swap is still a challenge in some systems. As you may have seen from our Single Socket AMD EPYC 7000 FAQ Answers to Common Questions just because a CPU says it supports NVMe hot-swap does not mean that hot-swapping a U.2 drive will not crash the system. There is a lot of work that must happen at a system level to ensure U.2 hot-swap works properly.

Icy Dock ToughArmor MB699VP B 4 Bay U.2 NVMe Hot Swap Enclosure Main Picture
Icy Dock ToughArmor MB699VP B 4 Bay U.2 NVMe Hot Swap Enclosure Main Picture

We have used Icy Dock products in many of our builds here in the lab; they offer many hallmarks we have come to expect from Icy Dock. Ease of install, metal cages that do not flex, excellent airflow through the cage and hot-swappable drive bays. With dual 40mm fans for cooling, we find noise levels even at full speed, make little noise at all. As most workstation cases still have 5.25” bays included, some more than one, drive bays like the MB699VP-B can extend high-speed storage options even further with ease of use and accessibility of hot-swap drives.
