AMD EPYC 4005 “Grado” Performance is Amazing
When it comes to performance, the AMD EPYC 4005 is awesome. To be fair, we really wanted to test the AMD EPYC 4545P at 65W because that one is the SKU that maximizes the cores per socket while minimizing power consumption. Still, we had the AMD EPYC 4565P a 170W 16-core part. We also got the AMD EPYC 4585PX hours before this piece went live, but that did not make it. The Intel Xeon 6369P we finally got late but that made it into this piece versus the previous EPYC 4004 pieces.
There are two lenses here. First, we are talking about 95W Intel Xeon parts with a 6W PCH versus 170W TDP AMD EPYC CPUs. So these are not the same power level. At the same time, they are also not the same performance by any means. The AMD EPYC 4005 series simply has more cores. Normally we break these tests out by test and discuss each. Here, it feels somewhat pointless. The gap from the top-bin entry Intel Xeon to AMD EPYC 4005 is huge.
Still, this is a $589 AMD EPYC 4565P versus a $606 Intel Xeon with a $57 Intel C266 PCH. It is not close.
Also worth noting here is just the difference between, the Intel Xeon E-2488 and Xeon 6369P is really small. We have been calling this a 100-300MHz speed bump but mostly a branding refresh. If you see the above chart, then look at the features, that feels like an apt description. On the other hand, the Zen 4 to Zen 5 was a much more notable jump on the EPYC side even at the same power and core count.

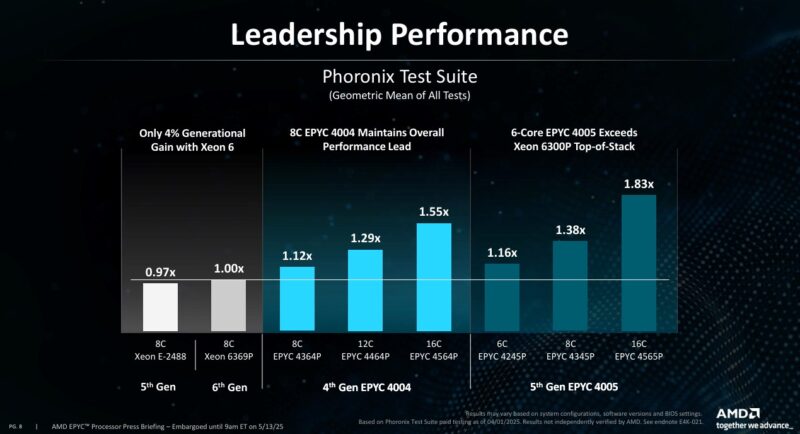

We did not have the entire SKU stack, but AMD had the 6-core and 8-core parts on their chart using Michael’s PTS:
Another way to read this is that at 6 or 8 cores, AMD is still very competitive. These numbers generally align with what we saw. Next, let us discuss power consumption.

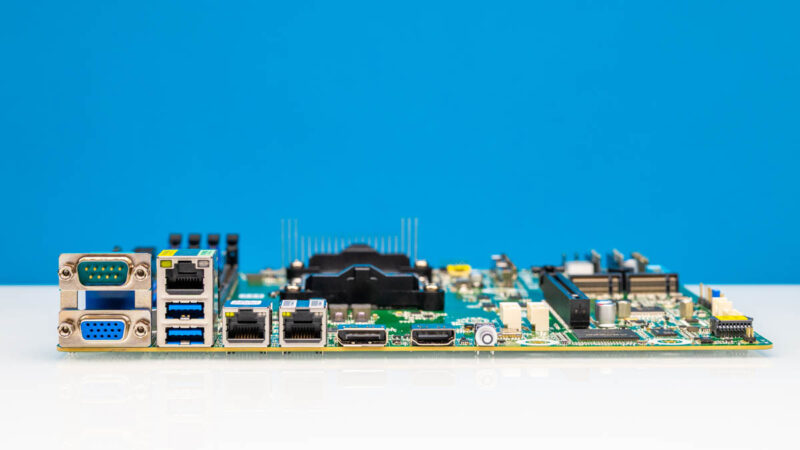

All of the CPU power numbers are great, but we also should take a second and also note that these CPUs have an integrated GPU. If you want to drive a display or two via HDMI or DisplayPort, on the Intel Xeon E side you are most likely getting a low-power dGPU. Here that is native. Many will see the VGA and the BMC and ask why would someone want HDMI, but remember we have seen a Lenovo platform where the management option was essentially to hook up a HDMI cable because small and medium businesses usually had HDMI displays around. Like the Ryzen 9000 desktop series, this is not the high-end integrated graphics, but it is at least something.
Power Consumption
Power consumption is an interesting one. In our test system, we saw power consumption of around 315W which is certainly not low. At the same time, we probably had a bit more RAM than most, and our cooling was for a higher TDP setup. That said, we have seen the 65W parts in platforms that use just over 120W up to around 235W depending on the configuration and especially the cooling being used.
Perhaps the big point here is that with the 65W, AMD and Intel are fairly competitive. Intel Xeon E-2400/ Xeon 6300P platforms may have higher CPU TDP, but they end up being in the ballpark of the total system power consumption as the 65W AMD EPYC 4004/ 4005 systems. The 170W SKUs are different. These use more power and are designed to do so. In many cases, where the performance per core and higher clock speeds are required, AMD just lets the cores run. Also, the 3D V-Cache capability is unique and for many may be worth the power bump alone.
