The title of this one is intentional. The Minisforum MS-R1 is a 12-core Arm mini workstation that is probably the closest we have seen to that magical low-cost developer box. At just over $500 for the 32GB no-SSD version and $599 for the 64GB no-SSD version, the cost is reasonable. It also has two 10Gbase-T ports for 10GbE and a PCIe slot. With all of that said, we have been testing this for some time, and we are not yet ready to do a video on it. Instead, we are going to do a web review. Show you the good, the challenges, and some of the head-scratchers. Buckle in for a lot, especially on the key lessons learned side.
Minisforum MS-R1 External Hardware Overview

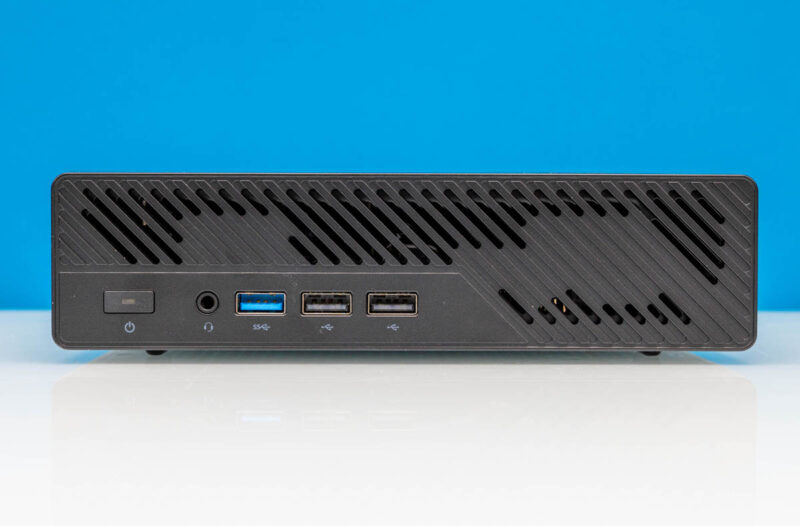

The front of the workstation is exactly as we would expect if you have seen the various MS series systems from Minisforum.
On the front, we get a power button, combo audio jack, and three USB Type-A ports in both USB 3.2 Gen2 and two USB 2.0 ports. As a quick tip, use the USB 2.0 ports for your keyboard and mouse. There are a lot of USB ports in this system, but the USB implementation is not the most bug-free as we will get to in our Key Lessons Learned.

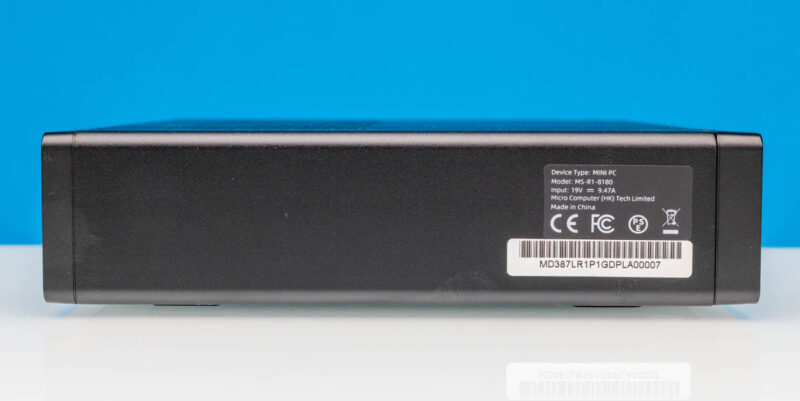

On the sides, we get labels, but not much else.

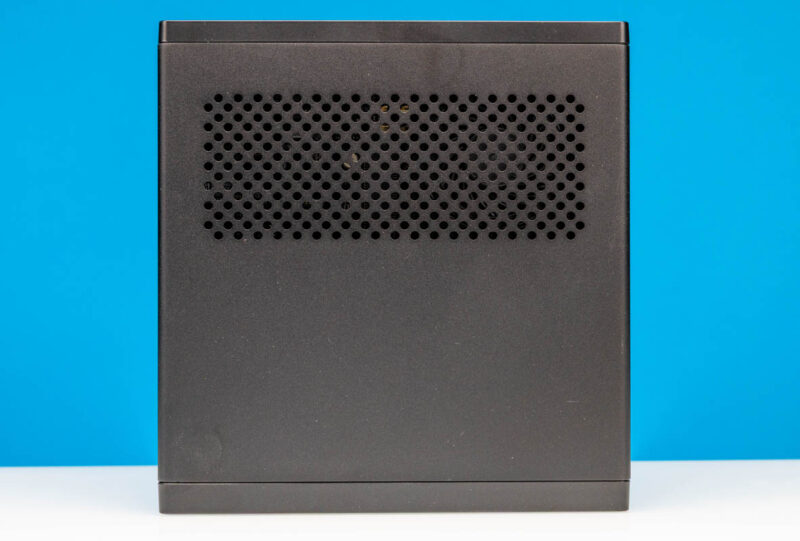

On top, we get a vent for the CPU and PCIe card.

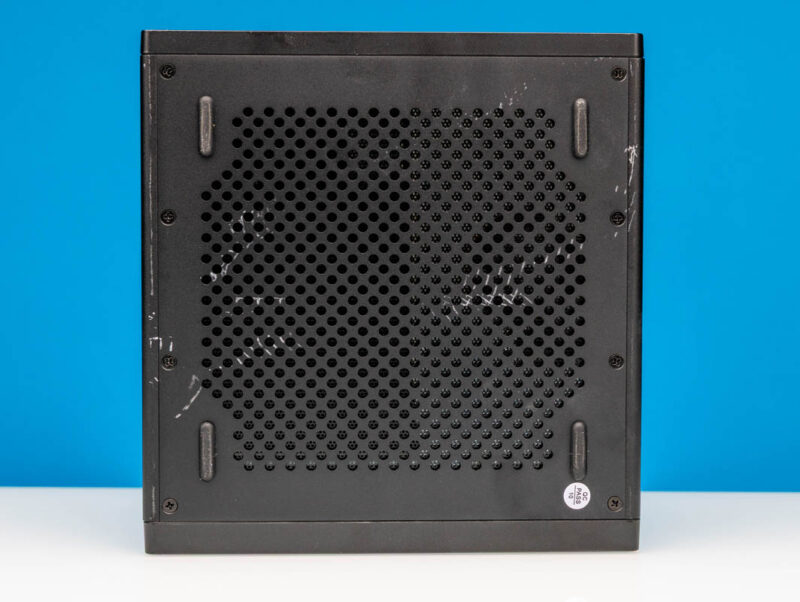

On the bottom, we get four feet. We will get into this more in our key lessons learned, but we ran into a few boot-stopping issues with this system, and we also made the rookie mistake of photographing after testing. So the bottom went to battle with an LG monitor and lost.

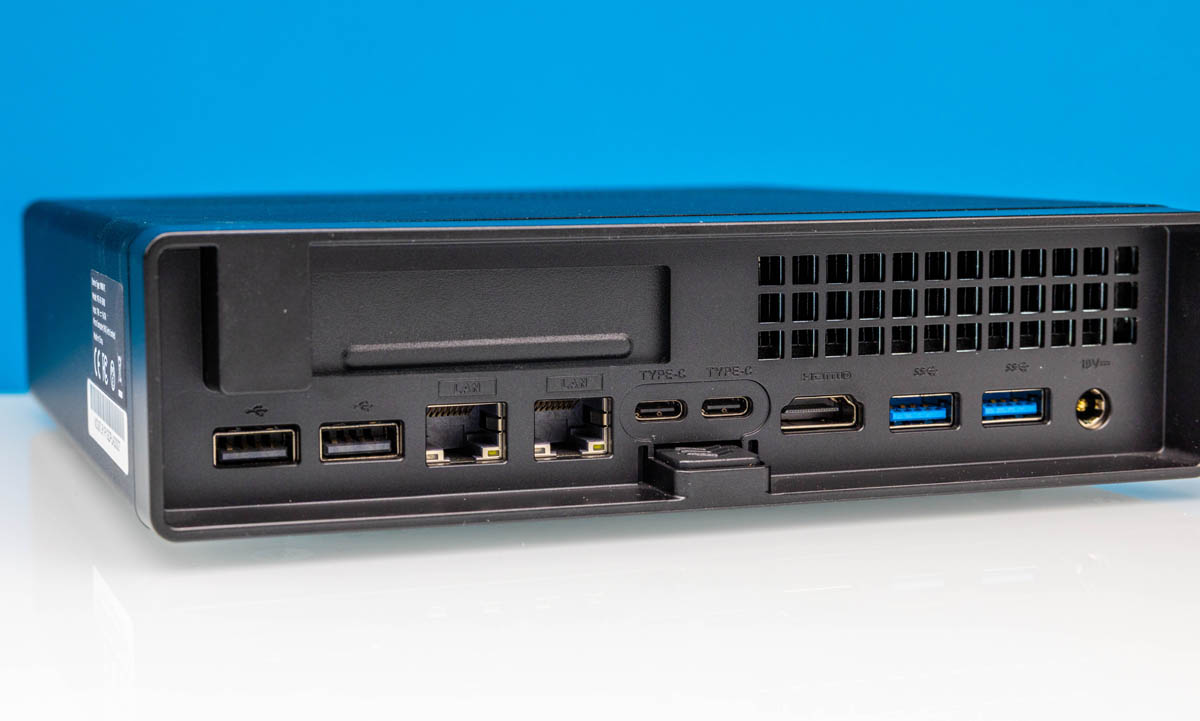

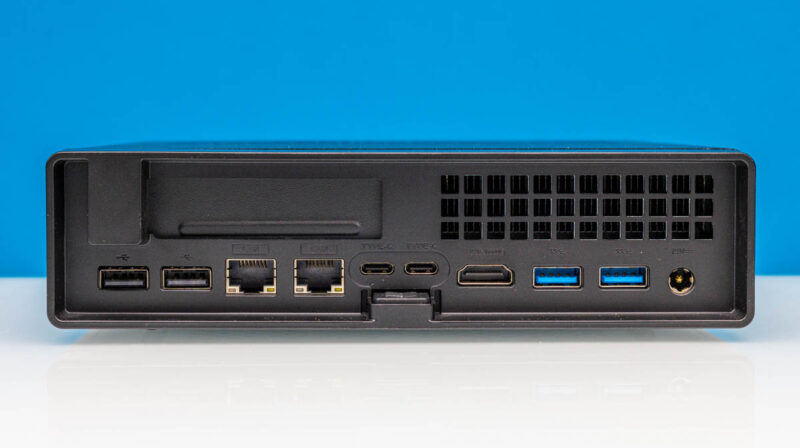

On the rear, we get four more USB Type-A ports, two 2.0 and two USB 3.2 Gen2 ports. There is a HDMI 2.0 port, and two USB Type-C ports that can also do DisplayPort output. The NIC ports are Realtek RTL8127 10Gbase-T ports, so this has dual 10GbE.
Something we really like about this is that the system has the pull-out design like the Minisfourm MS-01 and MS-A2, but unlike the MS-A1.
Let us get inside next.
Minisforum MS-R1 Internal Hardware Overview

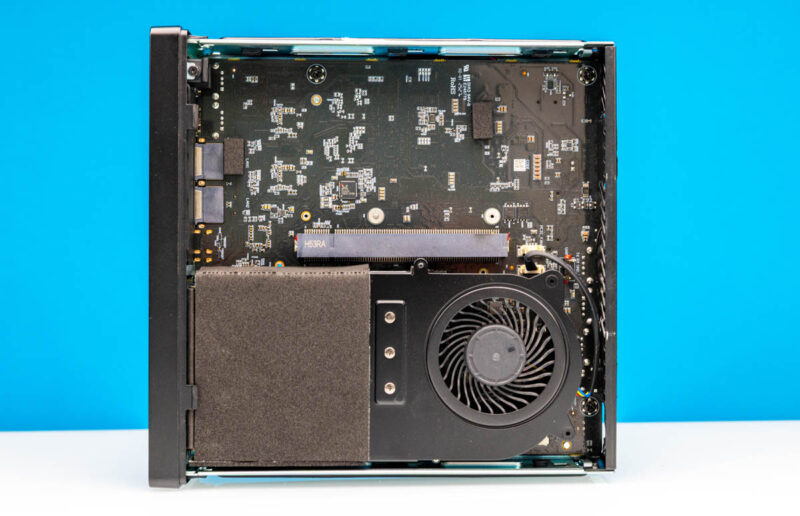

Inside, we have the familiar low-profile PCIe card slot, and then the CPU and memory below.

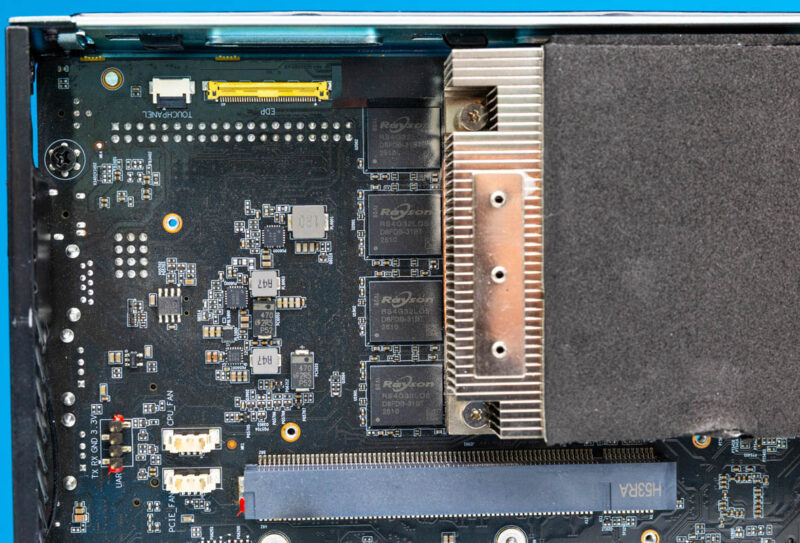

Under the fan, we usually find SODIMM slots, but here we found a touchpanel and EDP connector, along with the memory. The LPDDR5 5500 memory is Rayson-branded. It is also soldered so you cannot add more memory (easily) later.

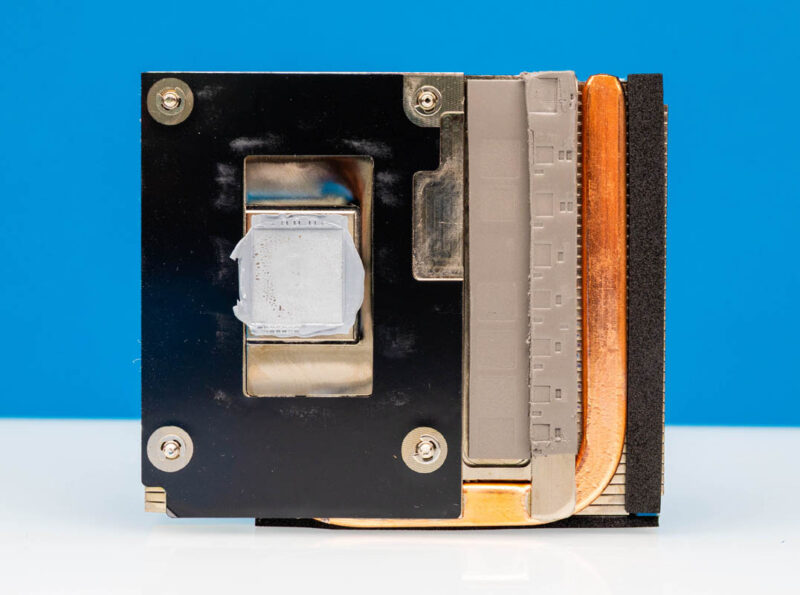

Here is the heatsink bottom. We lost some of the foam on the PCIe side getting this out.

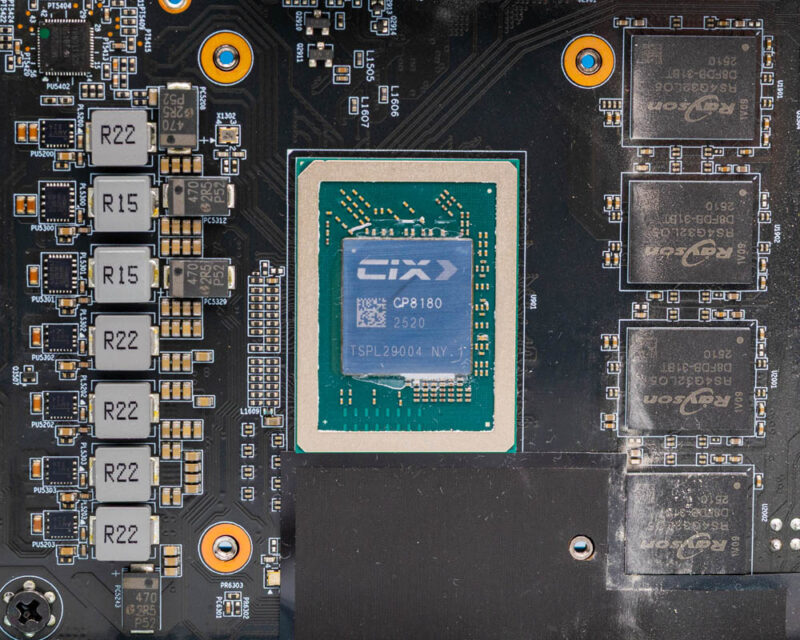

Underneath there, we have the CIX P1 or CP8180 processor. This has big, medium, and small core complexes, with the first two being Arm Cortex A720 and the latter being Arm Cortex A520. The onboard GPU is the Arm Immortalis-G720 MC10.
Here is that side with the CPU heatsink and fan off.

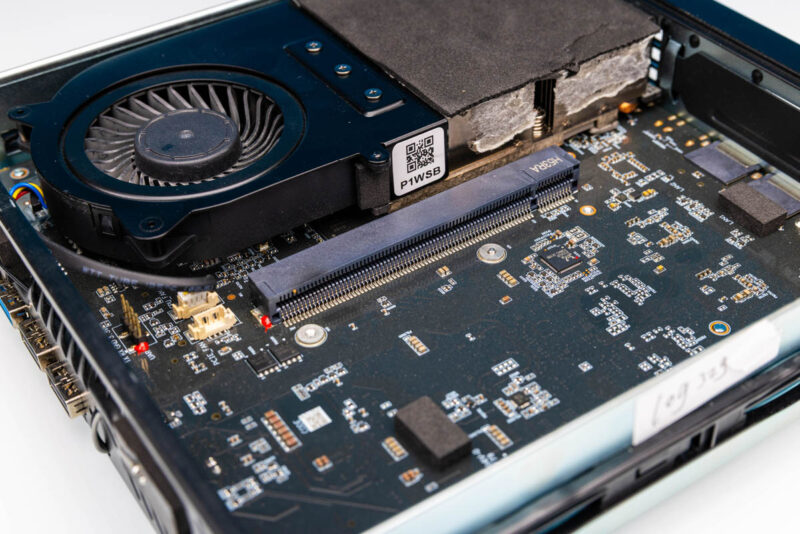

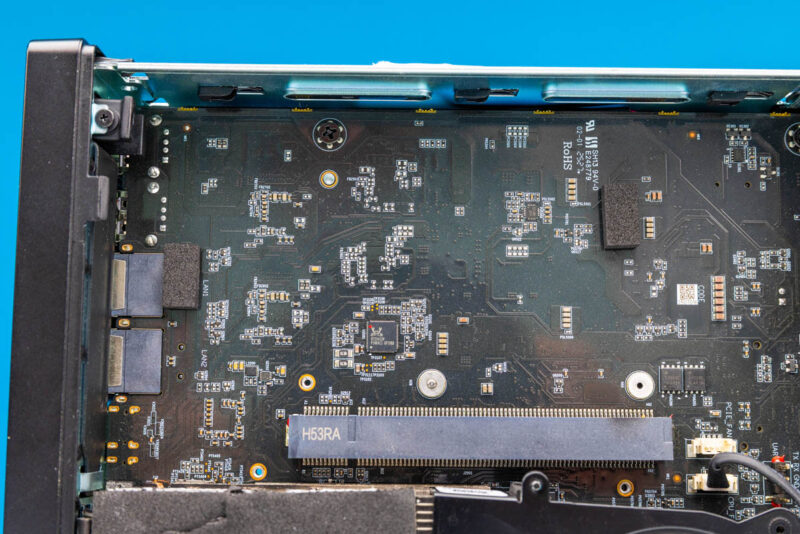

On top, we get a PCIe Gen4 x16 low-profile slot that is x8 physical. A quick word here is that there is no cooling on this top side, so you will want either a very low power card or one that has its own active cooling here.
Here is another look with some of the foam we lost getting you the SoC picture.
Next, let us get to the back side, where the storage and networking are.
Minisforum MS-R1 Internal Hardware Overview Continued

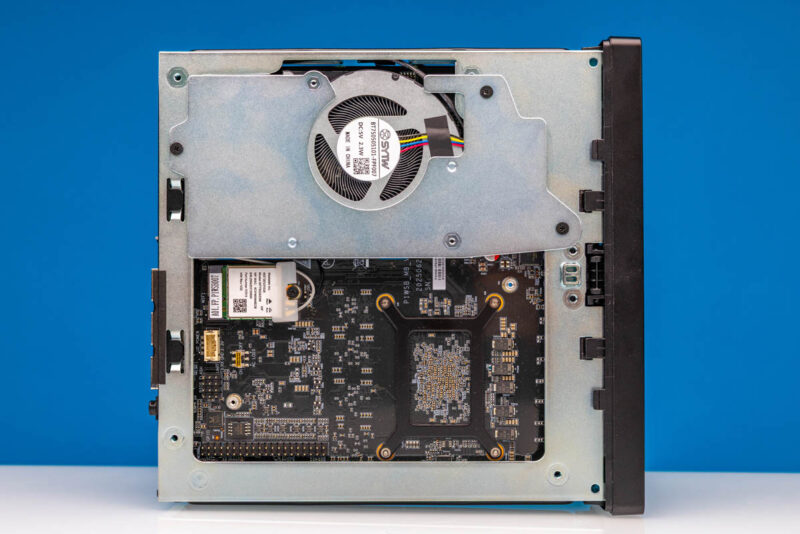

Here is the bottom or back side of the internal tray.

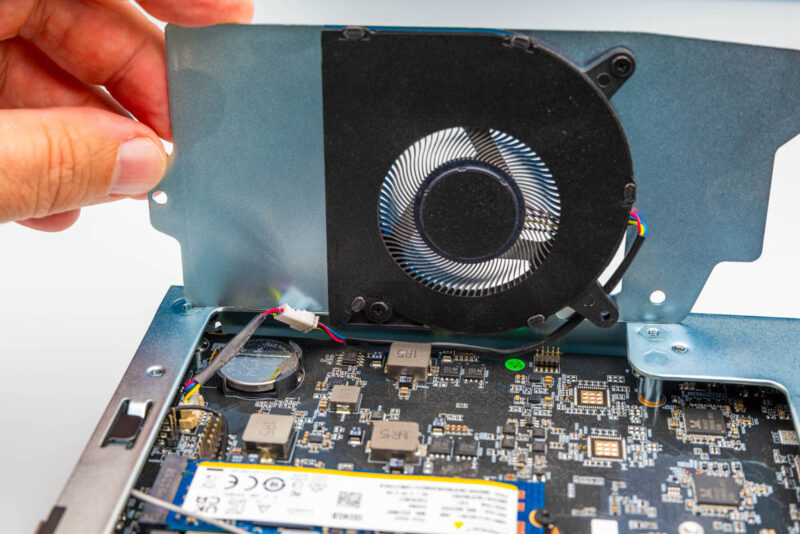

The fan is interesting since there is a little fan extension cable. This is a small batch prototype unit, so it may not make it to retail, but we thought it was something we do not commonly see.

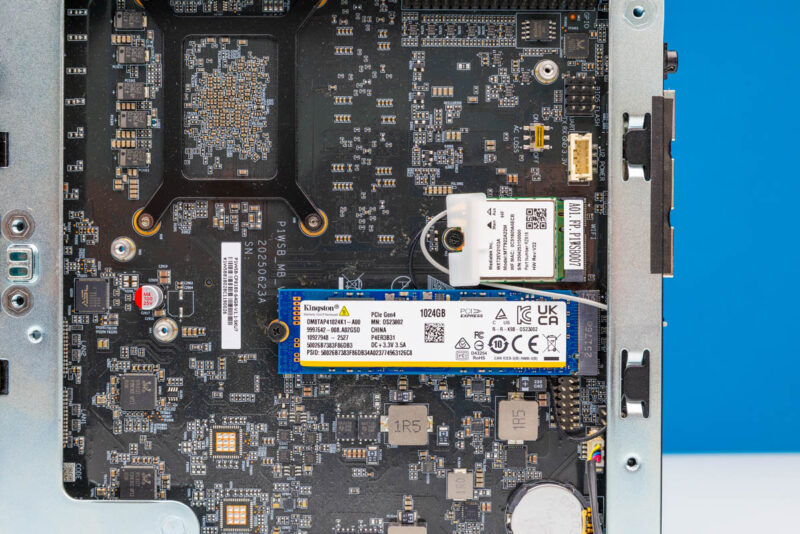

Then we get two M.2 slots, a Kingston PCIe Gen4 1TB drive and a WiFi slot with a MediaTek WiFi 6E solution.

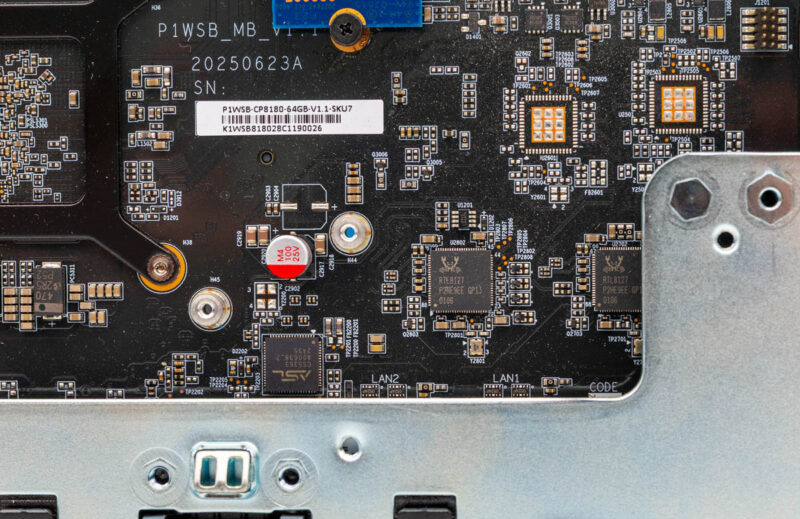

Here are the RTL8127 10GbE NICs, and what look like pads for unpopulated NICs on the PCB.

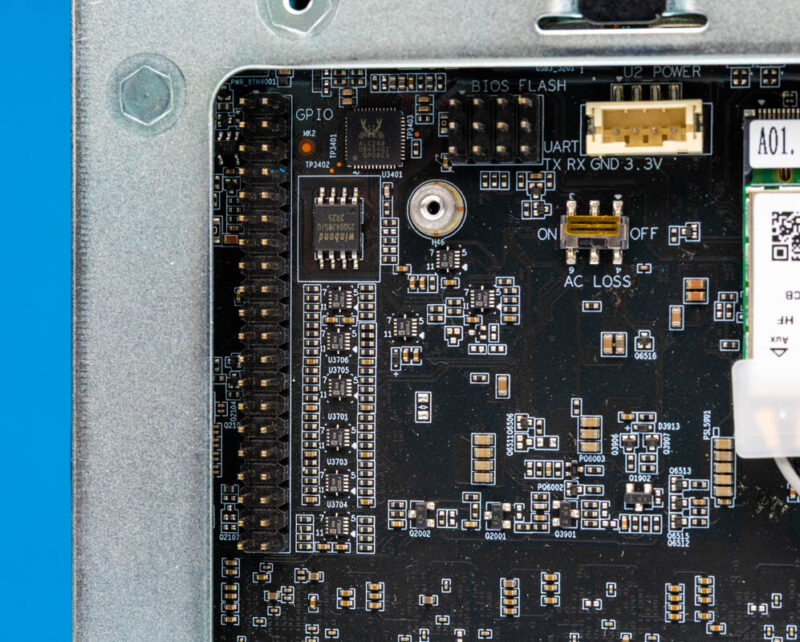

This system also features GPIO pins and a small switch that instructs the system to either power on or remain off after an AC power loss and power restoration.

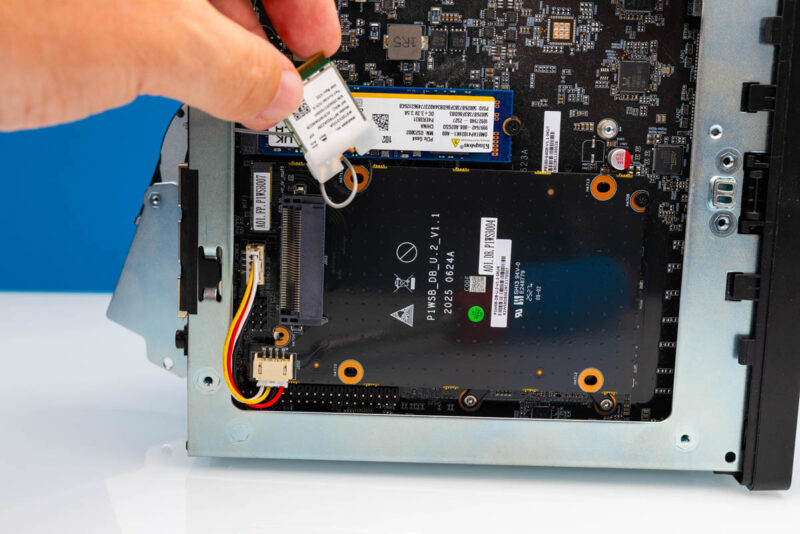

There was a U.2 adapter in the box, but it only works if you take out the WiFi card and also the power cable will likely block some of the GPIO as well as the AC Power On/Off switch. Since the WiFi card slot, as we will see in the block diagram, is only a x2, you would be going through this to add a U.2 drive linked only at PCIe Gen4 x2 speeds.
Next, let us get to the block diagram and topology.
