Minisforum MS-A2 Internal Hardware Overview

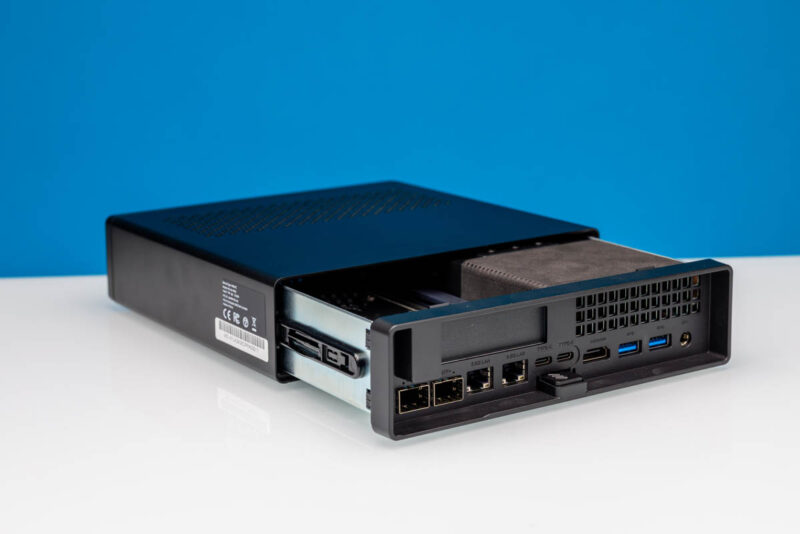

Getting inside the system is easy. You hit a latch and then this just slides out. One area that we did not like about the MS-A1 is that it left this setup out and made service difficult. This MS-A2 is like the MS-01 in being easy to get to components.
Here is the CPU, memory, and PCIe expansion slot side.
Some will say that this is exactly the MS-01 but in AMD. That is not exactly true, and this is a great shot that shows why. You can see that Minisforum removed many of the low-power components from under the PCIe slot in the MS-A2 as well as changing the fan design. Those are two easy ones to spot just from this side-by-side.
The PCIe slot is great, but there is a catch. There is very little airflow on this side of the chassis. If you can use an actively cooled card, then you are likely OK. Otherwise, you are going to want a lower power card.

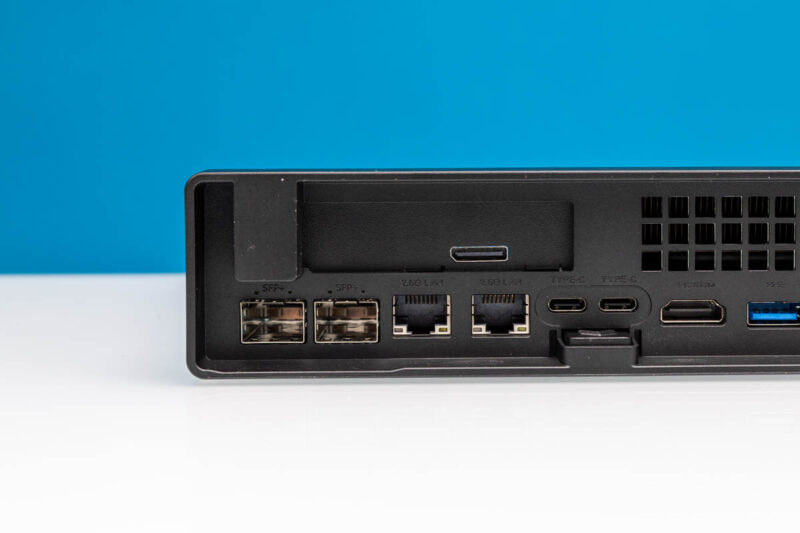

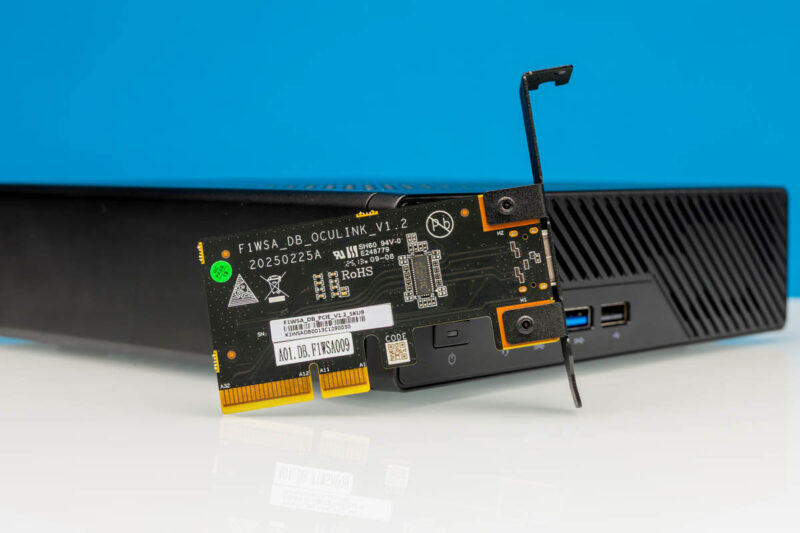

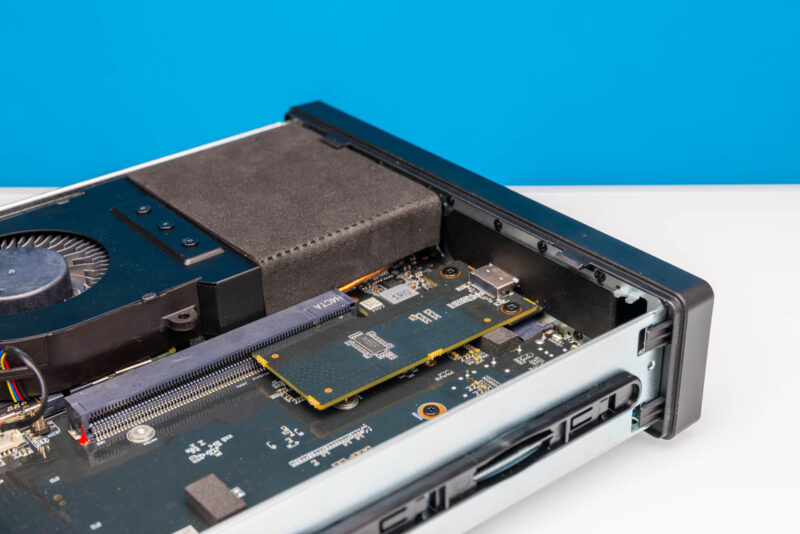

Minisforum sent us an optional OCulink adapter that takes four lanes from the PCIe slot and turns it into a rear connector. This is a good example of a low-power card.
Installation still uses the nub and screw that we were not a fan of in the MS-01, and since you have the same cutout, especially with cards like SFP+ and SFP28 cages protruding, you may have a challenging time installing them in this chassis.
The idea of that optional OCulink card is that you can connect it to something like the Minisforum DEG1 Oculink eGPU Dock and add a higher-end GPU.

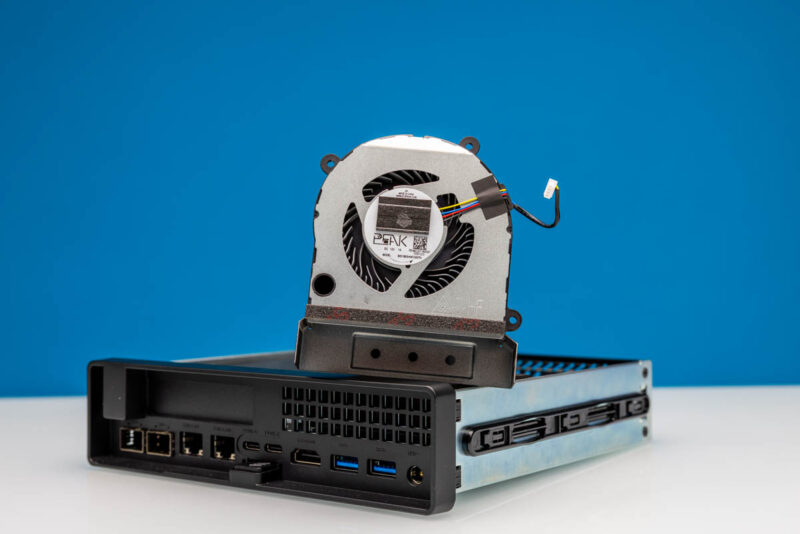

The CPU and memory fan has changed, but it still uses the three screw design. We wish this was a tool-less design like HP, Dell, and Lenovo use in their 1L PCs.

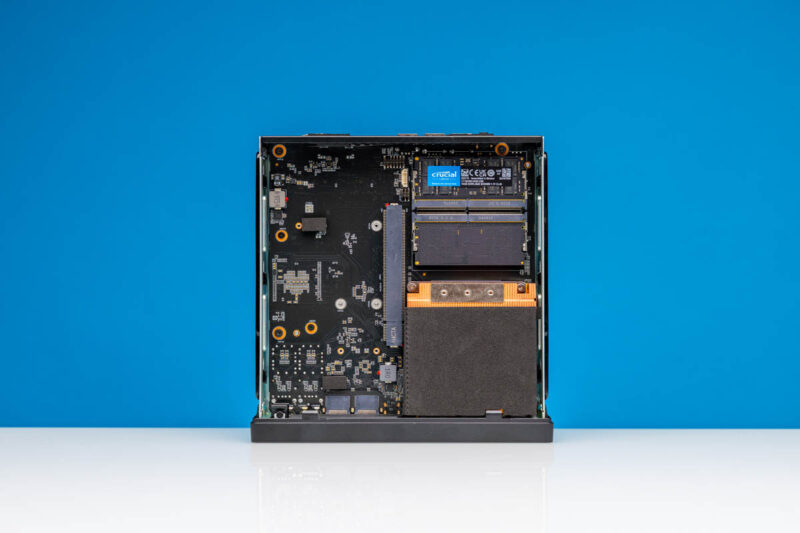

Underneath the fan, we have two DDR5 SODIMM slots as well as the CPU. The CPU in our system is the AMD Ryzen 9 9955HX 16-core/ 32-thread Zen 5 processor, but there is also a Zen 4 16-core/ 32-thread AMD Ryzen 7 7945HX option.

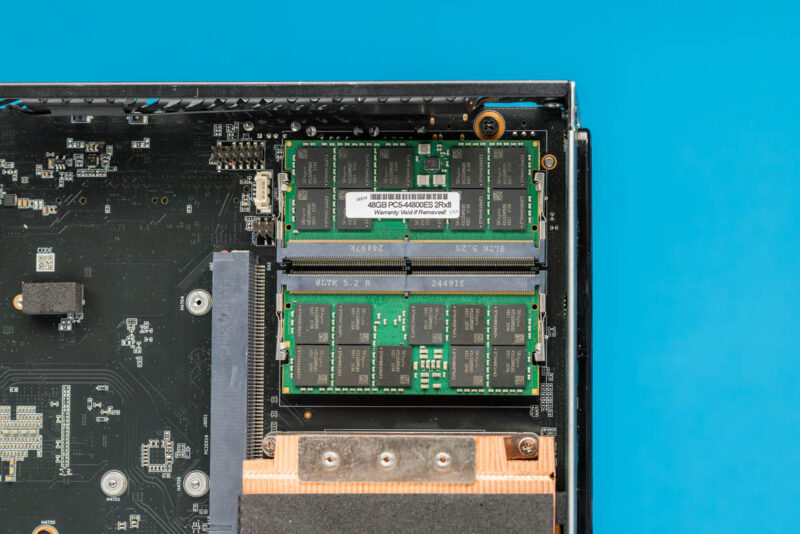

For memory, we tried the default 32GB (2x 16GB) configuration, as well as a 64GB (2x 32GB) and those worked perfectly. We also upped the ante and tried a 2x 48GB ECC SODIMM configuration. If you saw our How to See if ECC is Working in Windows Quickly piece, then you saw screenshots of this setup not supporting the ECC function, although it would boot and show 96GB of memory. We confirmed with the product manager (a big homelab enthusiast) at Computex 2025 that the ECC function should not work on these systems as they would need the Ryzen Pro chips instead.

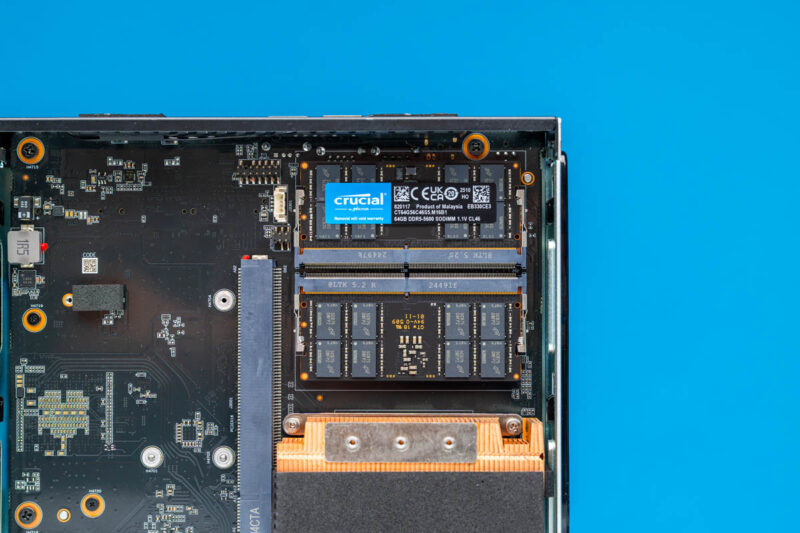

On the plus side, while 96GB is a supported configuration, and we used our Crucial 2x 48GB Kit, we also managed to get our Crucial 128GB DDR5-5600 SODIMM Kit working in this system. Just know that if you install new RAM, training in this system can take a long time. Both with the 96GB configurations and the 128GB configurations we eventually ended up just letting them run while we went to lunch as we realized they were taking a long time. Many users will see these as not working when 2-3 minutes go by and the screen is still off and fans are running. Our advice is to just wait for the memory training to complete.

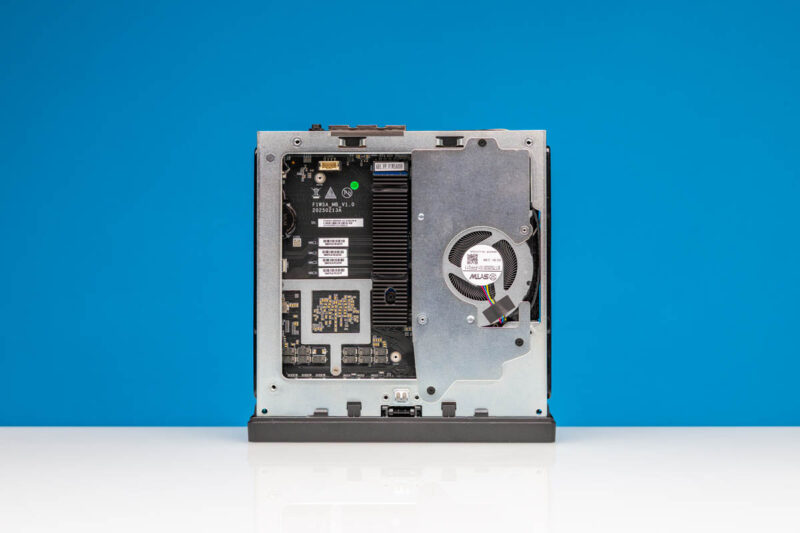

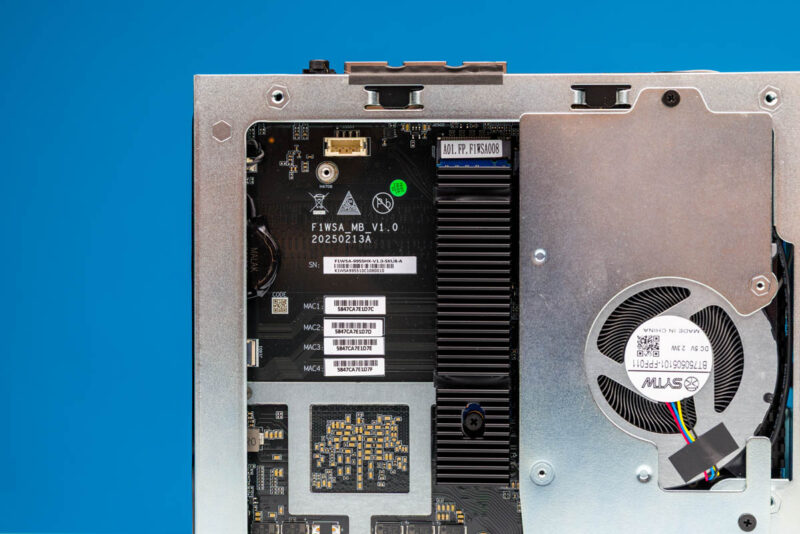

The other side has our networking and NVMe with another fan to help with airflow.

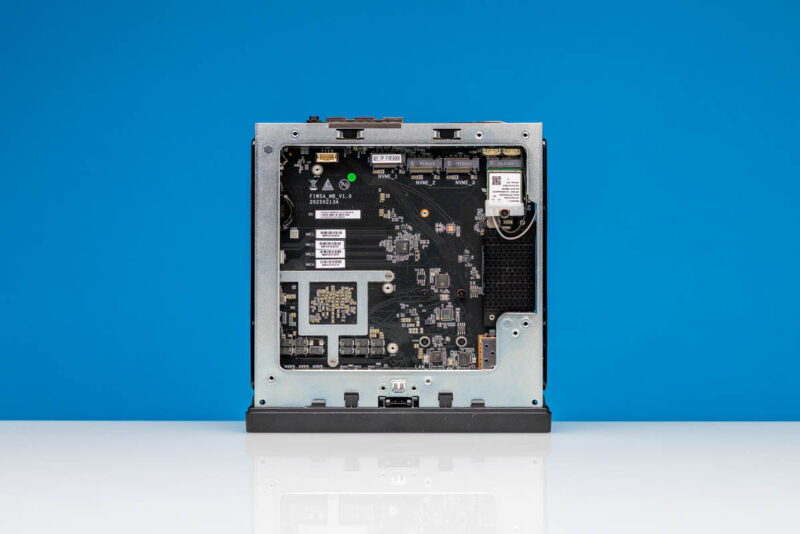

Pulling out the fan and the NVMe, we can see more of this side of the system.
For wireless networking, we have the Mediatek RZ616 WiFi 6E and Bluetooth solution which is common on AMD systems. Next to that is a heatsink that helps keep the Intel X710 dual SFP+ NIC cool. That is the reason we have a fan on this side of the system, but it benefits the storage as well.

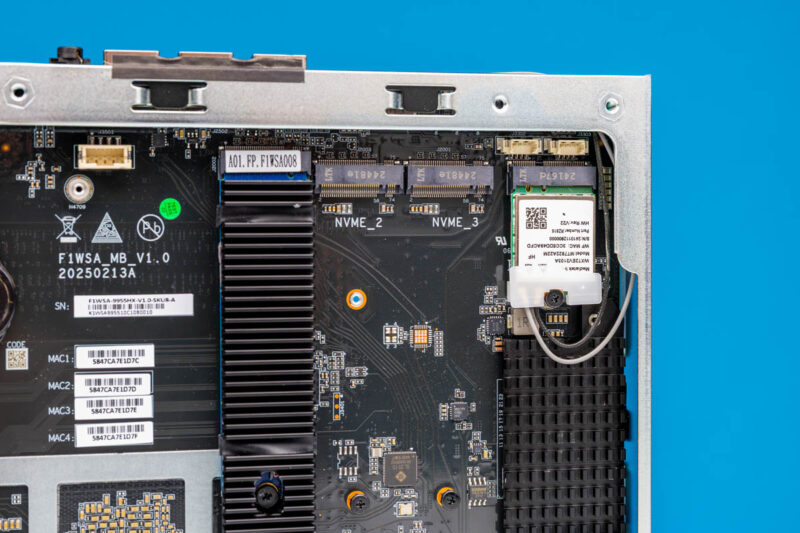

Here we can see the other big feature, three M.2 slots that can fit either M.2 2280 (80mm) or M.2 22110 (110mm) NVMe SSDs.

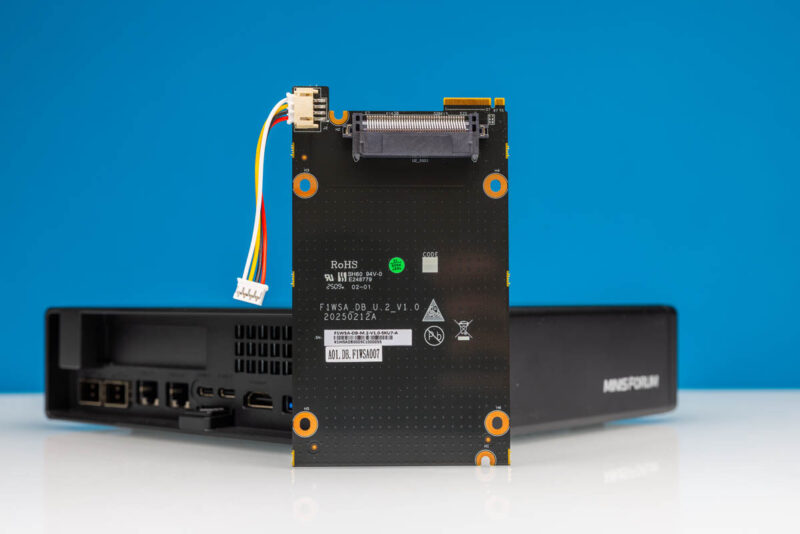

A major change in this version is how U.2 SSDs can be added. The adapter board is new and has a little power cable.

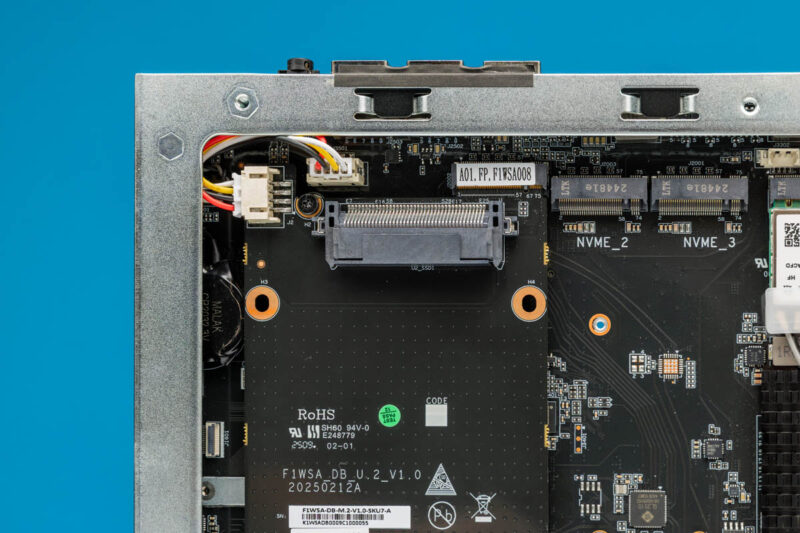

When installed, this power cable connects to the motherboard and provides power.
For some reference, here is the MS-01 which had a U.2 / M.2 switch. If that switch was set improperly in the MS-01, the wrong voltage would be supplied to the SSD, possibly damaging the drive. The MS-A2’s cabled version is a vast improvement.
By default, you get a 1TB NVMe SSD in the pre-configured systems that has a heatsink installed.
Next, let us get to the performance.
