GMKtec EVO-X2 Internal Hardware Overview
Getting inside the system was not obvious from looking at it. Sam had to come over and ask me how to get in.

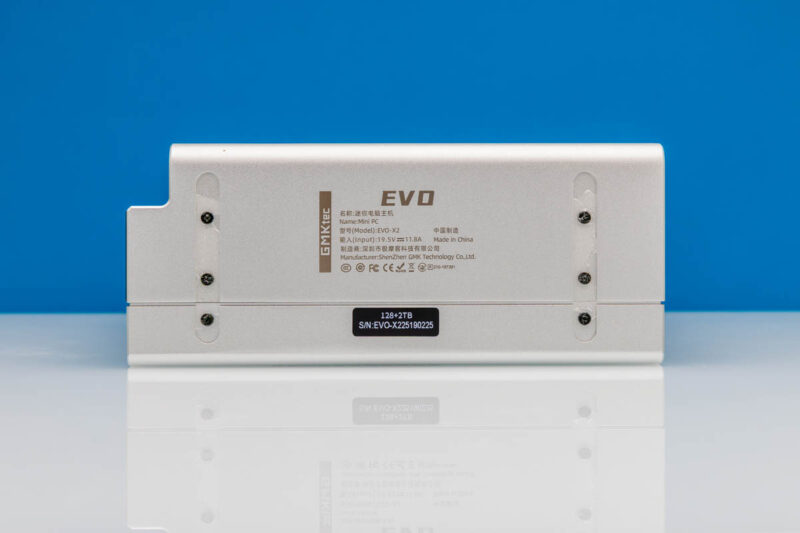

My response was that I bet that there were screws under the rubber feet, and there were. Generally, I dislike this arrangement we have seen on other mini PCs because the rubber feet often do not sit flat after re-assembly.

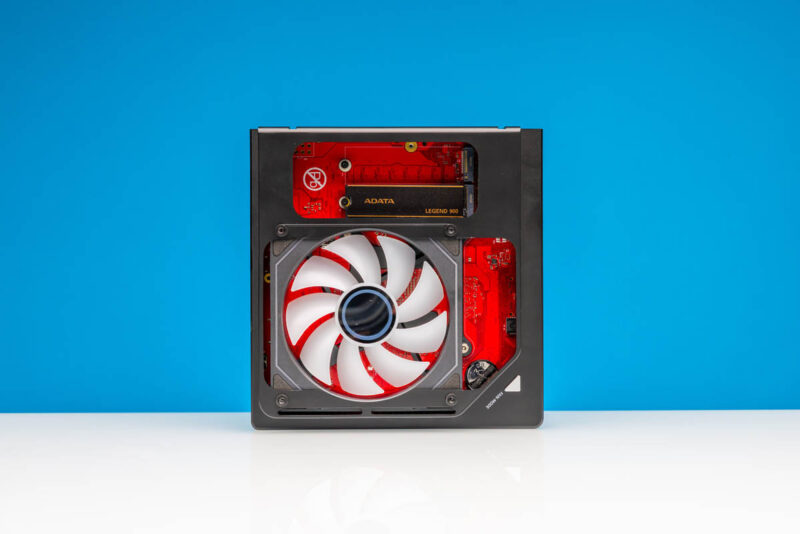

Once the first four screws are off, we can take off the top part of the chassis that has the user serviceable items.

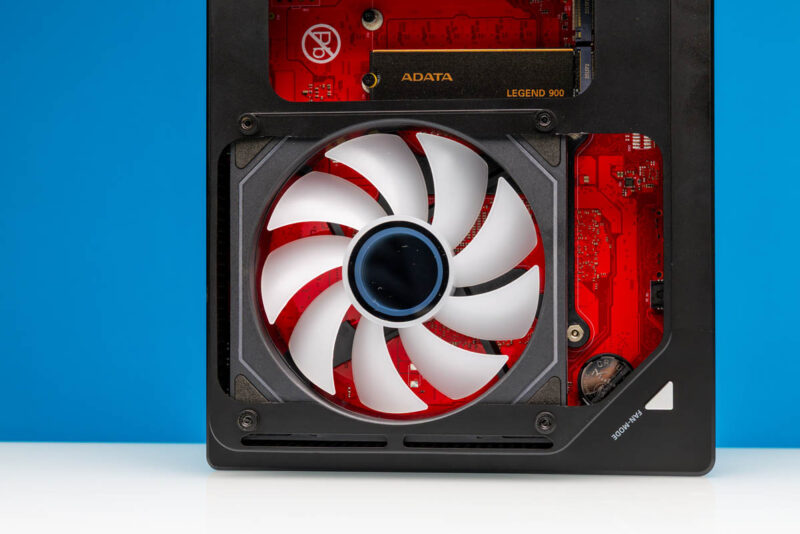

The first one is a fan. Make that an RGB fan. It would be easy to forget this is an RGB fan since it lights up inside the chassis so if the room is well-lit, then the RGB effect is hard to see from the outside. Also, our best guess is that this fan was installed to cool the storage, WiFi NIC, and perhaps the back of the PCB, but it just feels like this is a suboptimal airflow design.
Just to give you some sense, here is the fan lighting up the system on set #2.

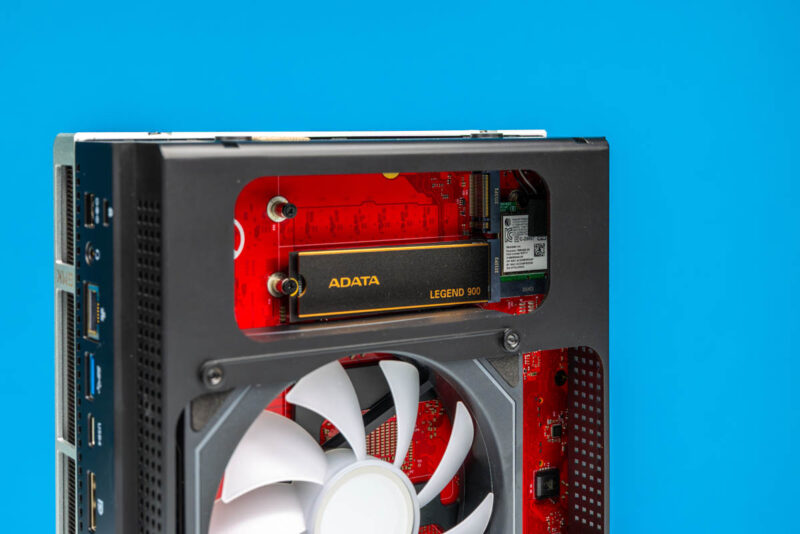

There is a cutout in the metal chassis to allow you to service the two M.2 drives. Our 128GB LPDDR5X system came with a 2TB ADATA Legend 900 SSD. We really like the move to a 2TB SSD, especially in a $2000 system. It is pretty trivial to download 1TB of AI models so storage is something that should not be taken lightly in a system like this. There is also a second M.2 slot here.
Hiding beneath the metal bit is the RZ717 WiFi 7 card. That would be nothing short of a pain to service as it requires even more system disassembly. To be frank, the recessed M.2 drives were also on the harder side to access from a mini PC service perspective. If we were to re-design the system, this whole top section would get some work done.
On the other side, we get two blower-style fans and the heatsink.

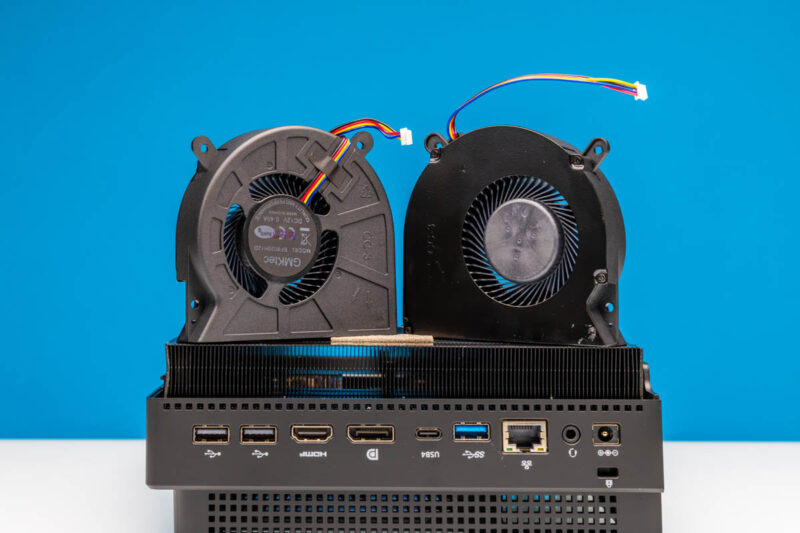

Here is a look at the fans.

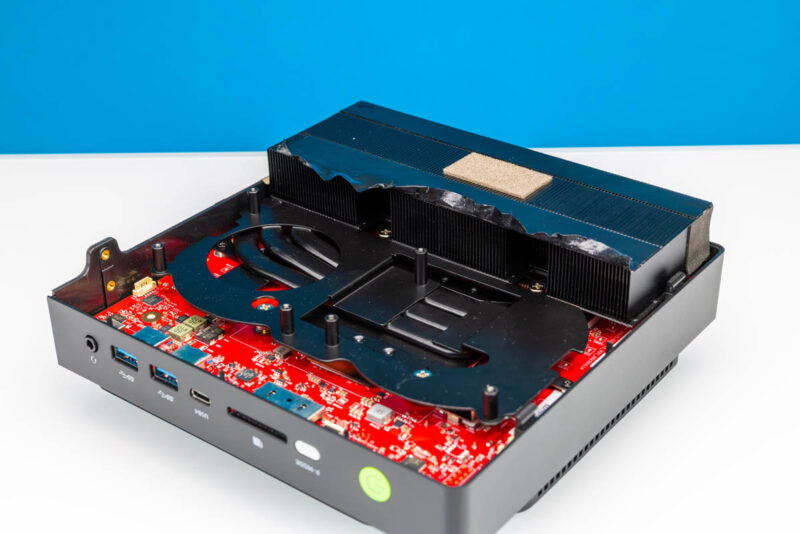

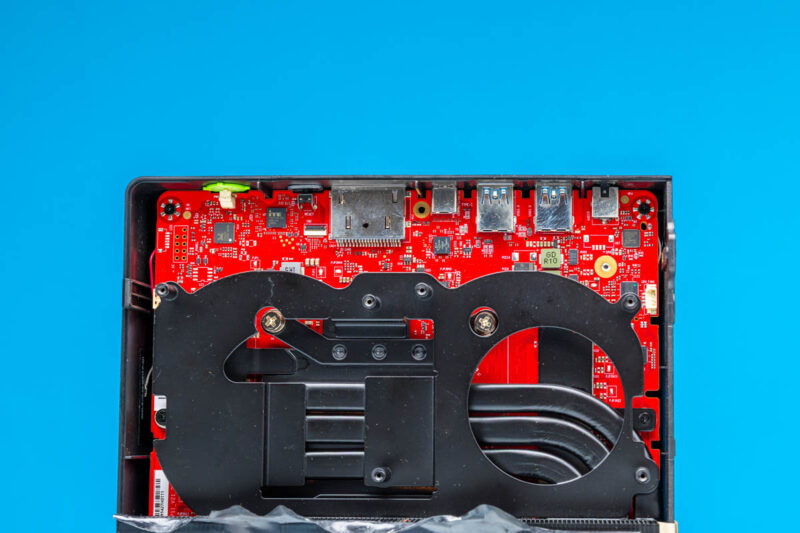

Underneath these we get the heatsink and heatpipe assembly.
This whole setup is rather intense, but this is a higher-power SoC.
Built into the motherboard we have the AMD Ryzen AI Max+ 395 which is the current king of consumer APUs. We also get 128GB of LPDDR5X memory. As such, really what we wanted to see was the performance. Let us get to that next.
