Power Consumption and Noise
At idle, we saw 10-20W at the Windows 11 Pro desktop. Under load, we could get 140-170W or so, but our system often liked to sit at 140W. We ran it for a day and a half at 140W without issue.
As for noise, we were at 36-37dba in our noise floor studio using the Noctua fan option at idle and 39-41dba under load. This is certainly one of the quieter systems, and quieter than the Minisform S1-Max.
Since we had tried the Noctua fan both ways, it actually could cool the system under light load with the fan pulling air through the heatsink to the fan. The problems arose under sustained loads, and the noise went up. Again, that may seem trivial if you have put together a PC, but it is a risk with offering a system with a fan to be installed by a user instead of at the factory.
Key Lessons Learned
In the video, we went into a lot of the pricing and competitive side. As configured with all of the tiles, translucent side panel, expansion ports, 2TB SSD, Windows 11 Pro, and so forth, we had it in the $2500-2600 range for this system. We were nowhere near even the top of the configuration.

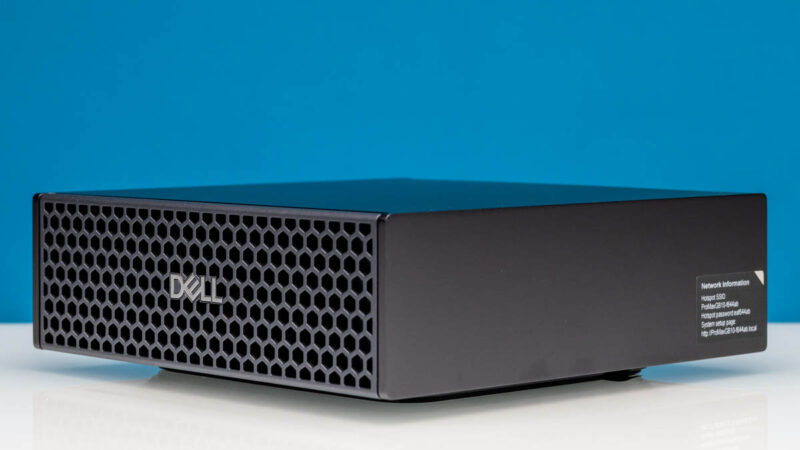

The GB10-based systems with 4TB are selling for $3999, but the 1TB systems are supposed to sell for $2999 or so, and the 2TB systems are supposed to settle into the $3499-3599 range. To us, the NVIDIA GB10 solutions, like the DGX Spark, and Dell Pro Max with GB10, make sense if your goals are to:
- Only do AI stuff
- Use the NVIDIA Development Stack
- Use NVIDIA DGX OS
- Have NVIDIA’s low-cost Arm CPU, NVIDIA GPU, and NVIDIA ConnectX RDMA networking
Still, that is a decent amount that you are paying for an NVIDIA solution over this AMD solution.
You go with AMD Strix Halo if you want to:
- Do AI + Gaming (Gaming being secondary)
- Use the AMD Development Stack
- Windows Support (or other OSes)
- Lower costs
If you are playing games, often features like anti-cheat software compatibility prefer x86 and Windows over Arm and Linux. The NVIDIA GB10 is a consumer part, so gaming might change eventually, but it is what we have today.
On the Strix Halo side, our system ranking right now is:
- Minisforum S1-Max (full review coming soon)
- Beelink GTR9 Pro
- Framework Desktop
- GMKtec Evo-X2
There are many caveats, but here is the summary:
- The S1-Max has more expansion and better networking for a similar price, while it also seems to perform better. It is, however, louder than the Framework Desktop.
- The Beelink GTR9 Pro‘s Intel E610 stability issue is rumored to be fixed in December 2025. If it is, then Beelink’s design, port features, factory assembly, and networking will make it a strong competitor to the S1-Max and put it far ahead of the Framework Desktop. If that is not fixed, then the Framework Desktop will pull ahead for some. At some point, even if it is not fixed, if we are talking Realtek adapters, putting a 5Gbps USB adapter on the Beelink closes that gap quite a bit.
- The GMKtec Evo-X2 is interesting because it is usually the lowest cost. If you do not care about networking and other features, then the GMKtec is likely the best price/ performance.

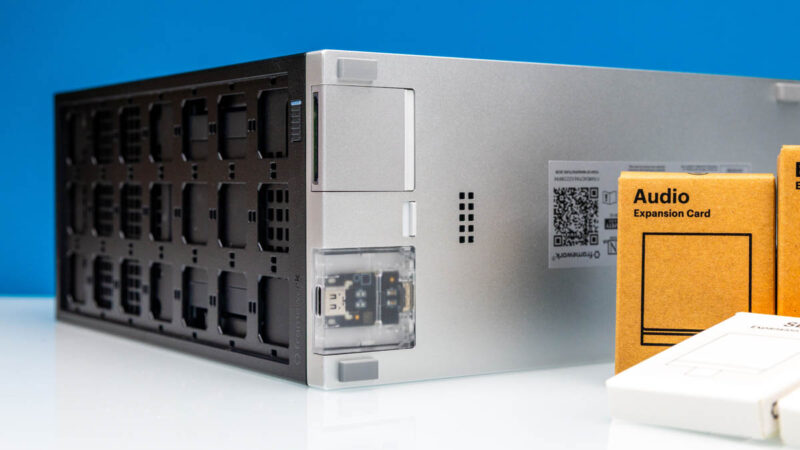

One item that really stood out was the lack of a low-profile expansion slot. It is mind-boggling that that was missed in a system designed for the DIY-focused Framework.
Final Words
I feel pretty confident in the notion that the Framework Desktop is my third-favorite AMD Strix Halo machine that we have tested. That is hard to say, given that I really enjoy Framework products. On the other hand, we have 10x 128GB mini PCs that are focused on AI sitting next to one another, so it becomes very clear which ones you prefer just based on which you reach for. The impact of having only lower-speed 5GbE networking meant that loading models from our network storage took slightly longer. That small change meant we were more likely to use one of the other machines for tasks that were time-bound. Then there was relatively limited expandability in the Framework Desktop chassis to change that perspective. One could rightly point out that an alternative might be to use a different chassis or to add a Thunderbolt networking adapter to the USB4 ports, but it should not have to be. 5GbE should not be the out-of-the-box networking on a system that will cost many $2300-2600 with a single 2TB SSD.

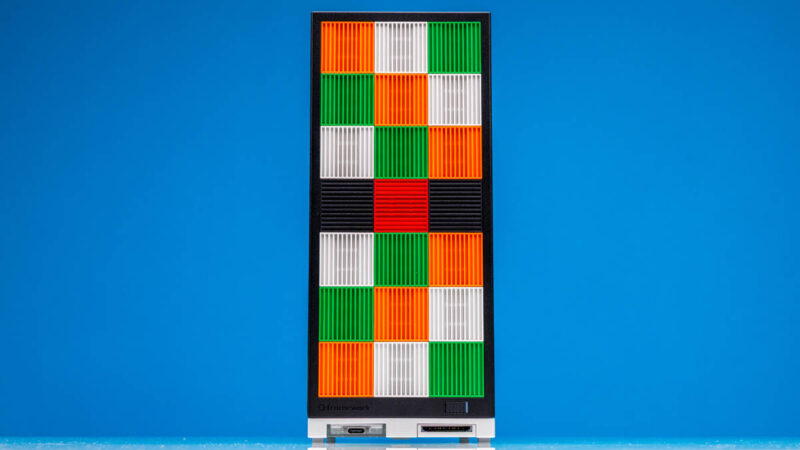

With all of that said, there is a lot to like on the Framework Desktop. The system performed well, both when we tried the Noctua fan in the optimal configuration, and it even worked when it was installed suboptimally. We probably trust Framework to deliver better support over time than Beelink or Minisforum at this point, but that is always something that remains to be seen after the review is published. There is the fact that it just worked, looked good, and had a customizable front panel that folks will gravitate to because they can personalize it.
