Framework Desktop Internal Hardware Overview

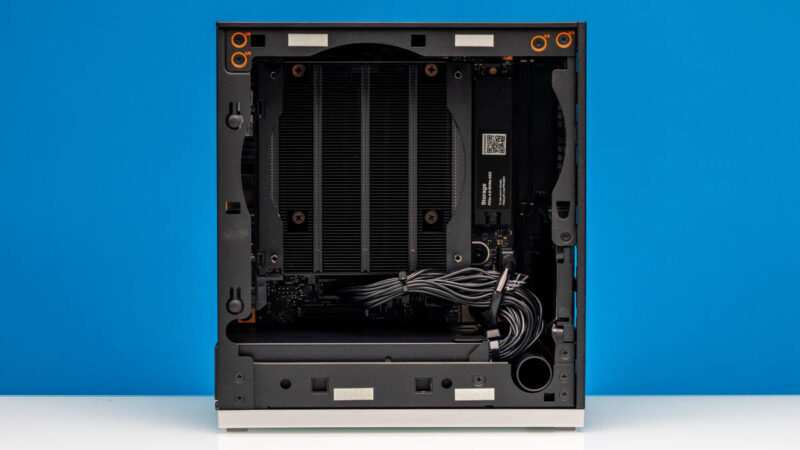

The layout of the Framework Desktop is simple. There is a mITX motherboard on top, and then a FlexATX PSU on the bottom.

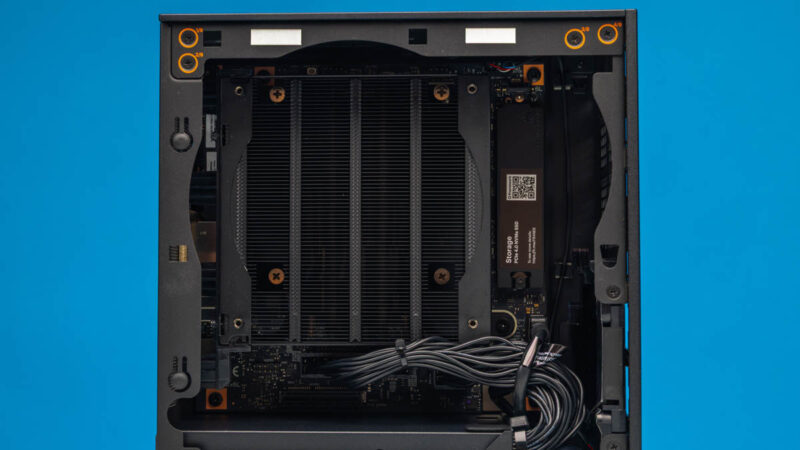

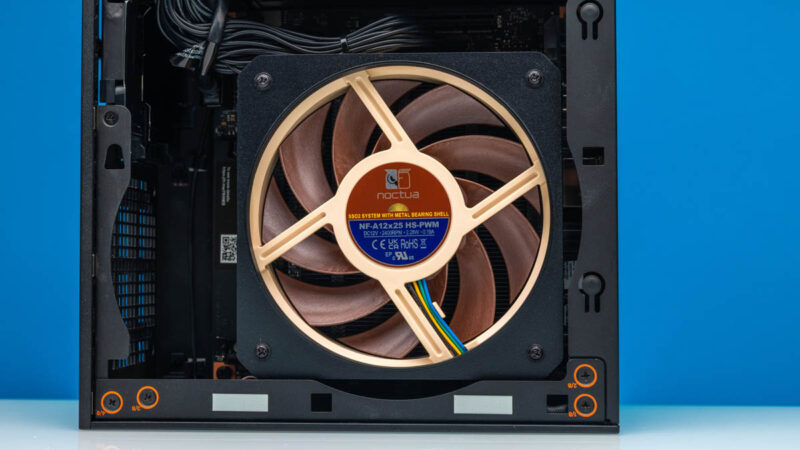

While the heatsink covers the AMD Ryzen AI Max+ 395 and 128GB of LPDDR5X memory, you have to install the fan. We picked the mid-priced Noctua option. It has been great for us. Just install it the proper way.
That heatsink is probably the #1 item that Framework got right in this system. A larger 4.5L chassis, but with a solid-sized heatsink and a 120mm fan, is what we wish more mini PCs would adopt. This really made the Framework Desktop quiet in operation which was awesome.
You can also sneak another fan into the chassis if you want.

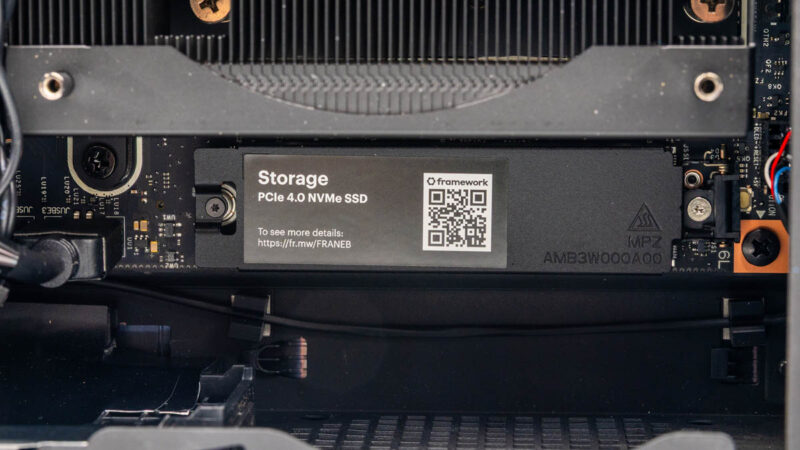

On the front side, we get a heatspreader and a M.2 SSD.

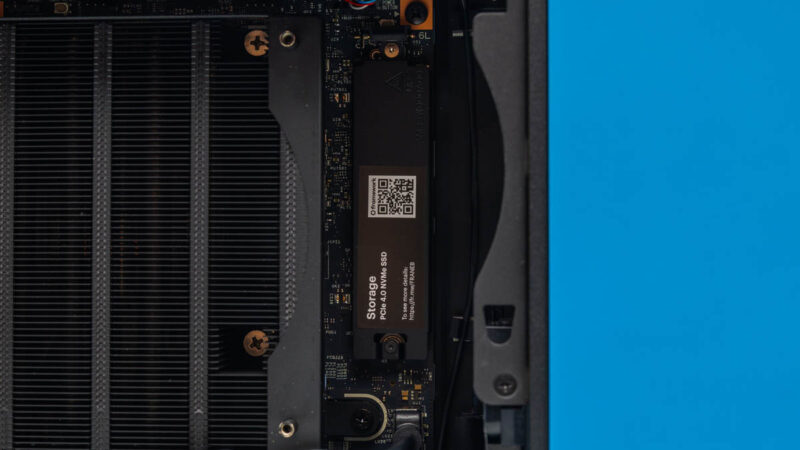

Here is a closer look at that.

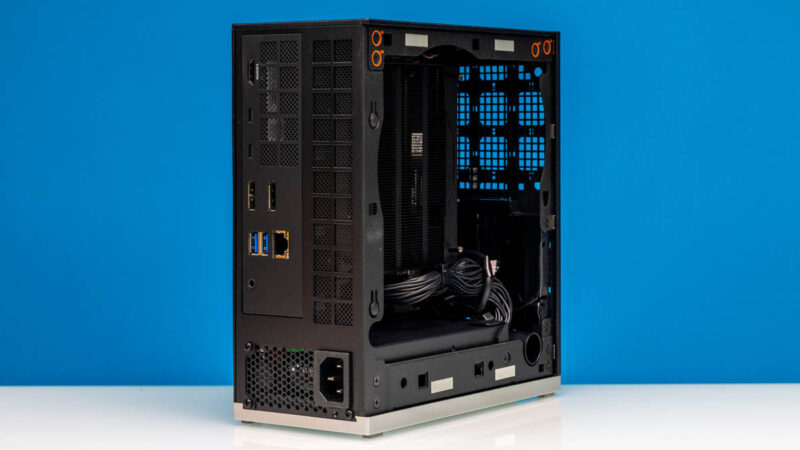

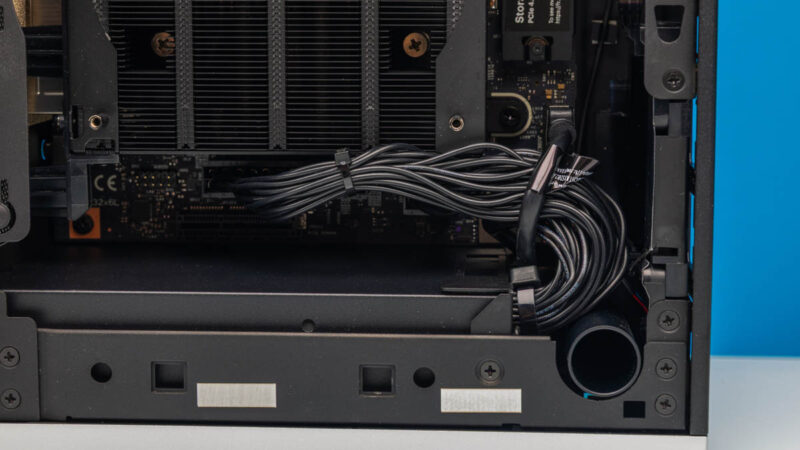

Having the semi-pre-built system means that while we do not get a fan, front ports, side panel, or front tiles installed, we do get some cable management for the power supply done for us.

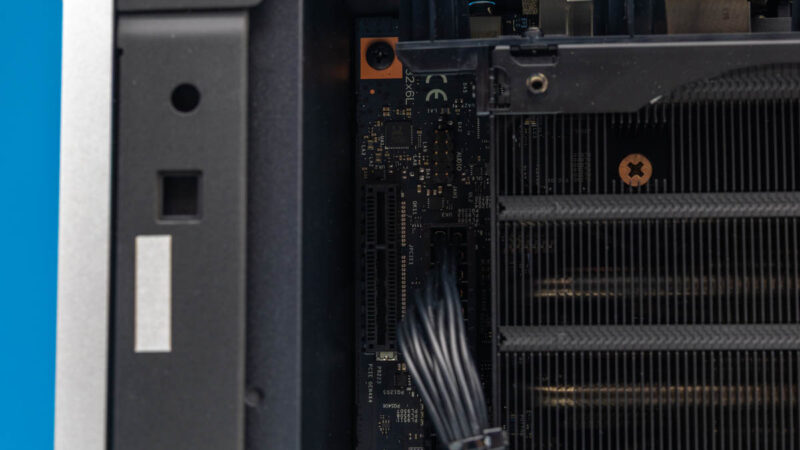

That brings us to the most bizarre feature. There is a PCIe Gen4 x4 slot on the motherboard.

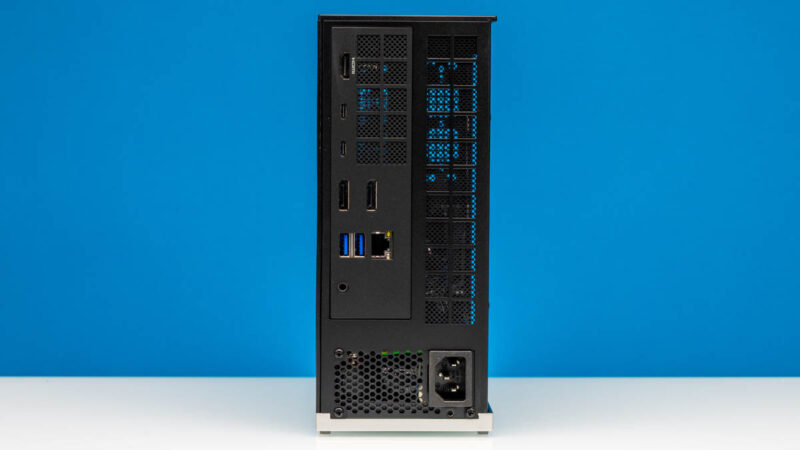

While that is exciting, someone forgot to put a low-profile card I/O slot between the PSU and the motherboard on the rear of the system. This is a huge miss, and one that even, having used the system for more than a month, I cannot get over. Perhaps you can stick an M.2 card in there, but it would have opened up the possibilities of this system so much to just have a low-profile card slot here (and an open-ended PCIe slot.) You end up with a PCIe Gen4 x4 slot that is not very useful because of the chassis design. I cannot fathom how or why one would do this. Doubly so since Framework is known for the ability to swap and upgrade components in systems. Since the motherboard, RAM, and CPU are all soldered, that means if Framework sells a new mITX motherboard in the future with a PCIe slot, you would lose the ability to use that slot in the future as well.

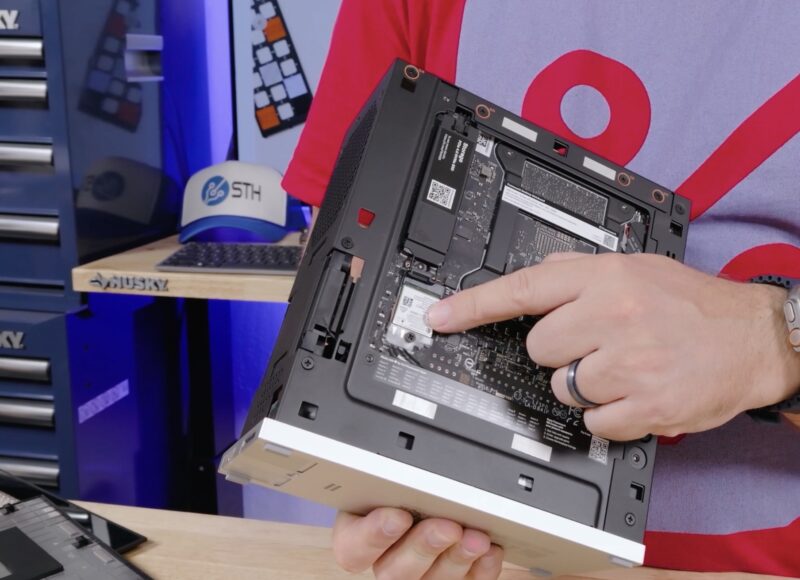

On the back, we get both a second M.2 slot as well as the RZ717 WiFi 7 solution.
Next, let us get to the performance.
