Dell OptiPlex 7090 Micro Review Slightly Updated Iteration


Key Specs

Since many of our users are going to want to run different OSes on this, we wanted to give some of the key hardware specs. There is a lot on these machines that are customizable, but this at least gives you some sense of what hardware is available. If you want to know if your hardware is compatible with your OS, this list should help do that tie-out.

CPU Support

We did not have the 11th Gen processors, so here are the officially supported 10th gen CPUs for the unit:

Intel Core i3-10100T 35 W 4 8 3.0 GHz to 3.8 GHz 6 MB Intel UHD Graphics 630
Intel Core i3-10300T 35 W 4 8 3.0 GHz to 3.9 GHz 8 MB Intel UHD Graphics 630
Intel Core i5-10400T 35 W 6 12 2.0 GHz to 3.6 GHz 12 MB Intel UHD Graphics 630
Intel Core i5-10500T 35 W 6 12 2.3 GHz to 3.8 GHz 12 MB Intel UHD Graphics 630
Intel Core i5-10600T 35 W 6 12 2.4 GHz to 4.0 GHz 12 MB Intel UHD Graphics 630
Intel Core i7-10700T 35 W 8 16 2.0 GHz to 4.5 GHz 16 MB Intel UHD Graphics 630
Intel Core i9-10900T 35 W 10 20 1.9 GHz to 4.6 GHz 20 MB Intel UHD Graphics 630
Intel Core i3-10100 65 W 4 8 3.6 GHz to 4.3 GHz 6 MB Intel UHD Graphics 630
Intel Core i3-10300 65 W 4 8 3.7 GHz to 4.4 GHz 8 MB Intel UHD Graphics 630
Intel Core i5-10400 65 W 6 12 2.9 GHz to 4.3 GHz 12 MB Intel UHD Graphics 630
Intel Core i5-10500 65 W 6 12 3.1 GHz to 4.5 GHz 12 MB Intel UHD Graphics 630
Intel Core i5-10600 65 W 6 12 3.3 GHz to 4.8 GHz 12 MB Intel UHD Graphics 630
Intel Core i7-10700 65 W 8 16 2.9 GHz to 4.8 GHz 16 MB Intel UHD Graphics 630
Intel Core i9-10900 65 W 10 20 2.8 GHz to 5.2 GHz 20 MB Intel UHD Graphics 630

RAM Support

  • Up to 2x 32GB DDR4 SODIMMs (64GB total) DDR4-3200, or lower, depending on the CPU used

Storage Support

  • 2x M.2 PCIe Gen3 for NVMe SSD slots, one can be Gen4 with an 11th Gen Core CPU.
  • 1x 2.5″ SATA

Networking (Wired)

  • Intel i219-LM (Required for vPro)

WiFi Support (Optional)

  • Intel Wi-Fi 6 AX201, 11ax 2×2 Wi-Fi + Bluetooth 5.1, Intel vPro technology support, M.2 Card

USB Ports

  • 2x USB 3.2 Gen2 Front (Type-A)
  • 1x USB 3.2 Gen2 2×2 Front (Type-C)
  • 2x USB 3.2 Gen2 Rear (Type-A)
  • 2x USB 3.2 Gen1 Rear (Type-A)
  • Options for additional ports, as configured with a USB 3.2 Gen1 Type-C with DisplayPort

OSes From Factory

  • Windows 10 Home (64-bit)
  • Windows 10 Professional (64-bit)
  • Windows 10 Pro Education (64-bit)
  • Windows 10 IoT Enterprise 2019 LTSC (OEM only)
  • NeoKylin 7.0 (China only)
  • Ubuntu 18.04 (64-bit)
  • Windows 11 Pro was a free upgrade on ours.

The OS section can be a big deal. Sometimes the units are advertised as supporting Windows 10 or Windows 11, but one gets a Windows 10/11 Home license. If you want to, or may want to, run Windows 10 Pro or Windows 11 Pro, knowing exactly which OS is on the device is ultra important. Having Ubuntu Linux installed from the factory is nice since we know many of our readers will use these with Linux. We also had our system running Proxmox VE as a Linux virtualization node but that is not an officially supported OS. Ubuntu installed without issue. One also usually needs to make BIOS tweaks in order to run Linux on Lenovo machines since they are optimized for Windows but we did not with our test unit.

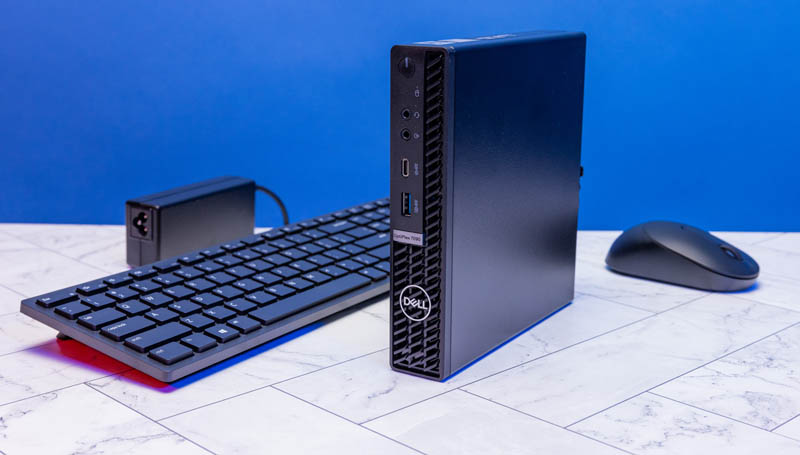

Dell OptiPlex 7090 Micro With Accessories 1
Dell OptiPlex 7090 Micro With Accessories 1

Note: These systems sometimes change specs mid-generation. If you find another spec sheet with items you think we should add, please let us know in the comments.

Next, we are going to look at the performance and power consumption before getting to our final words.
