Managing Xen Cloud Platform (XCP) with Citrix XenCenter Part 1

3
Posted March 25, 2013 by Stephen Davis in Software
XenCenter Console

This is the third in a series of articles of how to use the Xen Cloud Platform (XCP). For those of you following along you probably have your XCP host up and running and today we are going to show you how to manage it from a central console using Citrix XenCenter. For those of you that are new to this series I encourage to go back and review where we have been.

  1. Getting Started with Xen Cloud Platform (XCP)
  2. Installing Xen Cloud Platform (XCP) from USB

Today’s article will cover the download & installation of Citrix XenCenter, Adding a Server, Adding an ISO Library and Adding Shared Storage for VMs. Next week, we will follow up with creating your first Virtual Machine, Creating a Pool, and Migrating VMs between XCP hosts.

Download & Installation of XenCenter

To get us started you will need to go to https://www.citrix.com/welcome/create-account.html and create a customer account. Don’t worry it is free. I won’t cover the process of registering but once you are done you should see your “my account” page and it should look something like mine below. ***I will caveat this, by saying that you can download the XenCenter software other ways, but this is right way to do it. Plus you will need a Citrix account later in the series, so you might as well create one and get familiar with the customer portal now. ***

Citrix My Account

Citrix My Account

In the bottom right corner there is a link for Downloads. This will take you to all the software you have access to.

On the left hand side there are drop down menus. In the “Select Product” menu choose XenServer and then click find.

Citrix Downloads Home

Citrix Downloads Home

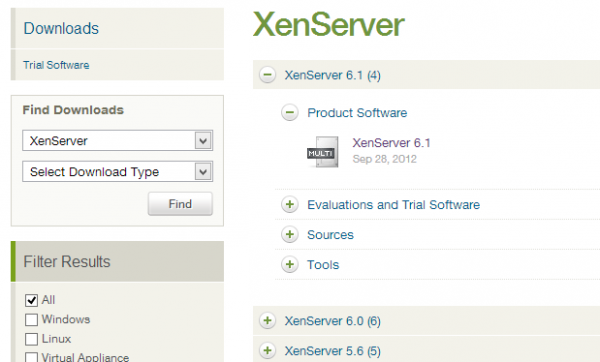

The latest version of the software should be the first on the list. Just expand the Product Software section and choose XenServer 6.1.

Citrix XenServer Downloads

This will bring you to a page with all of the downloads for XenServer 6.1. There are a lot of options, but we are only interested in the XenCenter 6.1 Windows Management Console. Just click on Download and a Java applet will open and allow you to save “XenServer-6.1-XenCenter.msi” to the location of your choosing.

Citrix XenCenter Download

Citrix XenCenter Download

I have chosen to save the download to my desktop. I will not show you how to install the application because there is nothing special to do here other than click next and accept a EULA.

Now that you have it installed, let’s open it! You will greet with an empty console that should look like this.

Citrix XenCenter Console

Adding a Server

Adding a server in XenCenter is actually very straightforward.  Just click on the big icon in the middle of the console, “Add a server”. When you do this a small window will open that will ask you for some information about the server you want to add. You can use a fully qualified domain name or an IP address. I typically set static IPs for my virtualization hosts, so I will just enter an IP. Your password is the one you set when we installed XCP last week.

XenCenter - Add Server

XenCenter – Add Server

After it synchronizes with your XCP host, your XenCenter should look similar to mine below. I told you this would be easy!

XenCenter Console - Added Server

XenCenter Console – Added Server

Adding Shared Storage

The best way to use XCP or any virtualization platform is to use shared storage for VMs as well as shared storage of ISOs/ software. Next, we will show how to create a shared ISO Library as well as a Primary Storage Repository for our VMs.

Adding the ISO Library

First, let’s create our ISO Library. This will be where we store all of our ISOs and software that will be used to create VMs. In the navigation pane on the left, select the host where you want the storage to be created. Then click on the “New Storage” button on the top menu bar.

XenCenter Console - Create SR

XenCenter Console – Create SR

You will be greeted with this screen where you can choose the type of Storage Repository (“SR”) you want. As mentioned before there are two types: Virtual Disk Storage and ISO Library. For my ISO library I will be creating a NFS based SR, but if you are using a windows share you can just choose CIFS.

XenCenter Console - Create ISO Library

XenCenter Console – Create ISO Library

The next screen is the same for both types of SRs. Here you can name your ISO Library whatever you choose. I have left mine as the default “NFS ISO Library”.

XenCenter Console - Name ISO Library

XenCenter Console – Name ISO Library

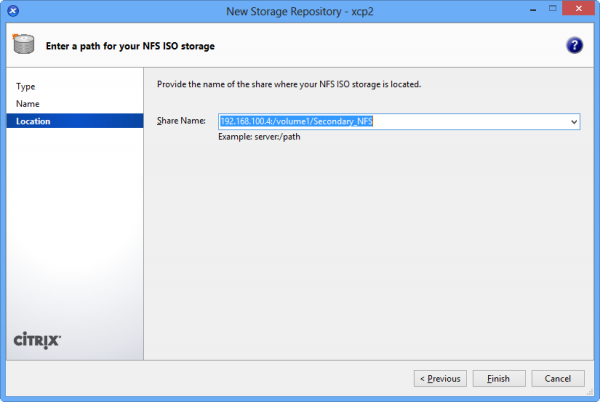

This next and final screen is where we tell XenCenter how to connect to our storage. Below I have shown both NFS and CIFS (for those using Windows Shares). Now just click “Finish” and your new ISO Library will be created and added to your XCP Host.

XenCenter Console - NFS ISO Library
XenCenter Console - CIFS ISO Library

XenCenter Console – CIFS ISO Library

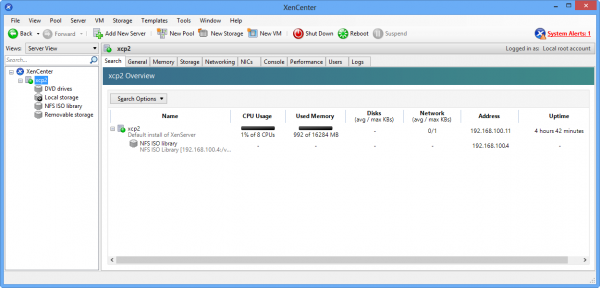

When you are completed your XenCenter should look similar to mine below.

XenCenter Console - ISO Library Added

Adding Virtual Disk Storage

Adding a shared storage repository follows the same process as the ISO library. In the navigation pane on the left, select the host where you want the storage to be created. Then click on the “New Storage” button on the top menu bar.

XenCenter Console - Create SR

XenCenter Console – Create SR

You will be greeted with this screen where you can choose the type of Storage Repository you want. As mentioned before there are two types: Virtual Disk Storage and ISO Library. Only difference this time is we are going to choose NFS VHD. Now if you are using Windows Server 2008R2 for your shared VM storage you can create NFS file share.

XenCenter Console - Create VHD Library

XenCenter Console – Create VHD Library

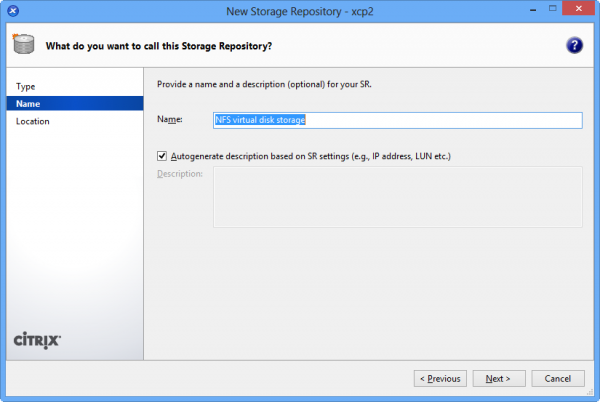

The next screen is the same as we saw when creating our ISO Library, just name your VM SR something that will identify it as storage for your VMs. I have chosen to leave mine at the default name ( NFS virtual disk storage).

XenCenter Console - Name VHD Library

This next and final screen is where we tell XenCenter how to connect to our Storage. You only need to add the share information, no advanced options are required. One minor difference on this screen is that after you add the information, you need to click the Scan button. This will test the connection to your NFS share, as well as scan it for existing SRs. This is useful when there is already an SR present that you may want to attach to a new host(s) or re-attach after maintenance. However, since this is the first time there will nothing there and we can just click “Finish” and your new VM Storage Repository will be created and added to your XCP Host.

XenCenter Console - Connect VHD Library

When you are completed your XenCenter should look similar to mine below.

XenCenter Console - VHD Library Added

XenCenter Console – VHD Library Added

Conclusion

Hopefully this article has helped you get started with XenCenter and you can start using your new XCP setup. Stay tuned for the next installment! We will be creating your first Virtual Machine, Creating a Pool, and Migrating VMs between XCP hosts!


About the Author

Stephen Davis

For my day job I am a management consultant focused on Information Security, designing and implementing security for clients in the Financial Services and Technology sectors. My goal is to help users learn and leverage new technology and platforms that can transform their businesses. If you have comments/questions feel free to join us on the forums; you can find me as, Nitrobass24.
