New Supermicro Quad Intel Xeon E5-4600 LGA2011 MP Motherboards

1
Posted July 30, 2012 by Pieter in Servers

Supermicro has just released a couple of Quad Xeon E5-4600 based motherboards. These boards are behemoth in size, much like quad AMD Opteron G34 motherboards, for obvious reasons. Packing Quad Intel Xeon E5-4600 CPU’s, 32x DDR3 DIMM slots capable of up to 1TB ECC memory and a few expansion slots to boot makes these new Supermicro Quad Intel Xeon motherboards very tightly packed despite their gargantuan size. They have options for built-in LSI SAS2208 RAID controller, Intel X540 Dual 10GbE LAN and  IPMI v2.0. Strangely enough, there are only two PCIe 3.0 x16 and two PCIe 3.0 x8 slots for a total of 48 PCIe lanes from a total of 160 (40×4) available through the CPUs. Clearly Supermicro ran out of space as there are 32 DIMM slots and four large LGA2011 CPU sockets onboard. I can imagine there will be platforms that utilize all of that low-latency PCIe bandwidth but those will likely require riser cards due to space constraints.

I would hate to think how much this motherboard will cost (it will be quite expensive) or the scary thought of putting in 4x Intel Xeon E5-4600 series CPUs which come in at over $3,000 US for a quad core 2.7GHz Intel Xeon E5-4650 flavors, and yes that is over $3,000 each. The list of Cases that this will fit into will also be rather short because generally boards of this size leave little room for power supplies next to the motherboard in a rackmount chassis. For those needing the best in x86 CPU core/thread power right now (in a single system), this platform is going to be hard to beat.

Supermicro has released out the Supermicro X9QR7-TF+ with specs below. The Supermicro X9QRi-F+ is similar but does not include the LSI RAID controller and utilizes 1GbE instead of 10GbE.

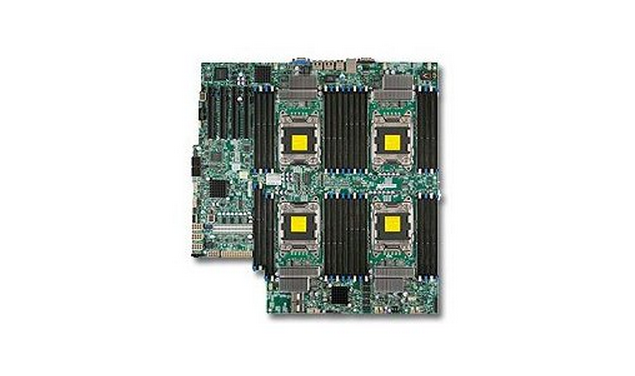

Supermicro X9QR-7TF

Supermicro X9QR-7TF+

Specifications

Physical Stats
Form Factor
  • Proprietary
Dimensions
  • 16.79″ x 16.4″ (42.6cm x 41.7cm)
Processor/Cache
CPU
  • Intel Xeon E5-4600 processor
  • Quad Socket R (LGA 2011)
Cache
  • Up to 20MB
System Bus
  • QPI up to 8 GT/s
System Memory
Memory Capacity
  • 32x 240-pin DDR3 DIMM sockets
  • Supports up to 1TB DDR3 ECC Registered memory (RDIMM) in 32 DIMM sockets
Memory Type
  • 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage
  • 1.5 V, 1.35 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C602 chipset
SATA
  • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
  • SATA 3.0 6Gbps with RAID 0, 1, 5, 10
SAS
  • SAS2 (6Gbps) via LSI® 2208 controller
  • HW RAID 0, 1, 5, 6, 10, 50, 60 support
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Nuvoton WPCM450 BMC
Network Controllers
  • Intel® X540 Dual Port 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL9001F PHY (dedicated IPMI)
Graphics
  • Matrox G200eW
Super I/O
  • Nuvoton W83527HG
Input / Output
SATA
  • 2x SATA 3.0 ports (6Gbps)
  • 4x SATA 2.0 ports (3Gbps)
SAS
  • 8x SAS2 ports (6Gbps)
LAN
  • 2x RJ45 10GBase-T ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 8x USB 2.0 ports total (4 rear + 3 front + 1 Type A)
Video
  • 1x VGA port
Serial Port / Header
  • 2x Fast UART 16550 ports: 1 rear and 1 header
DOM
  • 1 DOM (Disk on Module) power connector
Expansion Slots
PCI-Express
  • 2x PCI-E 3.0 x16 slots
  • 2x PCI-E 3.0 x8 slots

About the Author

Pieter

Pieter is perhaps best known as the one behind laptopvideo2go.com. He has been a regular contributor in the STH forums and has been detailing his learning, specifically in the area of LSI controllers on STH. He is quickly becoming the resident LSI controller guru.

One Comment


  1.
    dba

    That’s an impressive motherboard! Four CPUs, built-in 10GbE, built-in LSI RAID – who could ask for more? Me, it turns out. For my needs there are far too few PCIe slots and too few RAM slots – not that there is any real estate left on that enormous board to add them. 1TB of RAM really isn’t that much memory for such a massive amount of processing power and it would be difficult to push enough database IO through a mere four PCIe slots to keep those four CPUs busy.
