2.5″ Drives in 3.5″ Hot-Swap Drive Bays – Two Good and Three Bad Drive Adapter Options

8

This has probably happened to all of us at one time or another: You are trying to add a 2.5″ hard drive or SSD to a server, but the only available space is a 3.5″ hot-swap disk bay. The solution, of course, is to use some sort of drive adapter, but you’ll need to be careful about what you buy. Tens of thousands of people before you have been overwhelmed by the number of possible solutions and then frustrated when they ended up buying the wrong one. I’m here to tell you which options actually work, and to steer you away from a few tempting options that do not.

If you are short on time, then here is the abbreviated version: For a universal solution, buy an IcyDock drive converter or a Western Digital IcePack, and consider a Supermicro adapter caddy if you have a Supermicro chassis and need a new caddy anyway. Now for the long version with more details, some of which are important:

Two Good Drive Adapter Options

Option One: The Icy Dock drive converter. Icy Dock offers four different models of drive converter, ranging from around $15 to $40. The two “standard” models are black plastic while the two “Pro” models are aluminum. All are “tool free”, which means that you can swap SSD drives in a few seconds without a screwdriver. Three are SATA-only, while the most expensive Pro model also supports SAS. If money is no object then buy the top model (MB982IP-1S-1) and be done with it. If you know that you’ll never use SAS, then the SATA-only Pro model (MB982IP-1S) will save you a few dollars. I haven’t used the better of the two plastic models (MB882SP-1S-1B) but it has a good reputation among enthusiasts. The plastic might help with vibration if you are adding a non-SSD drive.  I would avoid the cheapest model (MB882SP-1S-2B) because it is not designed to support the new 7mm drives, which are increasingly popular. These Icy Dock drive converters closely emulate the size and shape of a regular 3.5″ drive from an airflow perspective, and in a high density sever with precisely engineered cooling, this could be a big bonus. One nice additinal feature of the pro models: They have enough room inside to store a loose spare drive, for example a cold-swap  mirror of your boot drive or an alternate configuration for a lab computer. I use this feature quite often.

Icy DockProSAS
Icy Dock MB982IP-1S-1 Adaper Tray in a Dell caddy

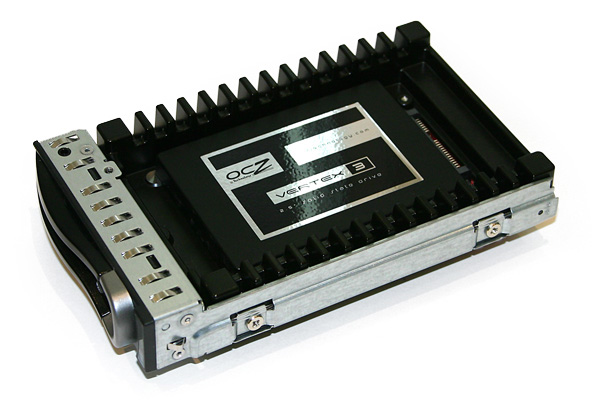

Option Two: The Western Digital IcePack. Originally built as a drive adapter for Western Digital Velociraptor hard drives being used in consumer workstations. This absolutely massive chunk of black painted aluminum does a fantastic job of cradling your drive while also providing lots of cooling – cooling that your SSD drive definitely does not need. These are definitely overbuilt, but they can also be quite cheap – around $15 on eBay. IcePacks closely emulate the size and shape of a regular 3.5″ drive from an airflow perspective, just like the Icy Dock converters. One important note: the screws used in the IcePack are far longer than standard drive screws. If you buy one, make sure that it comes with screws – and then be very careful not to lose them.

IcePack
Western Digital IcePack Adapter Tray in a Dell caddy

Notable Alternatives

If you have a Norco or Supermicro chassis then you have other options that are worth considering.

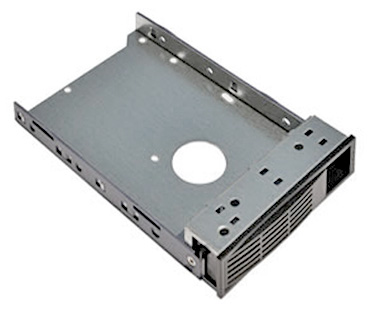

The Norco disk caddy. If you have a Norco chassis, then you are in luck. Your 3.5″ drive trays with solid metal bottoms are pre-drilled with properly aligned mounting holes for 2.5″ drives, saving you around $15 per drive bay. Someone at Norco deserves an award for this simple but thoughtful design touch. Note this is not the B-D2T3 adapter which fits two 2.5″ disks in a 3.5″ mounting spot.

Norco_tray
Standard Norco Drive Caddy

The Supermicro adapter caddy. If you have a Supermicro chassis, you have the option of forking over $8 to $20 for a special replacement drive caddy – the part number is MCP-220-00043-0N. It looks like a normal 3.5″ Supermicro disk caddy, but has built-in mount points for 2.5″ drives – mount points that are permanent and prevent the caddy from working with 3.5″ drives. These Supermicro-only caddies block almost no airflow, which shouldn’t be an issue unless you have a quad CPU or Twin model server. If the photo below looks odd, that’s because it’s upside down. These unusual caddies insert with the metal plate facing “up” in order to properly align the drive.

SMAdapterCaddy
Supermicro Drive Adapter Caddy

Three Poor Drive Adapter Options

There are also a number of options that will not work – and unfortunately they are very popular and very cheap, often pushing the good solutions “below the fold” in a Google search:

The Dell drive adapter, part numbers 9W8C4 and Y004G. This is a simple stamped metal bracket that sells for around $10-$15. The concept is sound, and the design is pleasantly minimal, requiring no special screws. On the downside, these are flawed. First, as you can see in the photo, the right rear screw hole does not line up properly. Also, the drive ends up positioned just a few millimeters further rearward than it should be, which means that the connection to the backplane is right on the ragged edge of reliable.

Dell Adapter
Dell Drive Adapter tray in a Dell caddy

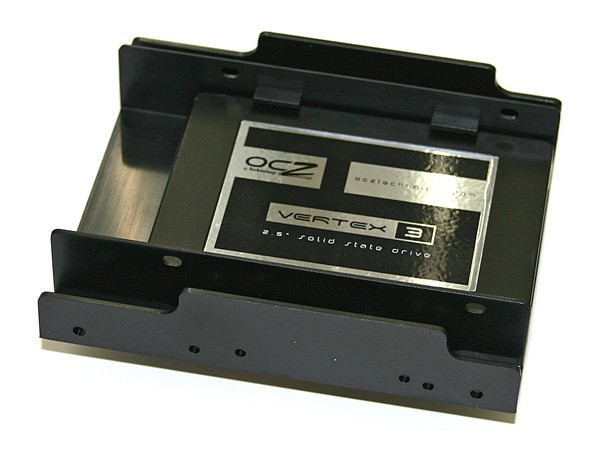

Plastic adapter trays. Your local computer store, and every single e-Commerce vendor in the world, would love to sell you a $3 to $8 plastic insert tray that holds one or two 2.5″ drives in a 3.5″ bay. Do not be tempted. These work perfectly well in a standard computer case, but not at all in hot-swap bays. The issue is simple: These trays center the drives nicely in the 3.5″ bay, which is exactly the wrong alignment for a hot-swap backplane. All of the recommended adapters properly position the SATA port at the lower corner.

PlasticBracket
Plastic Drive Tray

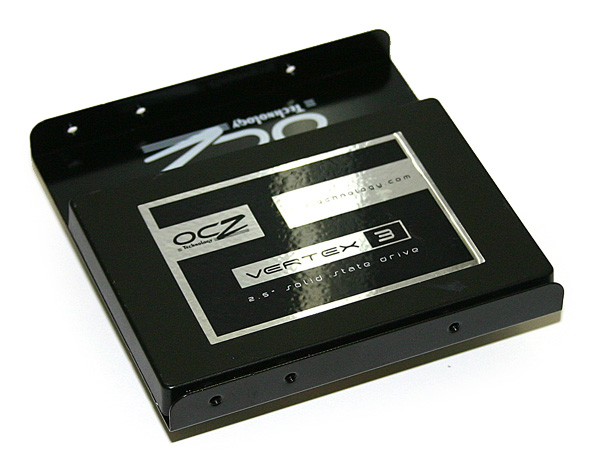

Metal trays from your SSD drive box. Your OCZ (or Corsair, or other brand) SSD “kit” may have included a nice looking drive adapter tray. Attach your SSD to this thin metal tray and it’ll look as though the SATA port is perfectly aligned for a hot-swap bay. It is not, and I really don’t recommend trying to force it. These trays, like the plastic ones, were designed for free-standing drive bays, not hot-swap drive caddies. They position the drive just a few millimeters too high and to the side. Patrick recently shared his experiences with these 2.5″ to 3.5″ adapters.

OCZ Tray
OCZ Drive Adapter Tray

Share Your Experiences

If I missed any good drive adapter options, or if you want to share your good or bad drive adapter experiences, use the comments section below.

8 COMMENTS

  1. I stumbled onto another option: Newer Technology’s AdaptaDrive. It’s a riff on the WesterDigital IcePack, but without the heatsink function. Like the IcePack, it uses using a small circuit board to shift the SATA connector to the right position. Unfortunately, it costs $20, which is actually more than the IcePack currently costs on eBay.

  2. Exactly what I’m loking for! This website is definitively awsome!

    I am exactly in this scenario with a Corsair M5P SSD : “Metal trays from your SSD drive box”

    Thanks

  3. Great article!
    Unfortunately, I can’t find an IcePack at a cheap price (much higher than $15 :-/ ). Anyway, I’ve ordered from ebay an adapter like this one. hopefully it’ll work.

  4. Not sure how universally compatible (if at all) this part is, but I found an adapter (apparently marketed by Dell or Dell partner?) that will allow you to install 2.5″ drives in 3.5″ drive caddies/trays. It’s designed to avoid offsetting the drive on one side. The part can be found by various part numbers, including:

    9W8C4
    Y004G
    A7129551

    Best price I could find was $7.19 including shipping: http://www.ebay.com/itm/171189920263

    Based on NewEgg’s listing for this item, it is compatible with Dell caddy/tray part numbers:

    F238F
    G302D
    X968D

    I may be missing something (I haven’t yet tried this adapter), but it appears the screw holes in the adapter are set for standard drive mounting distances. It seems this adapter would work with more Dell (and possibly HP, etc) server drive trays/caddies…?

  5. If you can find it, the Chenbro 84H533510-012 may be a good choice. It worked with an Intel AXX6DRV3G/AXX4DRV3G and an X-25E anyway.

    I picked up one through my company. We haven’t bought them in over a year, but we were paying ~$5 at the time. I found them listed for $2.50 at http://www.kernelsoftware.com/products/catalog/chenbro.html but I don’t know about accuracy, minimums, shipping costs, etc.

  6. I’d recommend the newertech adaptadrive, they’re solid metal, align perfectly with a 3.5 inch drive but are very slimline to not obstruct the airflow.
    I’ve found they align well with the slots in teh hp microservers and now I’m using them in a Dell t20 (which doesn’t need the alignment). Solid product.

  7. I’m not sure if the issue with the Dell adapter was an installation mistake, faulty backplane alignment, or an issue with a specific tray, but obviously something is off here. I’ve used the 9W8C4 with both Dell ~gen 11 drive trays and the current iteration of Supermicro drive trays, and it works just fine.

    Though in both cases the trays have holes for mounting a 2.5″ drive on the right side. I suppose if you were to try using the Dell drive adapter with a tray that only has 3.5″-standard holes then it wouldn’t line up at all. But it would be off both vertically and horizontally, so it shouldn’t be able to plug into the backplane at all.

    But since the Dell bracket forces the 2.5″ drive to be mounted directly to the tray on that one side, it’s improbable that it could ever fit poorly if the tray was designed with that in mind.
